Freedompro LB0104-D Kurzanleitung

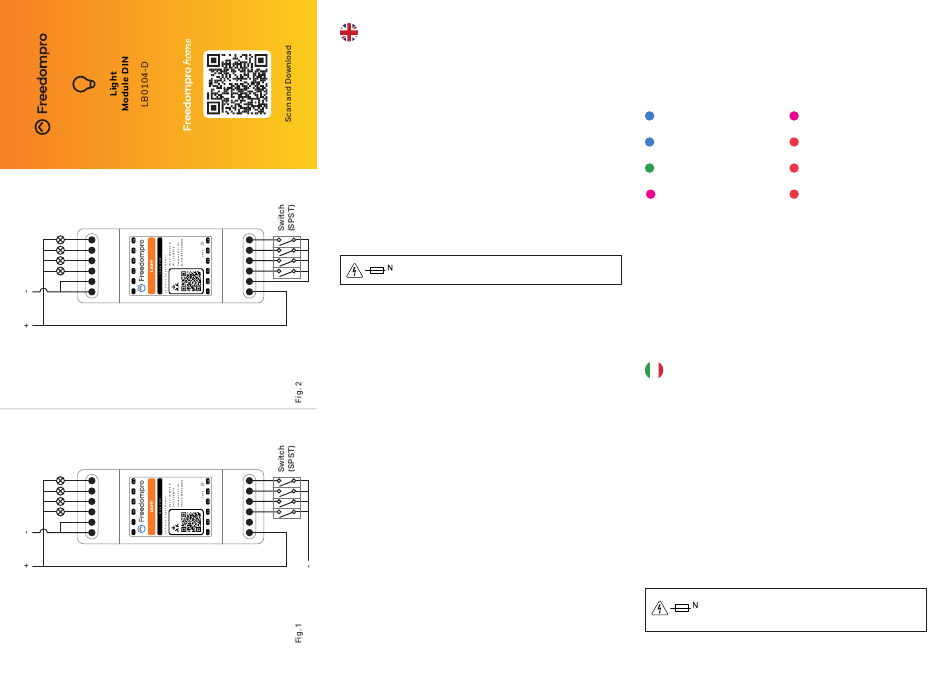

Caution! Read carefully before use. Strictly follow the illustrated wiring
diagram.
Caution! Devices wired to the output channels must be powered with the
same voltage as the Module.
LEGEND
O1: Load circuit output terminal 1
O2: Load circuit output terminal 2
O3: Load circuit output terminal 3
O4: Load circuit output terminal 4
S1: Command line input terminal O1
S2: Command line input terminal O2
S3: Command line input terminal O3
S4: Command line input terminal O4
SC: Common switch output terminal
-: Negative terminals (12-24 V DC)
+: Positive terminal (12-24 V DC)
NEUTRAL FUSING
Disconnect power before servicing.
Caution!
• Danger of electrocution! We recommend having the Module installed
by a qualified electrician.
• Danger of electrocution! Be sure to power down the electrical system
before making changes to the wiring.
• Install the Module in a protected and dry environment inside the building.
• Do not connect devices to the Module that exceed the maximum load
indicated.
• Only install the Module on power grids and devices that comply with
applicable standards.
• A short-circuit in the mains supply or in a device wired to the Module
may damage it.
• Only wire the Module as indicated in this manual. Any other method
may cause damage and void the warranty.
• The Module can be wired with heat-resistant (not less than 105 °C)
18-12 AWG solid-core cables.
INSTALLATION
1 Disconnect the power supply to the electrical system.
2 Place the Module in the flush-mounted box, behind the sockets or wall
switches.
3 Connect loads to the output terminals, as shown in the diagrams.
4 Connect the lines to the input terminals, as shown in the diagrams.
5 Provide power to the Module, as indicated in the diagrams.
6 Be sure the Module is correctly wired and turn back on the power to the
electrical system.
7 Download the Freedompro Home app and follow the pairing steps.
TECHNICAL SPECIFICATIONS
• Power Supply: 12-24 V +20% -15% DC
• Max load: 20 A, max. 5 A per channel
• Wi-Fi protocol: IEEE 802.11 b/g/n
• Radio output power: <20 dBm
• Radio band: 2402-2484 MHz
• Dimension (HxWxL): 41.5 x 42.3 x 18 mm
• Working temperature: -20 °C to +45 °C
• Operational range: up to 50 m outdoors; up to 30 m indoors
• Electrical consumption: < 0.1 W
STATUS LED
Solid blue Flashing magenta
System ready No Wi-Fi connection
Flashing blue Steady red
Pairing mode System starting up
Flashing green Flashing red
Identification Error
Steady magenta Fast flashing red
No internet connection Factory reset
Hereby, Freedompro S.r.l. declares that all module and bridge-type
radio devices comply with the EU Directive 2014/53/EU. The full text of
the EU Declaration of Conformity is available at the following address:
freedompro.eu/pages/cert
Freedompro is not liable for any failures or malfunctions caused by non-
compliance with the operating and safety instructions in this guide.
For more information, please visit: help.freedompro.eu
Freedompro S.r.l. Tel.: +0362 281882
Via delle Roveri, 20813, E-mail: support@freedompro.eu
Bovisio Masciago (MB), Italy Web: freedompro.eu
Attenzione! Leggere attentamente prima dell'uso. Attenersi allo schema
di collegamento illustrato.
Attenzione! I dispositivi collegati ai canali di uscita devono essere
alimentati con la stessa tensione del Modulo.
LEGENDA
O1: Terminale di uscita del circuito di carico 1
O2: Terminale di uscita del circuito di carico 2
O3: Terminale di uscita del circuito di carico 3
O4: Terminale di uscita del circuito di carico 4
S1: Terminale di ingresso della linea di comando O1
S2: Terminale di ingresso della linea di comando O2
S3: Terminale di ingresso della linea di comando O3
S4: Terminale di ingresso della linea di comando O4
SC: Terminale comune di uscita dell'interruttore
-:
Terminali negativi (12-24 V DC)
+: Terminale positivo (12-24 V DC)
FUSIBILE SUL NEUTRO
Disconnettere l'alimentazione prima di effettuare
interventi di manutenzione.
