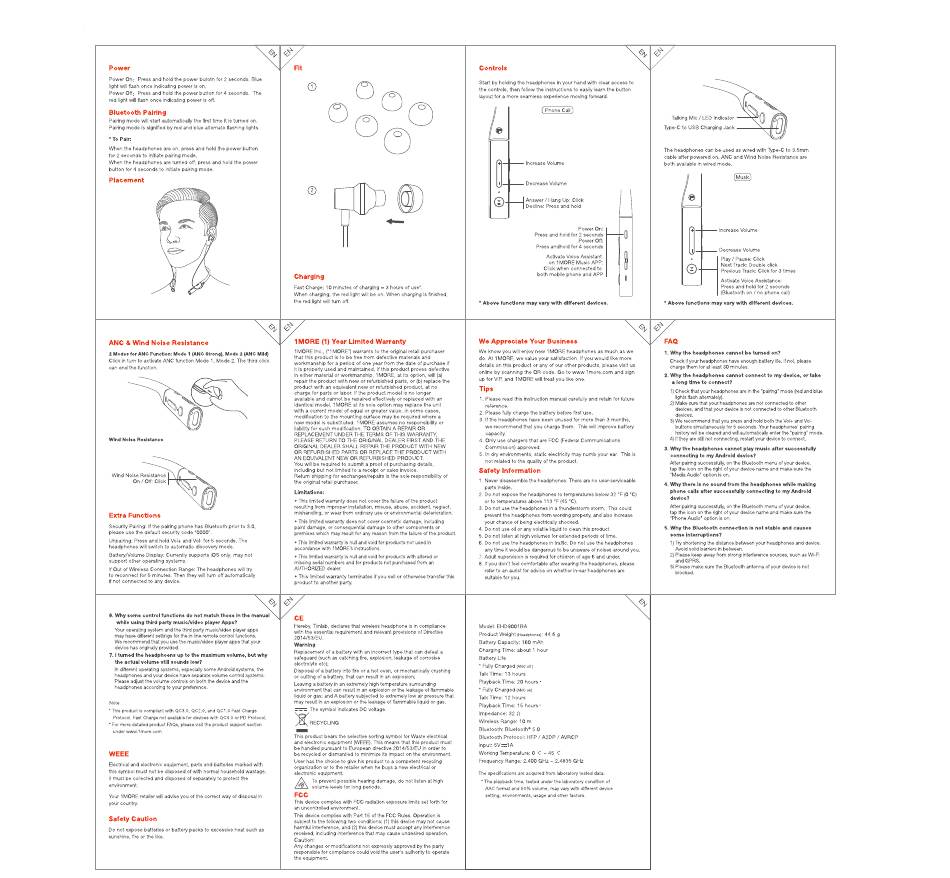

1More Dual Driver ANC Pro Benutzerhandbuch Seite 2

Power
Power On: Press and hold the power butotn for 2 seconds Blue
light will flash once indicating power is on
Power Off: Press and hold the power button for 4 seconds
The
red light will flash once indicating power is off.
Bluetooth Pairing
Pairing mode will start automatically the first time it is turned on
Pairing mode is signified by red and blue alternate flashing lights
* To pair:
When the headphones are on, press and hold the power button
for 2 seconds to initiate pairing mode
When the headphones are turned off, press and hold the power
button for 4 seconds to initiate pairing mode
Placement
ANC & Wind Noise Resistance
2 Modes for ANC Function: Mode 1 (ANC Strong), Mode 2 (ANC Mild)
Click in turn to activate ANC function Mode 1 , Mode 2 The third click
can end the function
Wind Noise Resistance
Wind Noise Resistance
On / Off: Click
Extra Functions
Security Pairing: If the pairing phone has Bluetooth prior to 3 0,
please use the default security code "0000"
Unpairing: Press and hold Vol+ and VoI for 5 seconds. The
headphones will switch to automatic discovery mode
Display: Currently supports iOS only; may not
support Other operating systems
If Out of Wireless Connection Range: The headphones will try
to reconnect for 5 minutes. Then they will turn off automatically
if not connected to any device
6. Why some control functions do not match those in the manual
while using third party music/video player Apps?
Your operating system and the third party music/video player apps
may have different settings for the in-line remote control functions
We recommend that you use the musicAideo player apps that your
device has originally provided
7. I tumed the headphoens up to the maximum volume, but why
the actual volume still sounds low?
In different operating systems, especial y some Android systems, the
headphones and your device have separate volume control systems
Please adjust the volume controls on both the device and the
headphones according to your preference
Note:
This product is compliant with OC3 0, OC2.O, and OCI .OFast Charge
protocol Fast Charge not availablefor devices with QC4 0 or PD protoco
• For more detailed product FAQs, please visit the product support section
under wvv.'l. 1 more com
WEEE
Electrical and electronic equipment, parts and batteries marked with
this symbol must not be disposed of with normal household wastage,
it must be collected and disposed of separately to protect the
environment
Your 1MORE retailer will advise you of the correct way of disposal in
your country
Safety Caution
Do not expose batteries or battery packs to excessive heat such as
sunshine, fire or the like
Fit
O
Charging
Fast Charge: 10 minutes of charging = 3 hours of use'
When charging, the red light will be on. When charging is finished,
the red light will turn Off
IMORE (1) Year Limited Warranty
1MORE lnc ("1MORE")warrants to the original retail purchaser
that this product is to be free from defective materials and
workmanship for a period Of one year from the date Of purchase if
it is properly used and maintained If this product proves defective
in either material Or workmanship, IMORE, at its option, will (a)
repair the product with new or refurbished parts, or (b) replace the
product with an equivalent new or refurbished product, at no
charge for parts Or labor If the product model is no longer
available and cannot be repaired effectively Or replaced with an
identical model, IMORE at its sole option may replace the unit
with a current model Of equal Or greater value In some cases,
modification to the mounting surface may be required where a
new model is substituted 1MORE assumes no responsibility Or
liability for such modification TO OBTAIN A REPAIR OR
REPLACEMENT UNDER THE TERMS OF THIS WARRANTY,
PLEASE RETURN TO THE ORIGINAL DEALER FIRST AND THE
ORIGINAL DEALER SHALL REPAIR THE PRODUCT WITH NEW
OR REFURBISHED PARTS OR REPLACE THE PRODUCT WITH
AN EQUIVALENT NEW OR REFURBISHED PRODUCT
You will be required to submit a proof Ofpurchasing details,
including but not limited to a receipt Or sales invoice
Return shipping for exchanges/repairs is the sole responsibility Of
the Original retail purchaser.
Limitations:
• This limited warranty does not cover the failure Of the product
resulting from improper installation, misuse, abuse, accident, neglect,
mishandling, Or wear from ordinary use or environmental deterioration
• This limited warranty does not cover cosmetic damage, including
paint damage, or consequential damage to other components or
premises which may result far any reason from the failure of the product
• This limited warranty is null and void for products not used in
accordance wth IMORE's instructions
• This limited warranty is null and void for products wth altered or
missing serial numbers and for products not purchased from an
AUTHOR ZED dealer.
• This limited warranty terminates if you sell Or otherwise transfer this
product to another party.
CE
Hereby, Tiinlab, declares that wireless headphone is in compliance
with the essential requirement and relevant provisions of Directive
2014/53,'EU
Warning
Replacement Of a battery with an incorrect type that can defeat a
safeguard (such as catching fire, explosion, leakage Of corrosive
electrolyte etc);
DisposalOfa battery into fire or a hot oven, or mechanicallycrushing
Or cutting Of a battery, that can result in an explosion;
Leaving a battery in an extremely high temperature surrounding
environment that can result in an explosion or the leakage of flammable
liquid or gas; and A battery subjected to extremely low air pressure that
may resut in an explosion or the eakage of flammable liquid or gas
The syrnbol indicates DC voltage
RECYCLING
This product bears the selective sorting symbol for Waste electrical
and electronic equipment WEEE)_ This means that this product must
be handled pursuant to European directive 2014/53/ElJ in Order to
be recycled Or dismantled to minimize its impact on the environment
L.lserhas the choice to give his product to a competent recycling
organization or to the retailer when he buys a new electrical or
electronic equipment.
TOprevent possible hearing damage, do not listen at high
volume levels for long periods
FCC
This device complies with FCC radiation exposure limits set forth for
an uncontrolled environment
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation
Caution!
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment
Controls
Start by holding the headphones in your hand with clear access to
the controls, then follow the instructions to easily learn the button
layout for a more seamless experience moving forward
Phone Cal
Increase Volume
Decrease Volume
Answer / Hang Up: Click
Decline: Press and hold
Power On.
Press and hold for 2 seconds
Power Off:
Press andhold for 4 seconds
Activate Voice Assistant
on WORE Music APR:
Click when connected to
both mobile phone and APP
* Above functions may vary with different devices.
We Appreciate Your Business
We know you will enjoy new 1MORE headphones as much as we
do. At 1MORE, we value your satisfaction. If you would like more
details on this product or any of our other products, please visit us
online by scanning the QR code GOto vvn.'vw 1 more.com and sign
up tor VIP, and 1MORE will treat you like one
Tips
Please read this instruction manual carefully and retain for future
reference
2 Please fully charge the battery before first use
3 If the headphones have been unused for more than months,
we recommend that you charge them. This will improve battery
capacity.
4 Only use chargers that are FCC (FederalCommunications
Commission) approved
5 n dry environments, static electricity may numb your ear This is
not related to the quality Of the product
Safety Information
Never disassemble the headphones There are no
parts inside
2 Do not expose the headphones to temperatures below 32 OF(O'C)
or to temperatures above 113 OF(45 oc)
DO not use the headphones in a thunderstorm storm This could
3
prevent the headphones from working properly, and also increase
your chance of being electrically shocked
DO not use Oil or any volatile liquid to clean this product
4
5 Do not listen at high volumes for extended periods ot time
6 Do not use the headphones in traffic. Do not use the headphones
any time it would be dangerous to be unaware Of noises around you
7 Adult supervision is required for children of age 6 and under.
8. If you don't feel comfortable after wearing the headphones, please
refer to an aurist for advice on whether in-ear headphones are
suitable for you
Model: BA
Product Weight (Headphones): 44 6 g
Battery Capacity: 160 mAh
Charging Time: about 1 hour
Battery Life
Fully Charged i,ANC off)
Talk Time: 13 hours
Playback Time: 20 hours •
Fully Charged (ANC on)
Talk Time: 12 hours
Playback Time: 15 hours •
Impedance: 32 Q
Wireless Range: 10 m
Bluetooth: Bluetooth' 5 0
Bluetooth Protocol: HFP / A2DP / AVRCP
Input: 5V=z1A
Working Temperature: O C —45 C
Frequency Range: 2 400 GHz - 2 4835 GHz
The specifications are acquired from laboratory tested data
The playback time, tested under the laboratory condition of
AAC format and 50% volume, may.' v ary with different device
setting, environments, usage and other factors
Talking Mic / LED Indicator
Type-C to USB Charging Jack
The headphones can be used as wired with Type-C to 3 5mm
cabe after powered on. ANC and Wind Noise Resistance are
both available in wired mode
Music
Increase Volume
Decrease Volume
Play / Pause: Click
Next Track: Double click
Previous Track: Click for 3 times
Activate Voice Assistance:
Press and hold for 2 seconds
(Bluetooth on / no phone call)
* Above functions may vary with different devices.
FAQ
Why the headphones cannot be tumed on?
Check if your headphones have enough battery ife If not, please
charge them for at least 30 minutes.
2. Why the headphones cannot connect to my device, or take
a long time to connect?
1) Check that your headphones ate in the "pairing' mode (red and blue
lights flash alternately).
2) Make sure that your headphones ate not connected to other
devices, and that your device is not connected to other Bluetooth
devices.
3) We recommend that you press and hold both the Vol+ and VoI
buttons simultaneously for 5 seconds Your headphones' pairing
history WII be cleared and will automatica ly enter the "pairing" mode
4) Ifthey are still not connecting, restart your device to connect
3. Why the headphones cannot play music after successfully
connecting to my Android device?
After pairing successfu ly, on the Bluetooth menu of your device,
tap the icon on the right of your device name and make sure the
"Media Audio• option is on
4. Why there is no sound from the headphones while making
phone calls after successfully connecting to my Android
device?
After pairing successfu ly, on the Bluetooth rnenu Ofyour device,
tap the eon on the right Ofyour device name and make sure the
"Phone Audio" option is on
5. Why the Bluetooth connection is not stable and causes
some interruptions?
1) Try shortening the distance between your headphones and device.
Avoid solid baniers in betvzeen
2) Please keep away from strong interference sources, such as Wi-Fi
and GPRS
3) Please make sure the Bluetooth antenna of your device is not
blocked
