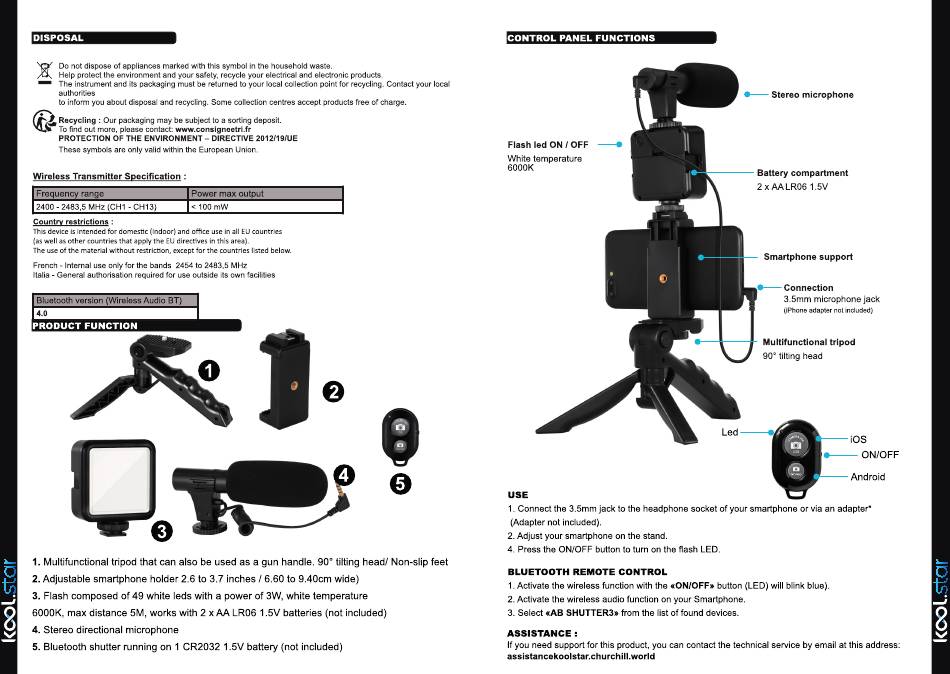

KOOL STAR Pack Video Benutzerhandbuch Seite 4

DISPOSAL
Do not dispose of appliances marked with this symbol in the household waste
Help protect the environment and your safety, recycle your electrical and electronic products.
The instrument and its packaging must be returned to your local collection point for recycling. Contact your local
authorities
to inform you about disposa and recycling. Some collection centres accept products free of charge.
Recycling : Our packaging may be subject to a sorting deposit
To find out more, please contact: www.consigneetri.fr
PROTECTION OF THE ENVIRONMENT - DIRECTIVE
These symbols are only valid within the European Union
Wireless Transmitter Specification :
Frequency range Power max output
2400 - 2483,5 MHz (CHI - CHI 3) < 100
Country restrictions :
This device is intended for domestic (indoor) and office use in all EU countries
(aswell as Other countries that apply the EU directives in this area).
The use of the material without restriction, except for the countries
French Internal use only for the bands 2454 to 2483,5 MHz
Italia - General authorisation required for use outside its own facilities
Bluetooth version (Wireless Audio BT
4.0
PRODUCT FUNCTION
1. Multifunctional tripod that can also be used as a gun handle. 900 tilting head/ Non-slip feet
2. Adjustable smartphone holder 2 6 to 3 7 inches / 6 60 to 9 40cm wide)
3. Flash composed of 49 white leds with a power of 3W, white temperature
6000K, max distance 5M, works with 2 xAA LR06 1 5V batteries (not included)
4. Stereo directional microphone
5. Bluetooth shutter running on 1 CR2032 1 5V battery (not included)
20121191UE
mw
listed below.
CONTROL PANEL FUNCTIONS
1
Flash led ON 1 OFF
White temperature
6000K
USE
1 Connect the 3 5mm jack to the headphone socket of your smartphone or via an adapter*
(Adapter not included)
2. Adjust your smartphone on the stand
4. Press the ON/OFF button to turn on the flash
BLUETOOTH REMOTE CONTROL
1. Activate the wireless function with the «ON/OFF» button (LED) will blink blue)
2. Activate the wireless audio function on your Smartphone.
3. Select «AB SHUTTER3» from the list of found
ASSISTANCE :
If you need support for this product, you can contact the technical service by email at this address:
assistancekoolstar.churchill.world
Stereo microphone
Battery compartment
2 x AALR06 1 5V
Smartphone support
Connection
3.5mm microphone jack
(iPhone adapter not included)
Multifunctional tripod
900 tilting head
Led
iOS
ON/OFF
Android
LED
devices
