Cleaning And Maintenance - Eldom Pg22 Bedienungsanleitung

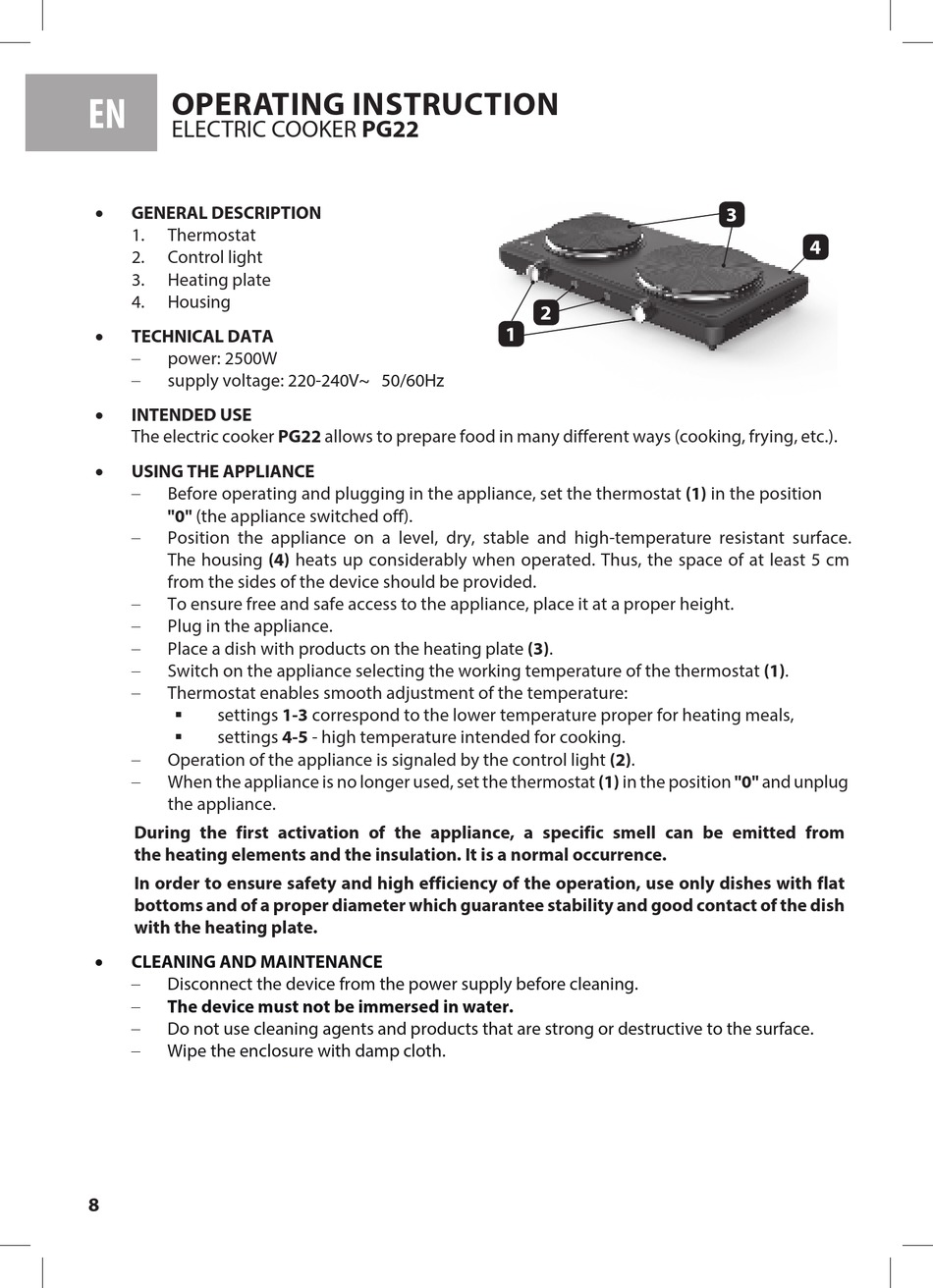

OPERATING INSTRUCTION
EN
ELECTRIC COOKER PG22
•
GENERAL DESCRIPTION
1.
Thermostat
2.
Control light
3.
Heating plate
4.
Housing
•
TECHNICAL DATA
−
power: 2500W
−
supply voltage:
•
INTENDED USE
The electric cooker PG22 allows to prepare food in many different ways (cooking, frying, etc.).
•
USING THE APPLIANCE
−
Before operating and plugging in the appliance, set the thermostat (1) in the position
"0" (the appliance switched off).
−
Position the appliance on a level, dry, stable and high-temperature resistant surface.
The housing (4) heats up considerably when operated. Thus, the space of at least 5 cm
from the sides of the device should be provided.
−
To ensure free and safe access to the appliance, place it at a proper height.
−
Plug in the appliance.
−
Place a dish with products on the heating plate (3).
−
Switch on the appliance selecting the working temperature of the thermostat (1).
−
Thermostat enables smooth adjustment of the temperature:

settings 1-3 correspond to the lower temperature proper for heating meals,

settings 4-5 - high temperature intended for cooking.
−
Operation of the appliance is signaled by the control light (2).
−
When the appliance is no longer used, set the thermostat (1) in the position "0" and unplug
the appliance.
During the first activation of the appliance, a specific smell can be emitted from
the heating elements and the insulation. It is a normal occurrence.
In order to ensure safety and high efficiency of the operation, use only dishes with flat
bottoms and of a proper diameter which guarantee stability and good contact of the dish
with the heating plate.
•

CLEANING AND MAINTENANCE

−
Disconnect the device from the power supply before cleaning.
−
The device must not be immersed in water.
−
Do not use cleaning agents and products that are strong or destructive to the surface.
−
Wipe the enclosure with damp cloth.
8
220-240V~ 50/60Hz
2
1
3
4
