TRANSMITTER ASSEMBLY

Remove the battery compartment cover (10) by applying
slight pressure and at the same time sliding it in the
direction of the arrow.
Place the batteries (3x AAA alkaline) in correct pole direction
into the window transmitter. Close the battery compartment
cover correctly.
1. Mount the window transmitter (2) with reed contact
(2a) at the top window frame on the window to be mo-
nitored. Use the included packer parts (U) if the height
needs adjustment. Decide on the mounting location
and clean the adhesion surfaces. Mount the window
transmitter and the corresponding reed contact at the
chosen location using the included double-sided adhesive
pad. Please ensure that the individual components are
attached securely and correctly.
2. Then attach the magnet casing (3) on the window leaf
at the correct location using the included double-sided
adhesive pad.
m 2 0,2
cm 2 2000
5 cm 199
6 cm 246
7 cm 294
8 cm 342
9 cm
389
10 cm 437
11 cm
485
12 cm
532
AS-500_I-Manual_150x180_Fin4.indd 13
0,3 0,4 0,5 0,6
3000 4000 5000 6000 7000
252 297 337 373
311 365 413 456
369 432 488 538
427 500 563 621
486 567 639 704
544 635 714 786
603 702 790 869
1031
661 770 865 951
Important! The distance between the reed contact and the
magnet casing must be less than 7 mm.
3. Insert the magnet and close the compartment using the
upper part of the casing.
Please ensure that the individual components are attached
securely and correctly. Replace the batteries immediately if
the battery LED (9) on the transmitter illuminates.

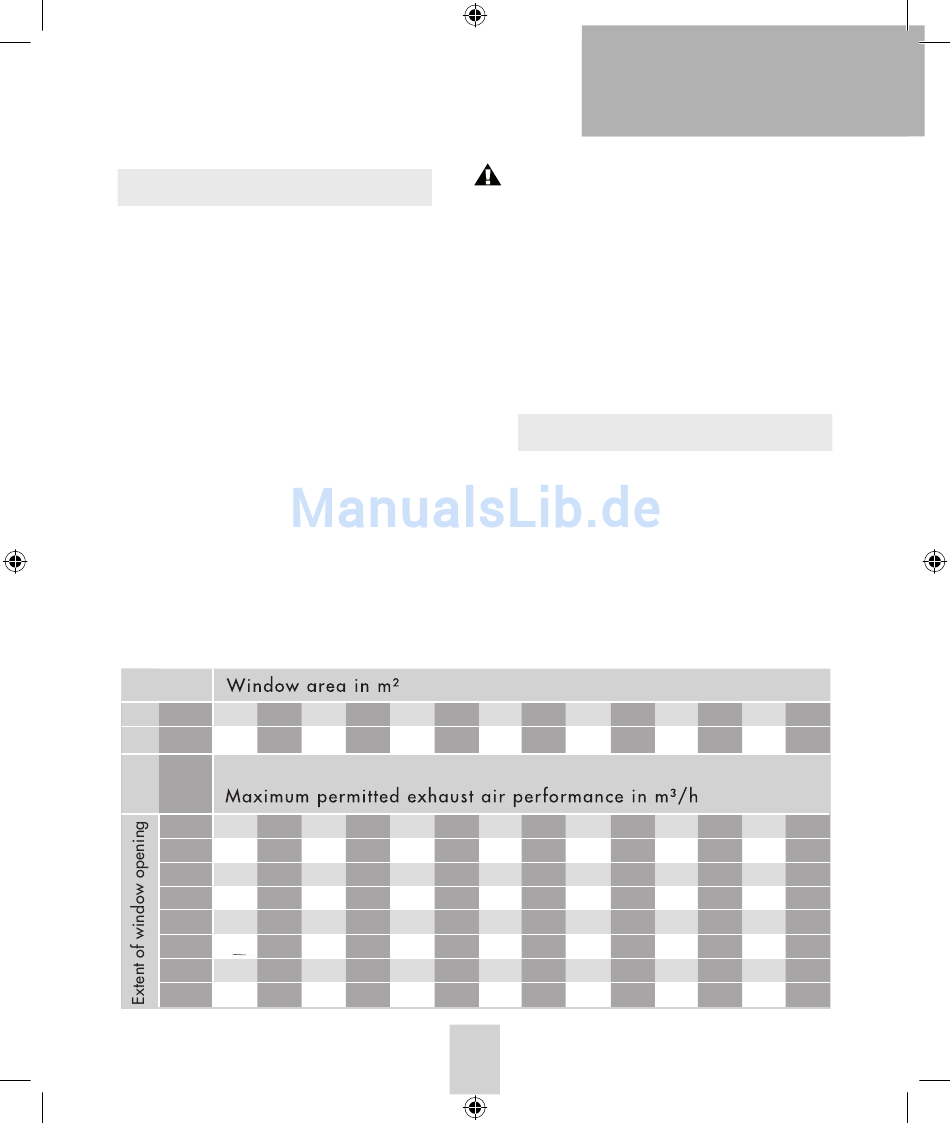

MINIMUM OPENING ON WINDOW
This is determined by:
a. The throughput of the air extraction device in m³/h
b. The size of the window to be opened in m²
c. The size of the gap at the window in cm (see Table 1)
Calculation table to determine the minimum
opening of your window (Table 1)
1,1
0,7 0,8 0,9 1
8000 9000 10000 11000
406 437 466 493 519
495 532 567 600 631
585 628 668 707 743
674 723 770 813 855
763 819 871 920 967
852 914 972 1027 1079
1191
942 1009 1073 1133
1105 1174 1240 1302
13
