D60
Quick Start Manual
Please read these instructions carefully before attempting to assemble, install, operate or maintain the product. Protect yourself and
others by observing all safety information. Failure to do so could result in personal injury and/or damage to property. Retain these
instructions for future reference.
For D6x models
Safety Guidelines
Please read and follow the accompanying
Safety Instructions before continuing.
The equipment must be used in the manner specified by the
manufacturer otherwise the safety protection provided by the
equipment may be reduced.
General Specifications
Min recommended air supply:
Max air supply:
Max operating pressure:
Min operating pressure:
Display resolution:
Max outlet hose length:
Max permissible error (MPE):
Voltage:
Power:
IP rating:
Operating temperature range:
Max weight:
Installation
Please ensure all safety information is visible to the
operator.
The product should be mounted using the front panel holes or the
rear mounting brackets provided. The product should be secured
using all 4 mounting points. Take care when using the rear
mounting brackets to ensure the backets are firmly fitted to the
unit. Mounting diagrams are provided overleaf.
Electrical supply
For safe operation the equipment should to be connected to an
approved disconnect device such as a mains isolator or switched
spur that is correctly rated according to local national standards
and regulations. The unit must be earthed and protected with a
HBC type F fuse or circuit breaker rated at 3 A and approved and
rated according to local national standards and regulations. The
disconnect device must be marked as the disconnecting device for
the equipment, it must be located close to the equipment and be
accessible at all times.
76520 Issue 5
0.7 bar above the max target
pressure
between 16 and 25 bar
(see product rating label)
between 5.5 and 16 bar
(see product rating label)
0.3 bar
0.1 bar
20m
0.08 bar
see product rating label
see product rating label
IP44
-10 °C to +55 °C
2.9 kg
www.pclairtechnology.com

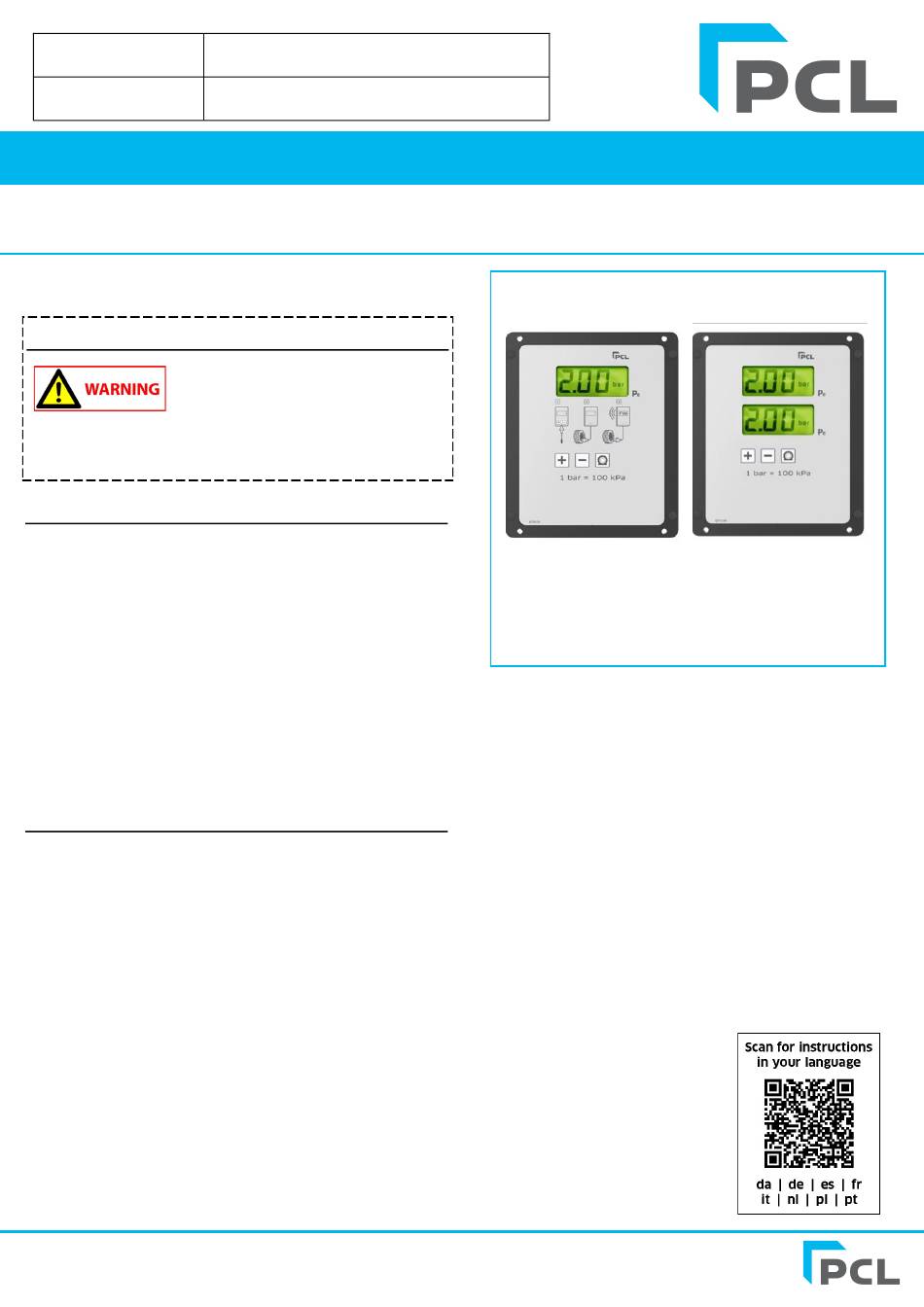

Image shown is PCL standard decal.
Actual decal may vary by individual part number.
Air supply
Ensure the air supply is filtered and dry. This will minimise the
accumulation of dirt and water in the inflator line filters.
For efficient tyre inflation, ensure that the air supply is at least 10
psi / 0.7 bar above the intended maximum target pressure.
It is recommended that when tightening any hose connections to
the unit, the user selects two spanners. Hold the filter housing with
one spanner, to ensure it does not spin, then tighten the hose
connection with the other spanner.
