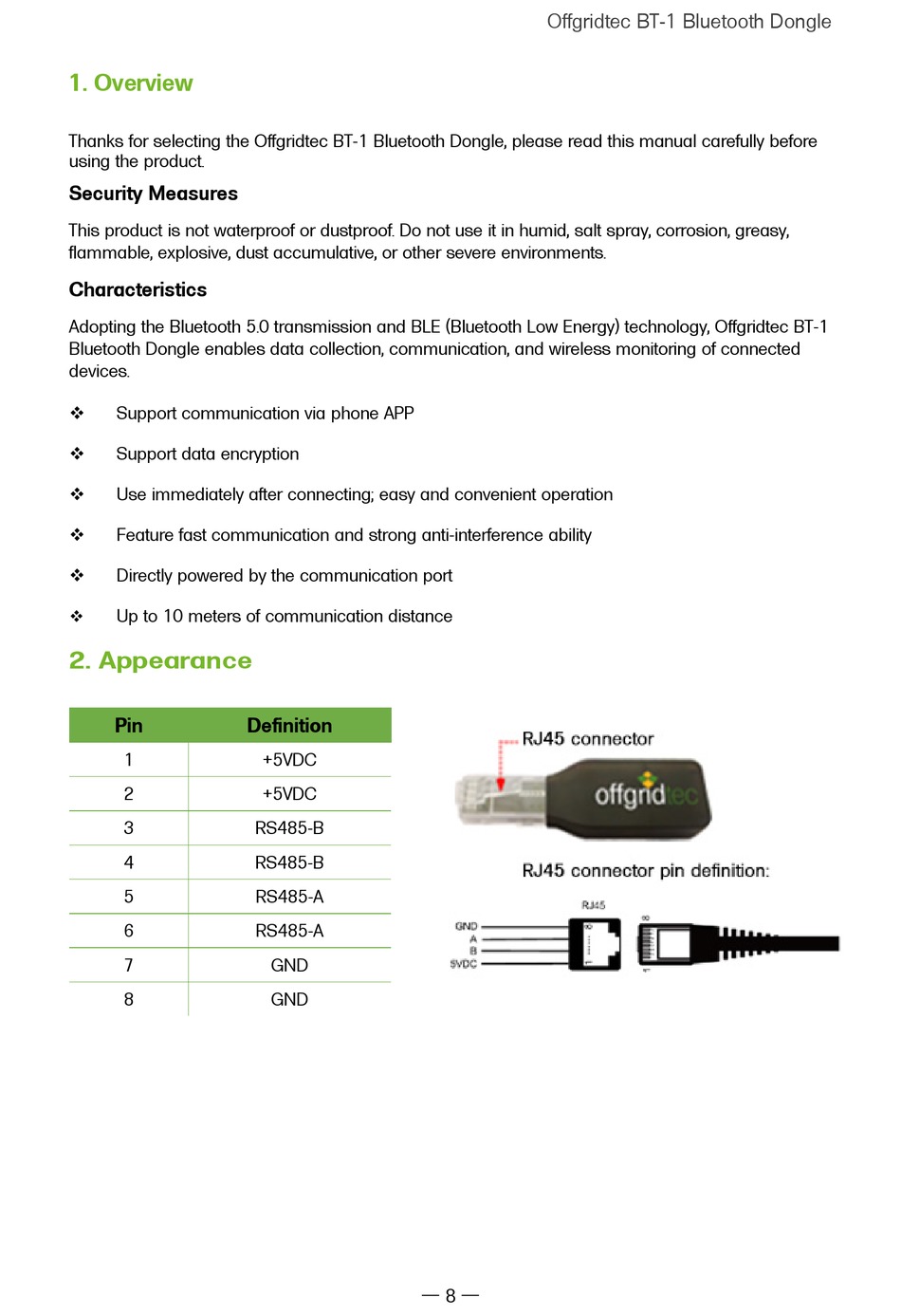

1. Overview

Thanks for selecting the Offgridtec BT-1 Bluetooth Dongle, please read this manual carefully before
using the product.

Security Measures

This product is not waterproof or dustproof. Do not use it in humid, salt spray, corrosion, greasy,
flammable, explosive, dust accumulative, or other severe environments.
Characteristics
Adopting the Bluetooth 5.0 transmission and BLE (Bluetooth Low Energy) technology, Offgridtec BT-1
Bluetooth Dongle enables data collection, communication, and wireless monitoring of connected
devices.
Support communication via phone APP

Support data encryption

Use immediately after connecting; easy and convenient operation

Feature fast communication and strong anti-interference ability

Directly powered by the communication port

Up to 10 meters of communication distance


2. Appearance

Pin
1
2
3
4
5
6
7
8
Definition
+5VDC
+5VDC
RS485-B
RS485-B
RS485-A
RS485-A
GND
GND
Offgridtec BT-1 Bluetooth Dongle
