Thermostat-Wandbatterie
Thermostatic wall-mounted mixer
Mitigeur thermostatique mural
Grifo mural de termostato
Miscelatore a parete con termostato
Thermostaat-wandmengkraan
Bateria jednouchwytowa
Termostatblandare som väggmonte
Termostatická nástěnná baterie
Seinähana termostaatilla
Термостатический настенный
смеситель

Werbung

loading

Inhaltszusammenfassung für KWC F5LT1104 3600003855

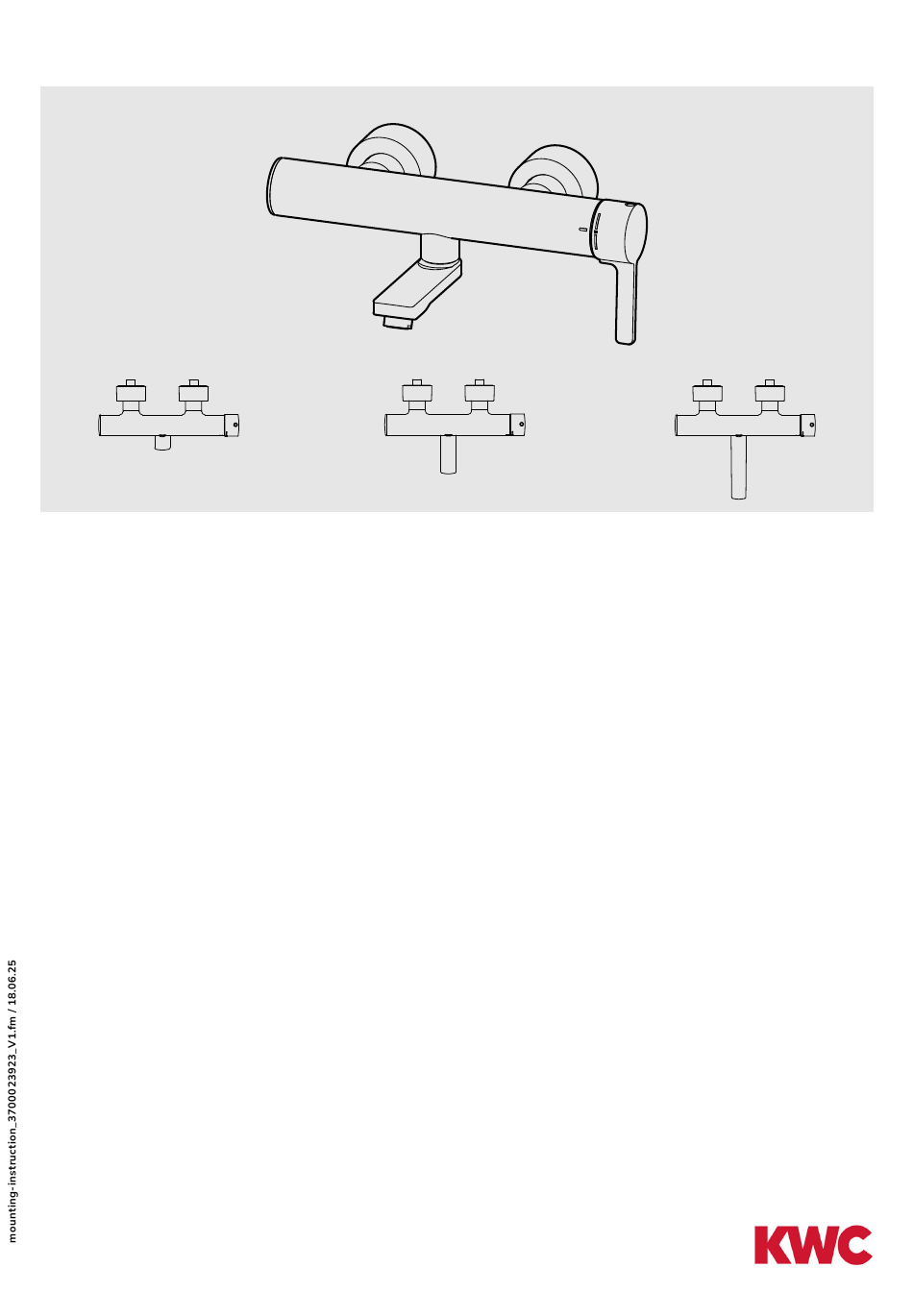

  • Seite 1 F5LT1104 F5LT1105 F5LT1106 3600003855 3600003854 3600003856 Montage- und Betriebsanleitung Thermostat-Wandbatterie Installation and operating instructions Thermostatic wall-mounted mixer Notice de montage et de mise en service Mitigeur thermostatique mural Instrucciones de montaje y servicio Grifo mural de termostato Istruzioni per il montaggio e l'uso Miscelatore a parete con termostato Montage- en bedrijfsinstructies Thermostaat-wandmengkraan...
  • Seite 2 F5LT1104 F5LT1105 F5LT1106 - 2 -...
  • Seite 3 Installation and operating instructions Montage- und Betriebsanleitung Important notes Wichtige Hinweise ► Before installing flush piping system! ► Vor Installation Rohrleitungen spülen! ► Set the scald protection after assembly has ► Nach erfolgter Montage den been completed. Verbrühungsschutz einstellen. ► The fitting must be operated only with ►...
  • Seite 4 Instrukcja montażu i obsługi Monterings- och driftinstruktion Ważne wskazówki Viktiga informationer ► Przed instalacją przepłukać rury! ► Spola igenom rörledningarna före ► Po przeprowadzeniu montażu ustawić installation! zabezpieczenie przed poparzeniem! ► Ställ in skållningsskyddet efter ► Armatury należy używać wyłącznie z installationen! oryginalnymi sitkami i zaworami zwrotnymi! ►...
  • Seite 5 Données techniques Technické údaje ► Pression dynamique minimale 1,0 bar ► Minimální průtočný tlak 1,0 bar ► Pression de service maximale 10 bars ► Maximální provozní tlak 10 bar ► Pression dynamique recommandée 3 bars ► Doporučený průtočný tlak 3 bar ►...
  • Seite 6 Istruzioni per il montaggio e Инструкция по монтажу и l'uso вводу в эксплуатацию Avvertenze importanti Важные указания ► Sciacquare le tubazioni prima di installare! ► Перед инсталляцией промыть трубки! ► A montaggio avvenuto impostare la ► После произведенного монтажа protezione dalle scottature! настроить...
  • Seite 7 Montage- en bedrijfsinstructies Belangrijke aanwijzingen ► Voor installatie buisleidingen spoelen! ► Na de montage de beveiliging tegen verbranding door te heet weter instellen! ► Armatuur alleen met originele zeven en terugstroomkleppen gebruiken! ► Afhankelijk van de waterkwaliteit, de plaatselijke omstandigheden en de plaatselijke voorschriften de armatuur regelmatig controleren en onderhouden.
  • Seite 8 Montage EN Installation NL Montage CS Montáž FR Montage PL Montaż FI Asennus ES Montaje SV Montering RU Монтаж IT Montaggio 17 mm 2,5 mm 30 mm 4 mm 132 - 168 34 - 40 - 8 -...
  • Seite 9 - 9 -...
  • Seite 10 > 43 °C - 10 -...
  • Seite 11 Funktion EN Function NL Werking CS Funkce FR Fonctionnement PL Funkcja FI Toiminto ES Función SV Funktion RU Функционирование IT Funzionamento - 11 -...
  • Seite 12 Thermische Desinfektion - manuell EN Thermal disinfection NL Thermische desinfectie CS Tepelná dezinfekce FR Désinfection thermique PL Dezynfekcja termiczna FI Terminen desinfiointi ES Desinfección térmica SV Termisk desinfektion RU Термическая дезинфекция IT Disinfezione termica 3 mm 2,5 mm 1× 1 ... - 12 -...
  • Seite 13 - 13 -...
  • Seite 14 > 70 °C 5 min > 70 °C - 14 -...
  • Seite 15 > 43 °C < 43 °C - 15 -...
  • Seite 16 0,8 Nm - 16 -...
  • Seite 17 Verbrühungsschutz einstellen EN Adjust scald protection NL Bescherming tegen CS Nastavte ochranu proti opaření verbranding instellen FR Réglage du dispositif de PL Ustawianie zabezpieczenia FI Palovammasuojan asettaminen protection contre les przed poparzeniem échaudures ES Ajustar la protección contra SV Inställning av skållningsskydd RU Настройка...
  • Seite 18 – – > 43 °C Hygienespülung nachrüsten EN Retrofit hygiene flush NL Hygiënespoeling monteren CS Dodatečné vybavení hygienickým proplachováním FR Montage ultérieur du rinçage PL Doposażyć płukanie hygiénique higieniczne FI Hygieniahuuhtelun jälkivarustelu ES Reequipar el enjuague SV Eftermontera hygienspolning RU Дооснащение гигиенической higiénico промывки...
  • Seite 19 Wartung EN Maintenance NL Onderhoud CS Varování FR Maintenance PL Konserwacja FI Huolto ES Mantenimiento SV Underhĺll RU Техническое обслуживание IT Manutenzione 22 mm - 19 -...
  • Seite 20 Siebe wechseln NL Zeven vervangen CS Vyměňte síto Replace the filters PL Wymiana sit FI Siivilän vaihto Remplacement les filtres Cambiar los tamices SV Byt filter RU Сменить сеточки Sostituire i filtri 30 mm 4 mm - 20 -...
  • Seite 21 - 21 -...
  • Seite 22 - 22 -...
  • Seite 23 Thermostatkartusche wechseln EN Changing the thermostat NL Thermostaatcartridge CS Výměna zásobníku termostatu cartridge vervangen FR Remplacement de la cartouche PL Wymiana głowicy FI Termostaattipatruunan vaihtaminen du thermostat termostatycznej ES Cambio del cartucho de SV Byta termostatpatron RU Замена картриджа термостата termostato IT Sostituzione della cartuccia termostatica Warning...
  • Seite 24 2,5 mm 3 mm 4 mm - 24 -...
  • Seite 25 1× 1 ... - 25 -...
  • Seite 26 2 ... - 26 -...
  • Seite 27 10 - 12 Nm – > 43 °C - 27 -...
  • Seite 28 Ersatzteile EN Replacement parts NL Reserveonderdelen CS Náhradní díly FR Pièces de rechange PL Części zamienne FI Varaosat ES Piezas de recambio SV Reservdelar RU Запчасти IT Pezzi di ricambio 1 ..2030068665 5 ..40 mm 6 ..2030012352 ASLT2001 2030035159 ETAPS0037 ASXX1003 2 ..
  • Seite 29 10. Zubehör EN Accessories NL Toebehoren CS Príslušenství FR Accessoire PL Akcesoria FI Lisävarusteet ES Accesorios SV Tillbehör RU принадлежности IT Accessori 1 ..2030067601 ACLT1001 2 ..2030067705 ACLT1002 3 ..2000104778 ZTAPS0005 4 ..3600005556 ACXX1015 5 ..3600003861 ACLT9001 - 29 -...
  • Seite 30 Notizen EN Notes NL Notities CS Poznámky FR Notes PL Uwagi FI Muistiinpanot ES Notas SV Notiser RU Примечания IT Annotazioni - 30 -...
  • Seite 31 Notizen EN Notes NL Notities CS Poznámky FR Notes PL Uwagi FI Muistiinpanot ES Notas SV Notiser RU Примечания IT Annotazioni - 31 -...
