  • Seite 1 All manuals and user guides at all-guides.com GSM-PRO Instruction Manual Instruction Manual Instruction Manual Instruction Manual feb 2014 rev7.0...
  • Seite 2: Inhaltsverzeichnis

    Connect to PC .......................... 8 LED description ........................8 3.5.1 Module status indication ....................8 3.5.2 IO indication ........................8 CONFIGURATION ......................9 Connect to the GSM-PRO ......................9 Synchronize ..........................10 4.2.1 Upload changes to the module ..................10 4.2.2 Download settings from module ..................10 4.2.3 Reset module to default ....................10...
  • Seite 3 All manuals and user guides at all-guides.com GSM-PRO 4.5.5 Active users ........................16 4.5.6 Import / Export settings ....................17 ADVANCED SETTINGS ....................18 Update ........................... 19 5.1.1 Manual firmware updates ....................19 5.1.2 OTA firmware update .......................19 5.1.3 OTA configuration ......................19 5.1.4 Send update information....................20...
  • Seite 4 6.4.3 Connect to V out ......................34 6.4.4 Wiring example ........................34 Read all IO statuses ......................... 35 Link multiple GSM-PRO’s ......................35 OTHER MESSAGES ...................... 36 Module reset .......................... 36 Stop messaging ........................36 Show all SMS commands ....................... 36 ADDITIONAL HARDWARE .................... 37 External antenna ........................
  • Seite 5 All manuals and user guides at all-guides.com GSM-PRO 10.5.2.1 Port forwarding ....................41 APPENDIX: SMS COMMANDS..................42 APPENDIX: DIAGNOSTIC COMMANDS ............... 44 APPENDIX: SIGNAL STRENGTHS ................. 45 APPENDIX: TECHNICAL SPECIFICATIONS ..............46...
  • Seite 6: Summary

    The outputs can be set when a selected user sends a pre- or user-defined SMS to the GSM-PRO. The GSM-PRO sends a periodical message on user defined times. On power loss the module holds enough power to send SMS messages to all selected GSM users (NO email).
  • Seite 7: Software

    OFTWARE E E E OFTWAR OFTWAR Download the latest GSM-PRO interface software at: http://www.conta-clip.com/en/service/ On start up the interface software checks if there is a new interface available and, when a module is connected, a new firmware version is available. To manually check for updates click: Help -> check for updates.
  • Seite 8: Module

    All manuals and user guides at all-guides.com GSM-PRO 3 3 3 3 MODULE MODULE MODULE MODULE 3.1 Place the SIM card Place the SIM card Place the SIM card Place the SIM card NOTE: Keep ESD precautions in mind when opening the module.
  • Seite 9: Connect The Antenna

    All manuals and user guides at all-guides.com GSM-PRO 3.2 Connect the antenna Connect the antenna Connect the antenna Connect the antenna Connect the antenna on the antenna connector on top of the module. 3.3 Connect to power Connect to power...
  • Seite 10: Led Description

    All manuals and user guides at all-guides.com GSM-PRO 3.4 C C C C o o o o nnec nnect to PC t to PC nnec nnec t to PC t to PC Connect a USB cable (artnr. 16103.2, sold separately, please contact Conta-Clip for further information) to the mini USB socket on the module, and the other end to a USB port on a PC.
  • Seite 11: Configuration

    Connect to the Connect to the Connect 24VDC to the module and connect a USB cable between the GSM-PRO and a PC USB port. Wait for the module to start up and run the GSM-PRO interface software. NOTE: module start up takes about 90 seconds, after connecting to power it takes about 10 seconds before the first Led activates.
  • Seite 12: Synchronize

    All manuals and user guides at all-guides.com GSM-PRO 4.2 Synchronize Synchronize Synchronize Synchronize Press the synchronize button to edit the module: 4.2.1 4.2.1 Upload changes to the module Upload changes to the module 4.2.1 4.2.1 Upload changes to the module Upload changes to the module Upload current configuration software settings to the module.
  • Seite 13: Restart Device

    All manuals and user guides at all-guides.com GSM-PRO 4.2.5 4.2.5 Restart device Restart device 4.2.5 4.2.5 Restart device Restart device Due to the internal capacity it’s not possible to quickly reset the device by powering off. Click this button to reset the device by software.
  • Seite 14: Diagnostics

    All manuals and user guides at all-guides.com GSM-PRO 4.3 Diagnostics Diagnostics Diagnostics Diagnostics After connecting to the module the diagnostics tab is filled. This page shows: Registered GSM network or connection errors • Signal strength in percentage and signal quality •...
  • Seite 15: Phonebook

    All manuals and user guides at all-guides.com GSM-PRO 4.4 Phonebook Phonebook Phonebook Phonebook The interface software has a phonebook to list all your contacts for further usage. All actions in the phonebook will auto save on completion. 4.4.1 4.4.1 4.4.1 4.4.1...
  • Seite 16: Delete Contacts

    All manuals and user guides at all-guides.com GSM-PRO 4.4.2 4.4.2 Delete contacts Delete contacts 4.4.2 4.4.2 Delete contacts Delete contacts To delete a contact select one or multiple rows to delete and click the delete button. - 14 -...
  • Seite 17: Import / Export Phonebook

    All manuals and user guides at all-guides.com GSM-PRO 4.4.3 4.4.3 Import / Import / Export Export phonebook phonebook 4.4.3 4.4.3 Import / Import / Export Export phonebook phonebook The phonebook can be exported for usage on another PC that has the interface software installed. To export the phonebook click the ‘phonebook’...
  • Seite 18: Settings

    4.5.3 4.5.3 Power cycle message Power cycle message Power cycle message Power cycle message The GSM-PRO can send a message on every module start up, so the users are aware of a power recovery. 4.5.4 4.5.4 4.5.4 4.5.4 Power down message...
  • Seite 19: Import / Export Settings

    All manuals and user guides at all-guides.com GSM-PRO 4.5.6 4.5.6 Import / Import / Export settings Export settings 4.5.6 4.5.6 Import / Import / Export settings Export settings Export the settings to preserve them for later usage after closing the user interface. To export all settings click the ‘settings’...
  • Seite 20: Advanced Settings

    All manuals and user guides at all-guides.com GSM-PRO 5 5 5 5 ADVANCED SETTINGS ADVANCED SETTINGS ADVANCED SETTINGS ADVANCED SETTINGS Access the ‘advanced settings’ by clicking Edit->advanced settings or tapping F2. The following functions can be configured: updates • network connection •...
  • Seite 21: Update

    Update The GSM-PRO can perform firmware updates remote(OTA) or when connected by USB to a PC. O O O O ver T T T T he A A A A ir (OTA) covers remote actions where the data is transmitted over GPRS.
  • Seite 22: Send Update Information

    All manuals and user guides at all-guides.com GSM-PRO Conta-Clip server and answers: ‘module IMEI nr: <IMEI nr> <module name> configuration file uploaded.’ Fill the unique module International Mobile Equipment Identity (IMEI) into the user interface and press ‘download configuration’. The user interface will be automatically updated with the settings of the (remote) module.
  • Seite 23: Roaming

    5.2.6 Portal Portal 5.2.6 5.2.6 Portal Portal Mark the checkbox and fill your PC’s remote IP and port to allow the GSM-PRO to access the Portal software. See the GSM-PRO Portal manual for further instructions. 5.3 SMTP SMTP SMTP SMTP Enter the SMTP (Simple Mail Transfer Protocol) settings for outgoing email.
  • Seite 24: Smtp Settings

    5.4 Log The GSM-PRO can keep log files with a maximum size of 720 events. When a log is 90% full the module sends a warning message to the active users. When the log is 100% full the module sends another warning message and then it stops logging until downloaded or erased.
  • Seite 25: Event Log

    5.4.1 Event log Event log Event log Event log When this log is enabled the GSM-PRO logs the following events: Reached threshold limits on the AI inputs • Rising and falling flank on the digital inputs (DI) • Received messages •...
  • Seite 26: Io Operating Hours Counter

    All manuals and user guides at all-guides.com GSM-PRO aiclr aiclr When connected, erase the event log by clicking ‘erase AI log’. Erase remote by sending: aiclr aiclr . The module answers with a confirmation message. 5.4.3 5.4.3 5.4.3 5.4.3 IO operating hours counter...
  • Seite 27: Sim

    Insert the correct PUK and PIN code and click ‘insert PUK code’. 5.6 C C C C OM port OM port OM port OM port The COM port tab shows on which COM port a GSM-PRO module is found. - 25 -...
  • Seite 28: I/Oconfiguration And Messaging

    Configuration Configuration Configuration The GSM-PRO has 4 CO outputs. The following items can be configured with the software: Name, this name must be unique and cannot be used with any other input or output. Default • set as DO1 to DO4.
  • Seite 29: Select Users

    All manuals and user guides at all-guides.com GSM-PRO 6.1.2 6.1.2 Select Select users users 6.1.2 6.1.2 Select Select users users The recipients have access to the associated digital output. NOTE: Selected DO users do not have any rights to send other commands to the module other than addressed to the defined output.
  • Seite 30: Using The One-Shot Function

    All manuals and user guides at all-guides.com GSM-PRO If set, the module sends a confirmation message: ‘status DOn=x‘, or when a user defined name is given: ‘status name =x‘ If an output state is already in the state, the text: ‘status not changed’ is added to the answer.
  • Seite 31: Preserve Status On Startup

    All manuals and user guides at all-guides.com GSM-PRO NOTE: This function can conflict with the SMS and RING instructions. 6.1.10 6.1.10 6.1.10 6.1.10 Preserve status on startup Preserve status on startup Preserve status on startup Preserve status on startup Choose if the status per output is preserved on restart or power cycle. If deselected the output is deactivated.
  • Seite 32: Universal Inputs

    GSM-PRO 6.2 Universal Input Universal Input Universal Input Universal Inputs s s s The GSM-PRO has 8 universal inputs which can individual be configured as: Analog input AI (0..10V) • Digital input DI (default) • The selected button represents the chosen function and is set after uploading.
  • Seite 33: Analog Inputs

    All manuals and user guides at all-guides.com GSM-PRO When there are one or more email addresses in the user list, the email is sent only once to all email addresses at the beginning of the sequence. 6.3 Analog input Analog input...
  • Seite 34: Reading From An Analog Input

    All manuals and user guides at all-guides.com GSM-PRO NOTE: The min./max. and threshold/hysteresis values are limited to 5 digits with a maximum of 2 decimals. A delay in seconds can be set which a changed AI has to exceed before it is accepted, during the delay the UI led blinks.
  • Seite 35: Digital Inputs

    All manuals and user guides at all-guides.com GSM-PRO 6.4 Digital Input Digital Inputs s s s Digital Input Digital Input 6.4.1 6.4.1 6.4.1 6.4.1 Configuration Configuration Configuration Configuration Configure the following items: Name; this name must be unique and cannot be used with any other input or output. Default •...
  • Seite 36: Connect To V Out

    All manuals and user guides at all-guides.com GSM-PRO 6.4.3 6.4.3 Connect to V Connect to V out 6.4.3 6.4.3 Connect to V Connect to V The module contains a source which can be used to connect the digital inputs. When using the power down function it’s highly recommended to use this source over the input voltage to connect...
  • Seite 37: Read All Io Statuses

    PRO’s PRO’s It’s possible to link multiple GSM-PRO units by SMS. By selecting the ‘send only user defined text’ in the IO configuration it’s possible to send the pre-defined messages to other modules. For example: digital input 8 sends WDO21 on a rising flank to a second unit. This unit receives the message, set’s digital output 2 and sends a message WDO31 to a third unit, and so on.
  • Seite 38: Other Messages

    All manuals and user guides at all-guides.com GSM-PRO 7 7 7 7 OTHER MESSAGES OTHER MESSAGES OTHER MESSAGES OTHER MESSAGES 7.1 Module reset Module reset Module reset Module reset Reset with the following command: wreset wreset wreset wreset . This performs a full module reset. The module answers with the power cycle message if set.
  • Seite 39: Additional Hardware

    All manuals and user guides at all-guides.com GSM-PRO 8 8 8 8 ADDI ADDITIONAL HARDWARE TIONAL HARDWARE ADDI ADDI TIONAL HARDWARE TIONAL HARDWARE The hardware described below is sold separately. Please contact CONTA-CLIP for more information. 8.1 External antenna External antenna...
  • Seite 40: Additional Software

    PRO App PRO App The GSM-PRO App can be downloaded from the Google Play store for Android and from the Apple Store for Apple iOS. With the app you can view the IO status and events or set an output by simple tapping your smart phones touch screen.
  • Seite 41 All manuals and user guides at all-guides.com GSM-PRO Please read the Portal manual or contact CONTA-CLIP for more information. - 39 -...
  • Seite 42: Troubleshooting

    All manuals and user guides at all-guides.com GSM-PRO 10 TROUBLESH TROUBLESHOOTING OOTING TROUBLESH TROUBLESH OOTING OOTING 10.1 10.1 Cannot connect to the PC Cannot connect to the PC, no module found , no module found 10.1 10.1 Cannot connect to the PC...
  • Seite 43: Port Forwarding

    It is possible to do a remote diagnose on the module. An internet connection for the module and a portforwarding (see chapter portforwarding) for the used PC is required. Enter the internal IP address of the PC, the submitted port and mark the OTA option. The PC is now waiting for the GSM-PRO. Next send the SMS: DEBUG<IP>:<port>...
  • Seite 44: Appendix: Sms Commands

    All manuals and user guides at all-guides.com GSM-PRO 11 APPENDIX: APPENDIX: SMS COMMANDS SMS COMMANDS APPENDIX: APPENDIX: SMS COMMANDS SMS COMMANDS RALL => read all IOs RMDO => read multiple (all) digital outputs RDOn => read digital output number n RMUI =>...
  • Seite 45 All manuals and user guides at all-guides.com GSM-PRO CLRTIMEDOn => reset digital output hour counter n, use ‘0’ for all do’s => check signal quality and strength IMEI => request IMEI number STARTAPP => configure APP usage APN,<servername>,<user>,<pass> => setup one time data usage PORTAL<ip>:<port>...
  • Seite 46: Appendix: Diagnostic Commands

    All manuals and user guides at all-guides.com GSM-PRO 12 APPENDIX: DIAGNOSTIC APPENDIX: DIAGNOSTIC COMMANDS COMMANDS APPENDIX: DIAGNOSTIC APPENDIX: DIAGNOSTIC COMMANDS COMMANDS HELLO => alive call, module answer with world => device reset MPWR => device power (V) => request ui number n, use ‘0’ for all ui’s Donx =>...
  • Seite 47: Appendix: Signal Strengths

    All manuals and user guides at all-guides.com GSM-PRO 13 APPENDIX: SIGNAL STR APPENDIX: SIGNAL STRENGTHS ENGTHS APPENDIX: SIGNAL STR APPENDIX: SIGNAL STR ENGTHS ENGTHS Appendix Signal strengths % (percentual) Remark 0,0% Too low for connectivity 3,2% Too low for connectivity...
  • Seite 48: Appendix: Technical Specifications

    16101.2 16101.2 16101.2 16101.2 Cat.no. Cat.no. GSM-antenna-external-SMA-2,5m GSM external antenna 16061.2 16061.2 Cat.no. Cat.no. Cat.no. Cat.no. 16061.2 16061.2 GSM-USB-cable USB programming cable Cat.no. Cat.no. 16103.2 16103.2 16103.2 16103.2 Cat.no. Cat.no. GSM-PRO.dab.xls 25-11-2011 Errors, modifications and omissions excepted. - 46 -...
  • Seite 49 All manuals and user guides at all-guides.com GSM-PRO Bedienungsanleitung Bedienungsanleitung Bedienungsanleitung Bedienungsanleitung feb 2014 Vers. 7.0...
  • Seite 50 Anschluss an einen PC ......................9 Beschreibung der LEDs ......................9 3.5.1 Modulstatus-Anzeigen ......................9 3.5.2 E/A-Anzeigen ........................9 KONFIGURATION ......................11 Verbindung mit dem GSM-PRO ....................11 Synchronisierung ........................12 4.2.1 Einstellungen auf das Modul laden ...................12 4.2.2 Einstellungen vom Modul herunterladen .................12 4.2.3 Modul auf Werkseinstellungen zurücksetzen ..............12...
  • Seite 51 All manuals and user guides at all-guides.com GSM-PRO 4.5.5 Aktive Anwender ......................18 Klicken Sie auf die Schaltfläche „ Kopiere Benutzer nach UIs“ um die ausgewählten Nutzer auf alle UI Seiten zu kopieren........................18 4.5.6 Import/Export-Einstellungen ....................19 ERWEITERTE EINSTELLUNGEN ..................20 Aktualisierungen (Updates) .....................
  • Seite 52 Anschlüsse V out ......................37 6.4.4 Anschluss Beispiel ......................37 Lesen aller E/A-Zustände ......................38 Verknüpfung mehrerer GSM-PRO’s ..................38 SONSTIGE MELDUNGEN ..................... 39 Zurücksetzen des Moduls ....................... 39 Beenden des Sendens von Meldungen ................... 39 Zeigen aller SMS Befehle ......................39 ZUSÄTZLICHE HARDWARE ..................
  • Seite 53 All manuals and user guides at all-guides.com GSM-PRO 10.3 Das Modul sendet keine Meldungen ..................43 10.4 Das Modul startet nicht ......................43 10.5 Diagnose ..........................44 10.5.1 USB ..........................44 10.5.2 OTA ..........................44 ANHANG: SMS-BEFEHLE....................45 ANHANG: DIAGNOSEBEFEHLE ..................47 ANHANG: SIGNALSTÄRKE ...................
  • Seite 54: Beschreibung

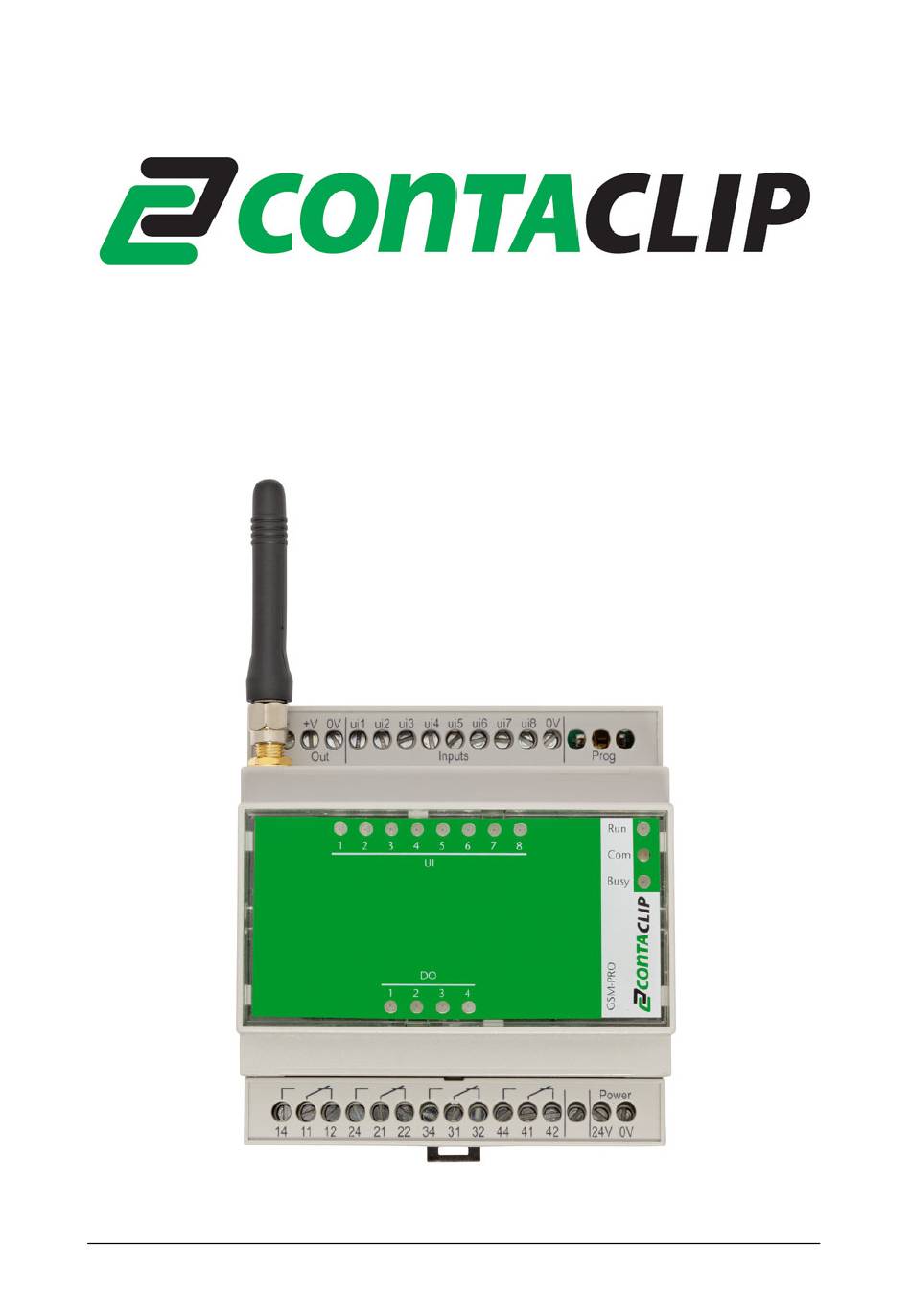

    Übersicht Übersicht Übersicht Das GSM-PRO ist ein kompaktes dezentrales Steuerungs- und Meldungssystem. Alle Eingänge und Ausgänge (E/A) des Moduls werden per SMS und E-Mail überwacht und per SMS-Kommunikation über das GSM-Netz gesteuert. Das Modul wird mittels der GSM-PRO PC-Software konfiguriert. Jeder E/A-Punkt kann durch anwenderspezifischer Parameternamen und Meldungen geändert werden.
  • Seite 55: Software

    2 2 2 2 S S S S OFTWARE OFTWARE OFTWARE OFTWARE Die neueste GSM-PRO-Interface-Software kann unter folgender Adresse heruntergeladen werden: http://www.conta-clip.com/en/service/ Die Interface-Software prüft beim Start automatisch ob eine neue Interfaceversion- und, falls ein Modul angeschlossen ist, eine neue Firmware-version verfügbar ist. Um manuell nach Aktualisierungen zu suchen, klicken Sie auf: Hilfe ->...
  • Seite 56 All manuals and user guides at all-guides.com GSM-PRO - 6 -...
  • Seite 57: Modul

    All manuals and user guides at all-guides.com GSM-PRO 3 3 3 3 M M M M ODUL ODUL ODUL ODUL 3.1 Einlegen der SIM Einlegen der SIM- - - - Karte Karte Einlegen der SIM Einlegen der SIM Karte Karte HINWEIS: Beim Öffnen des Moduls müssen ESD-Vorsichtsmaßnahmen eingehalten werden.
  • Seite 58: Anschluss Der Antenne

    All manuals and user guides at all-guides.com GSM-PRO 3.2 Anschluss der Antenne Anschluss der Antenne Anschluss der Antenne Anschluss der Antenne Verbinden Sie die Antenne mit dem Antennenanschluss auf der Oberseite des Moduls. 3.3 Anschluss der Stromversorgung Anschluss der Stromversorgung...
  • Seite 59: Anschluss An Einen Pc

    All manuals and user guides at all-guides.com GSM-PRO 3.4 Anschluss an einen PC Anschluss an einen PC Anschluss an einen PC Anschluss an einen PC Schließen Sie ein USB-Kabel (Best.-Nr. 16103.2, nicht im Lieferumfang enthalten, bitte kontaktieren Sie CONTA-CLIP für weitere Informationen) an die Mini-USB-Buchse des Moduls und das andere Ende an die USB-Schnittstelle des PCs an.
  • Seite 60 All manuals and user guides at all-guides.com GSM-PRO Bei einer Einstellung als Analogeingang : ein oberer oder unterer Schwellwert erreicht wird - 10 -...
  • Seite 61: Konfiguration

    Betriebsspannung leuchtet die erste LED nach etwa 10 Sekunden. Beim Anlauf durchsucht die Konfigurations-Software alle verfügbaren COM-Schnittstellen nach einem verfügbaren GSM-PRO. Wird ein Modul gefunden, lädt die Software die Diagnosedaten und fordert dazu auf, die Einstellungen des Geräts herunterzuladen. Wenn ‘Ja’ angewählt wird, wird die Anwenderschnittstelle automatisch aktualisiert.
  • Seite 62: Einstellungen Auf Das Modul Laden

    All manuals and user guides at all-guides.com GSM-PRO 4.2 Synchronisierung Synchronisierung Synchronisierung Synchronisierung Klicken Sie auf die Schaltfläche ‘Synchronisieren’, um das Modul zu bearbeiten: 4.2.1 4.2.1 Einstellungen auf das Modul laden Einstellungen auf das Modul laden 4.2.1 4.2.1 Einstellungen auf das Modul laden Einstellungen auf das Modul laden Lädt die aktuellen Konfigurations-Software-Einstellungen auf das Modul.
  • Seite 63: Verbinden Mit Modul

    All manuals and user guides at all-guides.com GSM-PRO 4.2.6 4.2.6 Verbinden mit Modul Verbinden mit Modul 4.2.6 4.2.6 Verbinden mit Modul Verbinden mit Modul Das Modul über den USB-Anschluss verbinden. - 13 -...
  • Seite 64: Signalstärke

    All manuals and user guides at all-guides.com GSM-PRO 4.3 Diagnosen Diagnosen Diagnosen Diagnosen Nach dem Herstellen der Verbindung mit dem Modul wird die Registerkarte ‘Diagnostik’ ausgefüllt. Diese Seite zeigt: • das registrierte GSM-Netz oder Verbindungsfehler • die Signalstärke in Prozent und die Signalqualität •...
  • Seite 65: Telefonbuch

    All manuals and user guides at all-guides.com GSM-PRO Um die Signalstärke und Qualität per SMS abzufragen, senden Sie: 4.4 Telefonbuch Telefonbuch Telefonbuch Telefonbuch Die Interface-Software verfügt über ein Telefonbuch, in dem alle Kontakte für eine zukünftige Verwendung aufgeführt sind. Alle im Telefonbuch vorgenommenen Aktionen werden nach deren Abschluss automatisch gespeichert.
  • Seite 66: Kontakte Löschen

    All manuals and user guides at all-guides.com GSM-PRO 4.4.2 4.4.2 Kontakte löschen Kontakte löschen 4.4.2 4.4.2 Kontakte löschen Kontakte löschen Um einen Kontakt zu löschen klicken Sie auf eine oder mehrere zu löschende Zeilen und dann auf die Schaltfläche ‘Löschen’.
  • Seite 67: Telefonbuch Importieren/Exportieren

    All manuals and user guides at all-guides.com GSM-PRO 4.4.3 4.4.3 Telefonbuch importieren/exportieren Telefonbuch importieren/exportieren 4.4.3 4.4.3 Telefonbuch importieren/exportieren Telefonbuch importieren/exportieren Das Telefonbuch kann zur Verwendung auch auf einem anderen PC, als auf dem die Interface- Software installiert wurde, exportiert werden. Klicken Sie zum Exportieren des Telefonbuches auf die Schaltfläche ‘Telefonbuch’...
  • Seite 68: Grundeinstellungen

    Bei einem Spannungsausfall verfügt das Modul noch über ausreichend Energie, um an die ersten 5 angewählten GSM-Anwender SMS-Nachrichten zu versenden. GSM-PRO erkennt einen Spannungsausfall, wenn die Spannung unter 8 V fällt und schaltet bei einer Spannung über 10 V wieder ein.
  • Seite 69: Import/Export-Einstellungen

    All manuals and user guides at all-guides.com GSM-PRO 4.5.6 4.5.6 4.5.6 4.5.6 Import/Export Import/Export Import/Export Import/Export- - - - Einstellungen Einstellungen Einstellungen Einstellungen Exportieren Sie die Einstellungen, um sie nach dem Verlassen der Anwenderschnittstelle anderweitig verwenden zu können. Klicken Sie zum Exportieren aller Einstellungen auf die Schaltfläche ‘Einstellungen’...
  • Seite 70: Erweiterte Einstellungen

    All manuals and user guides at all-guides.com GSM-PRO 5 5 5 5 E E E E RWEITERTE EINSTELLUNGEN RWEITERTE EINSTELLUNGEN RWEITERTE EINSTELLUNGEN RWEITERTE EINSTELLUNGEN Klicken Sie auf ‘Bearbeiten’-> ‘Erweiterte Einstellungen’ oder drücken Sie ‘F2’, um zu den ‘Erweiterten Einstellungen’ zu gelangen.
  • Seite 71: Aktualisierungen (Updates)

    (Update (Update (Updates s s s ) ) ) ) Das GSM-PRO Modul kann Firmware-Updates Remote (OTA), oder über die USB-Verbindung mit einem PC durchführen. Bei Over The Air (OTA) Remote-Maßnahmen werden die Daten über GPRS übertragen. HINWEIS: Um eine OTA-Aktion durchführen zu können, muss das Modul über eine GSM- Datenverbindung verfügen, und die Datennutzung muss aktiviert sein (siehe Abschnitt...
  • Seite 72: Benachrichtigung Bei Aktualisierungen

    All manuals and user guides at all-guides.com GSM-PRO 5.1.3 5.1.3 5.1.3 5.1.3 OTA- - - - Konfigur Konfigur Konfigur Konfiguration ation ation ation Rotac Rotac Die Konfiguration des Moduls kann per Fernzugriff durchgeführt werden. Senden Sie: Rotac Rotac , um das Verfahren zu starten.
  • Seite 73: Datennutzung Aktivieren

    5.2.5 5.2.5 Markieren Sie das Kontrollkästchen, um Ihre GSM-PRO Events und IO-Status zu synchronisieren. So kann es durch ein Apple iOS oder Android-App ausgelesen und angesteuert werden.SMTP Geben Sie für ausgehende E-Mails die SMTP (Simple Mail Transfer Protocol) Einstellungen ein.
  • Seite 74: Smtp

    HINWEIS: Um den SMTP-Server zu überprüfen, ist eine GSM-Datenverbindung erforderlich. 5.4 Log GSM-PRO kann Logdateien mit einer Größe von bis zu 720 Events anlegen.. Wenn ein Log zu 90 % gefüllt ist, sendet das Modul eine Warnmeldung an die Aktiven Nutzer. Wenn das Log zu 100 % gefüllt ist, sendet das Modul eine erneute Warnmeldung und die Protokollierung wird angehalten, bis...
  • Seite 75: Ereignislog

    5.4.1 5.4.1 Ereignislog Ereignislog 5.4.1 5.4.1 Ereignislog Ereignislog Wenn dieses Log aktiviert ist, protokolliert GSM-PRO folgende Ereignisse: • Schwellwertgrenze an den Analogeingängen (AI) erreicht • Steigende und fallende Flanke an den Digitaleingängen (DI) • Eingehende Nachrichten • Gesendete Nachrichten •...
  • Seite 76: Abfrage Betriebsstundenzähler Digitalausgang

    All manuals and user guides at all-guides.com GSM-PRO • 30 Min. (15 Tage) • 45 Min. (22.5 Tage) • 60 Min. (30 Tage) Die hier angegebene Logdauer in Tagen basiert auf der Protokollierung eines (1) AIs. Wenn per Kabel verbunden, können Sie dieses Log einsehen, indem Sie ‘AI log zeigen’ anklicken. Um...
  • Seite 77: Eingänge Während Neustart Überwachen

    PUK-Codes erforderlich. Die Diagnoseseite zeigt dies in den Fehlermeldungen. Geben Sie den korrekten PUK- und neuen PIN-Code ein und klicken Sie auf ‘PUK Code einfügen’. 5.6 COM COM- - - - Port Port Port Port Die Registerkarte ‘COM Port’ zeigt, an welcher COM-Schnittstelle ein GSM-PRO-Modul gefunden wurde. - 27 -...
  • Seite 78: A-Konfiguration Und -Meldungen

    6.1.1 6.1.1 Konfiguration Konfiguration GSM-PRO verfügt über 4 Ausgänge mit Wechslerkontakt. Die folgenden Objekte können mit der Software konfiguriert werden: • Name, dieser Name muss einzigartig sein und kann nicht für einen anderen Ein- oder Ausgang verwendet werden. Die Standardeinstellung ist DO1 bis DO4.
  • Seite 79: Selektieren Von Benutzern

    All manuals and user guides at all-guides.com GSM-PRO 6.1.2 6.1.2 6.1.2 Selektiere 6.1.2 Selektieren von n von Benutzern Benutzern 6.1.2 6.1.2 6.1.2 Selektiere 6.1.2 Selektiere n von n von Benutzern Benutzern Die Empfänger haben Zugriff auf den ausgewählten Digital Ausgang.
  • Seite 80: Benutzerdefinierten Befehlen. Lesen Von Mehreren Digitalen Ausgängen

    All manuals and user guides at all-guides.com GSM-PRO Wird einem Ausgang ein anwenderdefinierter Name zugewiesen, kann dieser Ausgang adressiert werden, in dem der Name in Sternchen eingerahmt wird, z. B. können Sie einen mit dem Namen w*licht* * * * 3 ‘Licht’...
  • Seite 81: Einschalten Wenn Keine Verbindung Zum Gsm

    All manuals and user guides at all-guides.com GSM-PRO HINWEIS: Diese Funktion kann bei Verwendung der SMS- oder Anruffunktion zu Konflikten führen. 6.1.4 6.1.4 6.1.4 6.1.4 Einschalt Einschalt Einschalt Einschalten wenn keine Verbindung zum GSM en wenn keine Verbindung zum GSM...
  • Seite 82: Universaleingänge

    GSM-PRO 6.2 Universaleingänge Universaleingänge Universaleingänge Universaleingänge GSM-PRO verfügt über 8 Universaleingänge, die individuell wie folgt konfiguriert werden können: • Analoger Eingang AI (0..10 V) • Digitaler Eingang DI (Standardeinstellung) Die gewählte Schaltfläche repräsentiert die gewählte Funktion und wird nach dem Laden der Einstellungen ins Modul eingestellt.
  • Seite 83: Bestätigungssequenz

    All manuals and user guides at all-guides.com GSM-PRO 6.2.3 6.2.3 Bestätigungssequenz Bestätigungssequenz 6.2.3 6.2.3 Bestätigungssequenz Bestätigungssequenz Wenn die Bestätigungsfunktion aktiviert ist, sendet das Modul die Meldung mit einer einstellbaren zeitlichen Verzögerung nacheinander an die ausgewählten Anwender. Beispiel: Die Sequenz startet mit dem Senden der Meldung an die erste Telefonnummer. Wird die Zeitverzögerung überschritten, wird die Meldung an die nächste Telefonnummer der Liste gesendet...
  • Seite 84: Konfiguration

    All manuals and user guides at all-guides.com GSM-PRO 6.3.1 6.3.1 6.3.1 6.3.1 Konfiguration Konfiguration Konfiguration Konfiguration Konfigurieren Sie die nachfolgenden Objekte: • Name, dieser Name muss einzigartig sein und kann nicht für einen anderen Ein- oder Ausgang verwendet werden. Die Vorgabeeinstellung ist AI1 bis AI8.
  • Seite 85: Lesen Eines Analogen Eingangs

    All manuals and user guides at all-guides.com GSM-PRO 6.3.2 6.3.2 6.3.2 6.3.2 Lesen eines analogen Eingangs Lesen eines analogen Eingangs Lesen eines analogen Eingangs Lesen eines analogen Eingangs ruin Senden Sie, um den Zustand eines analogen Eingangs abzufragen: , wobei ‘n’ die Nummer des gewünschten Eingangs ist.
  • Seite 86: Digitale Eingänge

    All manuals and user guides at all-guides.com GSM-PRO 6.4 Digitale Eingänge Digitale Eingänge Digitale Eingänge Digitale Eingänge 6.4.1 6.4.1 6.4.1 6.4.1 Konfiguratio Konfiguratio Konfiguratio Konfiguration n n n Konfigurieren Sie die nachfolgenden Objekte: • Name, dieser Name muss einzigartig sein und kann nicht für einen anderen Ein- oder Ausgang verwendet werden.
  • Seite 87: Anschlüsse V V V V Out

    All manuals and user guides at all-guides.com GSM-PRO 6.4.3 6.4.3 Anschlüsse Anschlüsse V V V V out 6.4.3 6.4.3 Anschlüsse Anschlüsse Die Anschlüsse Vout bieten eine Quelle, die zur Versorgung der digitalen Eingänge verwendet werden kann. Bei Verwendung der Power-Down-Funktion des Moduls ist es empfehlenswert, diese Quelle zu nutzen und nicht die normale Versorgungsspannung des Moduls.
  • Seite 88: Lesen Aller E/A-Zustände

    PRO’s PRO’s PRO’s Es ist möglich, mehrere GSM-PRO Einheiten per SMS zu verknüpfen. Durch die Auswahl 'Nur den Benutzer definierten Text senden' in der IO-Konfiguration ist es möglich, vordefinierte Nachrichten an andere Module zu senden. Zum Beispiel: Digitaleingang 8 sendet WDO21 auf einer ansteigenden Flanke zu einer zweiten Einheit.
  • Seite 89: Zurücksetzen Des Moduls

    All manuals and user guides at all-guides.com GSM-PRO 7 7 7 7 S S S S ONSTIGE MELDUNGEN ONSTIGE MELDUNGEN ONSTIGE MELDUNGEN ONSTIGE MELDUNGEN 7.1 Zurücksetzen Zurücksetzen des Moduls des Moduls Zurücksetzen Zurücksetzen des Moduls des Moduls Sie können das Modul mit dem folgenden Befehl zurücksetzen:...
  • Seite 90: Externe Antenne

    All manuals and user guides at all-guides.com GSM-PRO 8 8 8 8 Z Z Z Z USÄTZLICHE HARDWARE USÄTZLICHE HARDWARE USÄTZLICHE HARDWARE USÄTZLICHE HARDWARE Die nachfolgend beschriebene Hardware wird separat vertrieben. Bitte kontaktieren Sie CONTA-CLIP für weitere Informationen. 8.1 Externe Antenne...
  • Seite 91: Zusätzliche Software

    PRO App PRO App PRO App Die GSM-PRO App kann aus dem Google Play Store für Android und aus dem App Store für Apple iOS heruntergeladen werden. Mit der entsprechenden App können der IO-Status und entsprechende analoge Werte angezeigt und Ausgänge durch einfaches Antippen des Smartphone Touchscreen angesteuert werden.
  • Seite 92 All manuals and user guides at all-guides.com GSM-PRO Bitte lesen sie das Portal manual oder kontaktieren Sie CONTA-CLIP für weitere Informationen. - 42 -...
  • Seite 93: Fehlersuche

    All manuals and user guides at all-guides.com GSM-PRO 10 F F F F EHLERSUCHE EHLERSUCHE EHLERSUCHE EHLERSUCHE 10.1 10.1 Keine Verbindung mit dem PC möglich, kein Modul gefunden Keine Verbindung mit dem PC möglich, kein Modul gefunden 10.1 10.1 Keine Verbindung mit dem PC möglich, kein Modul gefunden Keine Verbindung mit dem PC möglich, kein Modul gefunden...
  • Seite 94: Diagnose

    Geben Sie die interne IP-Adresse des PCs und den zur Übertragung gewählten Port ein und wählen Sie die OTA-Funktion aus. Der PC wartet nun auf die Verbindungsanfrage des GSM-PRO Moduls.Senden die eine SMS zum Modul: DEBUG<IP>:<port DEBUG<IP>:<port...
  • Seite 95: Anhang

    All manuals and user guides at all-guides.com GSM-PRO 11 ANHA ANHANG NG: : : : SMS SMS- - - - B B B B EFEHLE EFEHLE ANHA ANHA EFEHLE EFEHLE RALL => alle E/A-Zustände auslesen RMDO => mehrere (alle) digitalen Ausgänge auslesen RDOn =>...
  • Seite 96 All manuals and user guides at all-guides.com GSM-PRO TIMEDOn => Abfrage Betriebsstundenzähler Digitalausgang, ‘0’ für alle do’s benutzen CLRTIMEDIn => Reset Betriebsstundenzähler Digitaleingang, ‘0’ für alle di’s benutzen CLRTIMEDOn => Reset Betriebsstundenzähler Digitaleingang, ‘0’ für alle do’s benutzen => Prüfung der Signalstärke und SIgnal IMEI =>...
  • Seite 97: Anhang: Sms-Befehle

    All manuals and user guides at all-guides.com GSM-PRO 12 ANHANG: Diagnosebefehle ANHANG: Diagnosebefehle ANHANG: Diagnosebefehle ANHANG: Diagnosebefehle HELLO => alive call, module answer with world BEreitschaftsanfrage, Modul antwortet mit “world” => Modul Reset MPWR => Modul Spanung (Volt) => Abfrage UI Nummer n, “0” für alle Donx =>...
  • Seite 98: Anhang: Signalstärke

    All manuals and user guides at all-guides.com GSM-PRO 13 ANHANG: Signalstärke ANHANG: Signalstärke ANHANG: Signalstärke ANHANG: Signalstärke Appendix Signal strengths % (percentual) Remark 0,0% Too low for connectivity 3,2% Too low for connectivity 6,5% Too low for connectivity 9,7% Too low for connectivity...
  • Seite 99 All manuals and user guides at all-guides.com GSM-PRO 14 ANHANG: ANHANG: T T T T ECHNISCHE DATEN ECHNISCHE DATEN ANHANG: ANHANG: ECHNISCHE DATEN ECHNISCHE DATEN B es tell Daten B es tell Daten B es tell Daten B es tell Daten GS M-P R O 16099.2...
