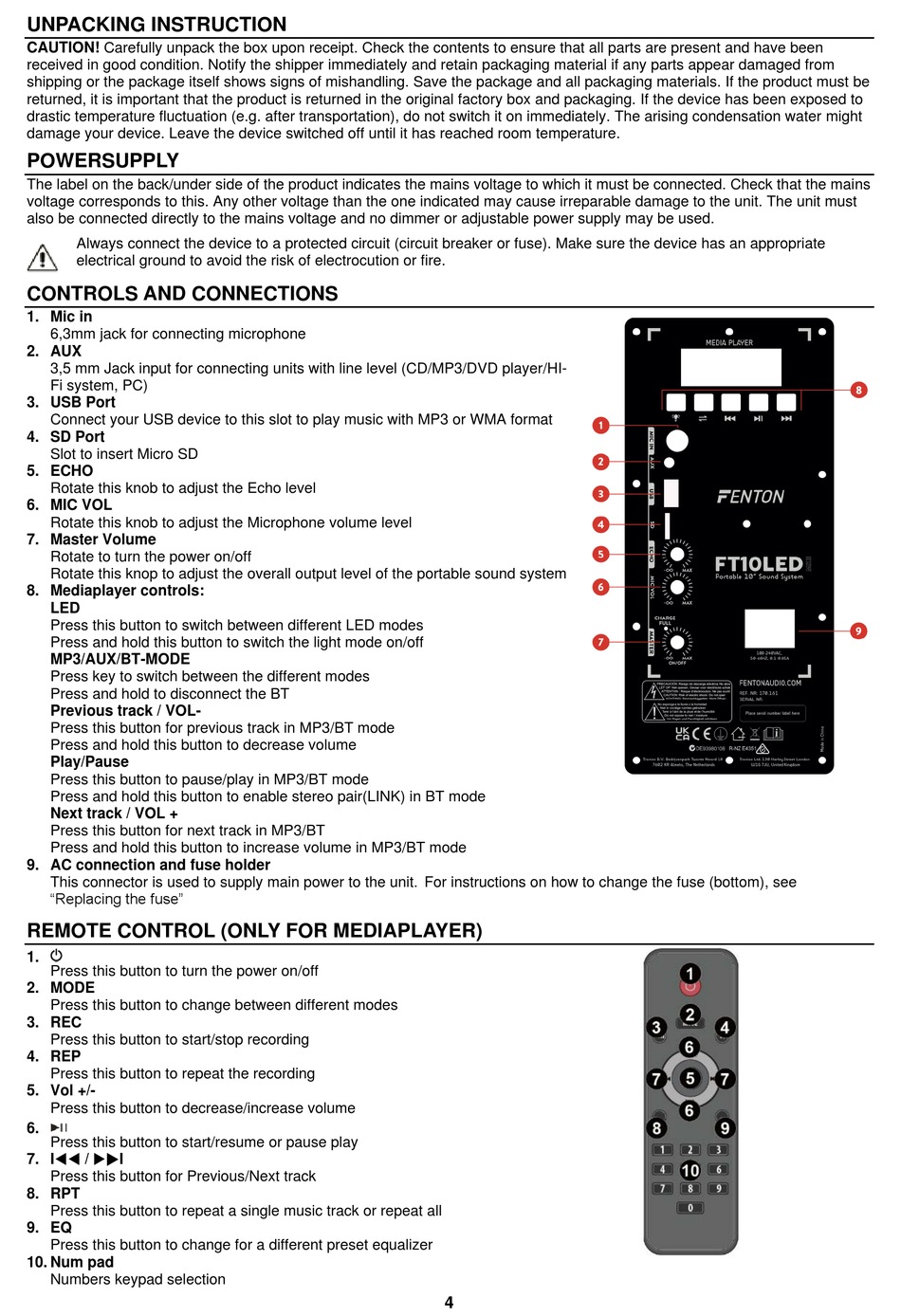

Fenton FT10LED Bedienungsanleitung Seite 4

UNPACKING INSTRUCTION
CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been
received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from
shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be
returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to
drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might
damage your device. Leave the device switched off until it has reached room temperature.
POWERSUPPLY
The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains
voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must
also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.
Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate
electrical ground to avoid the risk of electrocution or fire.
CONTROLS AND CONNECTIONS
1. Mic in
6,3mm jack for connecting microphone
2. AUX
3,5 mm Jack input for connecting units with line level (CD/MP3/DVD player/HI-
Fi system, PC)
3. USB Port
Connect your USB device to this slot to play music with MP3 or WMA format
4. SD Port
Slot to insert Micro SD
5. ECHO
Rotate this knob to adjust the Echo level
6. MIC VOL
Rotate this knob to adjust the Microphone volume level
7. Master Volume
Rotate to turn the power on/off
Rotate this knop to adjust the overall output level of the portable sound system
8. Mediaplayer controls:
LED
Press this button to switch between different LED modes
Press and hold this button to switch the light mode on/off
MP3/AUX/BT-MODE
Press key to switch between the different modes
Press and hold to disconnect the BT
Previous track / VOL-
Press this button for previous track in MP3/BT mode
Press and hold this button to decrease volume
Play/Pause
Press this button to pause/play in MP3/BT mode
Press and hold this button to enable stereo pair(LINK) in BT mode
Next track / VOL +
Press this button for next track in MP3/BT
Press and hold this button to increase volume in MP3/BT mode
9. AC connection and fuse holder
This connector is used to supply main power to the unit. For instructions on how to change the fuse (bottom), see
"Replacing the fuse"
REMOTE CONTROL (ONLY FOR MEDIAPLAYER)
1.
Press this button to turn the power on/off
2. MODE
Press this button to change between different modes
3. REC
Press this button to start/stop recording
4. REP
Press this button to repeat the recording
5. Vol +/-
Press this button to decrease/increase volume
6.
Press this button to start/resume or pause play
7. I / I
Press this button for Previous/Next track
8. RPT
Press this button to repeat a single music track or repeat all
9. EQ
Press this button to change for a different preset equalizer
10. Num pad
Numbers keypad selection
