3.3. SPLIT AIR CONDITIONERS

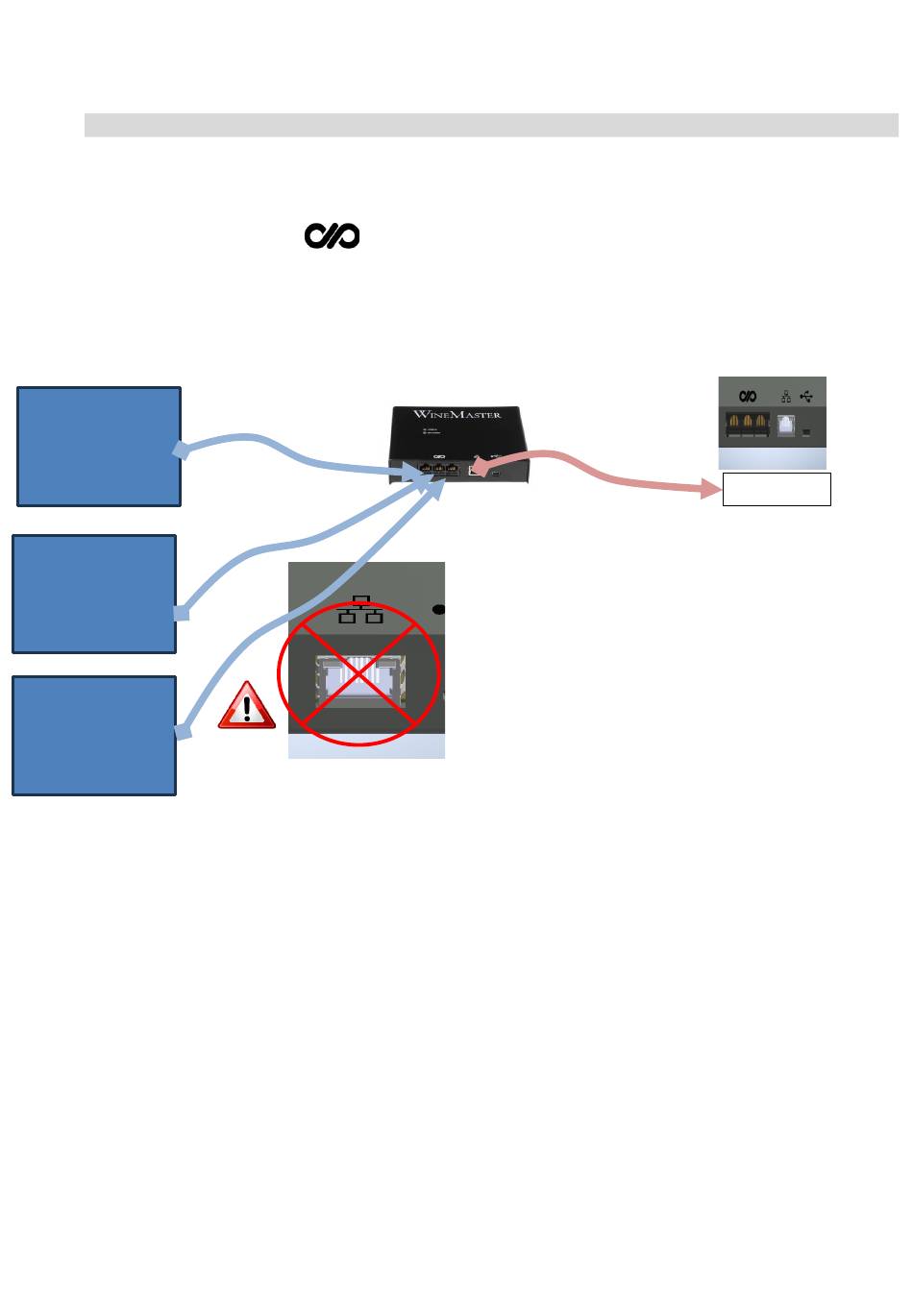

Winemaster Connect connects via an RJ45 cable (Class 6 minimum) to the indoor and outdoor unit of
your air conditioner. The RJ45 cable is installed on the connector of your air conditioner according to the
instructions for your air conditioner model. On the case, the RJ45 cables connect to any port on the
left with the symbol.
It is important to also connect the SPcontroller to the Winemaster Connect. Therefore, a total of 3 RJ45
cables are to be connected to the Winemaster Connect.
Air conditioner,
outdoor unit
WEB
Air conditioner,
Indoor Unit
SPCONTROLLER
CAREFUL
WINEMASTER CONNECT Page 14
