750 WATT 80 PLUS BRONZE NON-MODULAR ATX 3.1 POWER SUPPLY

Werbung

loading

Verwandte Anleitungen für NZXT C750 BRONZE

Inhaltszusammenfassung für NZXT C750 BRONZE

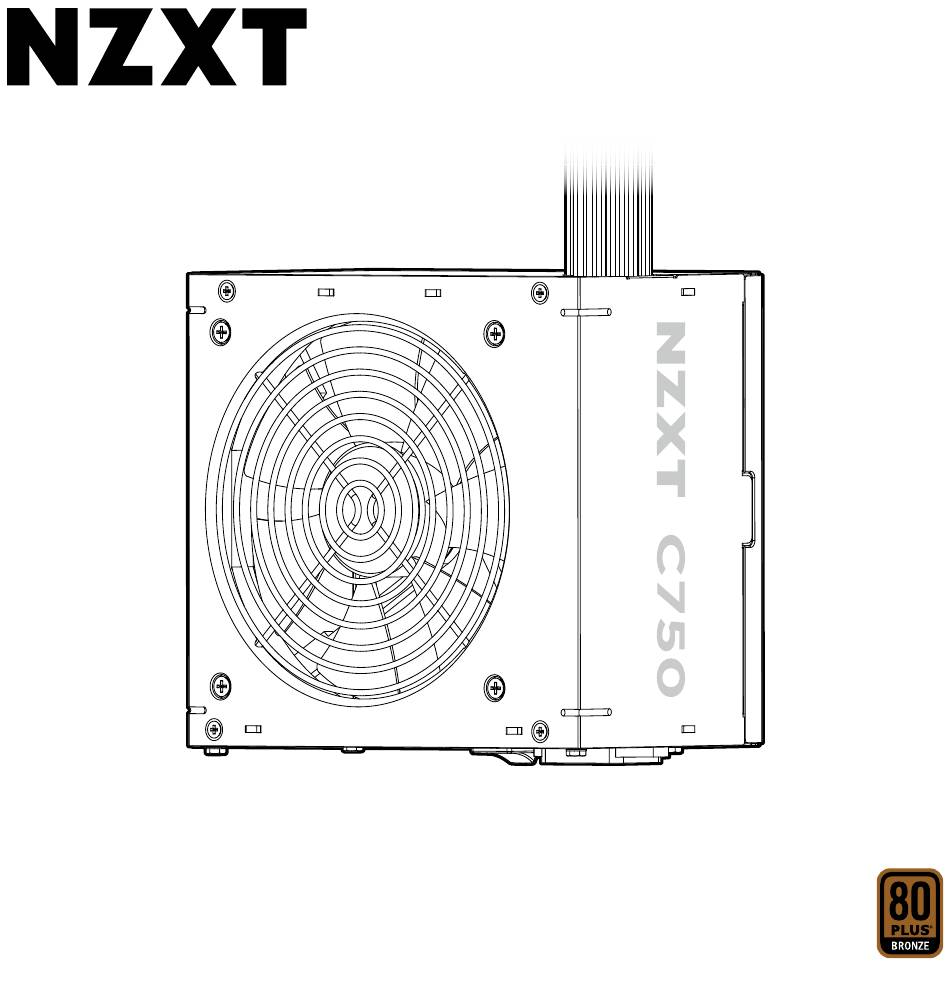

  • Seite 1 C750 BRONZE (2025) 750 WATT 80 PLUS BRONZE NON-MODULAR ATX 3.1 POWER SUPPLY...
  • Seite 2 TA B LE O F CO NT E N TS V E R S I O N 1 . 0 , 2 0 2 5 / 0 3 / 1 0 01.CO M P O N E N T LI ST .
  • Seite 3 部品リスト LISTE DES COMPOSANTS 零件表 KOMPONENTENLISTE 零件表 ELENCO DEI COMPONENTI LISTA DE COMPONENTES C750 Bronze A-5 16-pin (12+4) 12V-2x6 PCIe cable A-6 SATA cable A-1 24-pin ATX power cable A-7 Peripherals cable A-2 4+4-pin CPU power cable 6-32 screws A-3 8-pin CPU power cable...
  • Seite 4 . C750 Bronze . C750 Bronze . Cable de alimentación ATX de 24 pines . Cavo di alimentazione ATX a 24 pin A-2 . Cable de alimentación de CPU de 4+4 pines A-2 . Cavo di alimentazione CPU a 4+4 pin A-3 .
  • Seite 5 . C750 Bronze . 24 ピン ATX 電源ケーブル A-2 . 4+4 ピン CPU 電源ケーブル A-3 . 8 ピン CPU 電源ケーブル A-4 . 6+2 ピン PCIe 電源ケーブル A-5 . 16 ピン (12+4) 12V-2x6 PCIe ケーブル A-6 . SATA ケーブル A-7 . 周辺機器ケーブル...
  • Seite 6 02. INSTALLATION 6-32 screws INSTALACIÓN 설치 取り付け INSTALLATION 安装 INSTALLIEREN 安裝 INSTALLAZIONE INSTALAÇÃO STEP 1 Install the power supply into the case using the provided screws. Instale la fuente de alimentación en la caja utilizando los tornillos que se suministran. Installez le bloc d'alimentation dans le boîtier à...
  • Seite 7 A-1 24-pin ATX power cable STEP 2 Connect the 20+4-pin power to the motherboard. Conecte la alimentación de 20+4 pines a la placa base. Branchez le connecteur à 20+4 broches sur la carte mère. Schließen Sie das 20+4-polige Netzkabel an das Mainboard an. Collegare l'alimentazione a 20+4 pin alla scheda madre.
  • Seite 8 A-2 4+4-pin CPU power cable A-3 8-pin CPU power cable STEP 3 Connect the 8-pin / 4+4-pin CPU power. Conecte la alimentación de CPU de 8 pines / 4+4 pines. Branchez le(s) connecteur(s) d'alimentation processeur à 8 broches / 4+4 broches. Schließen Sie das 8-polige / 4+4-polige CPU-Kabel an.
  • Seite 9 A-5 16-pin (12+4) 12V-2x6 PCIe cable WARNING Please fully insert the cable before use. STEP 4 Option 1 To support Nvidia 40/50 Series graphics cards Connect the 16-pin PCI-E power to your graphics card as required. Conecta el cable de alimentación PCIe de 16 pines a la tarjeta gráfica según sea necesario. Branche l’alimentation PCI-e 16 broches à...
  • Seite 10 A-4 6+2-pin PCIe power cable STEP 4 Option 2 Connect the PCI-E power to your graphics card as required. Conecte la alimentación de PCI-E a su tarjeta gráfica según sea necesario. Branchez le(s) connecteur(s) d'alimentation PCI-E à votre carte graphique, en fonction de vos besoins. Verbinden Sie ggf.
  • Seite 11 A-6 SATA cable A-7 Peripherals cable STEP 5 Connect the SATA and peripheral power as needed. Conecte la alimentación periférica y de SATA según sea necesario. Branchez les connecteurs SATA et périphériques, en fonction de vos besoins. Schließen Sie SATA- und Peripheriekabel nach Bedarf an. Collegare l'alimentazione SATA e per le periferiche secondo la configurazione in uso.
  • Seite 12 AC power cord STEP 6 Connect the AC power cord to the wall and turn on the power switch. Conecte el cable de alimentación de CA a la pared y encienda el interruptor. Branchez le câble d'alimentation CA à la prise murale et mettez le bloc d'alimentation sous tension. Verbinden Sie das Netzkabel mit einer Steckdose und schalten Sie das Gerät ein.
  • Seite 13 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES GENERAL Dimensions 150 x 86 x 140 mm Wattage 750 W Form Factor ATX Version Modular Non-modular Bulk Capacitor Rating 105°C Cable Type Flat Regulation & Certification CE, UKCA, FCC, IC, BIS, NOM, BSMI, CB (IEC 62368-1 Ed. 3) , LVD (EN 62368-1 Ed. 2), RCM AC INPUT RATING 100 –...
  • Seite 14 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES OPERATION MTBF 100,000 hours Temperature 0 – 40°C ELECTRICAL FEATURES PF Correction Active @ 0.96 OVP (Over Voltage Protection), UVP (Under Voltage Protection), Protections SCP (Short Circuit Protection), OTP (Over Temperature Protection), OPP (Over Power Protection), OCP (Over Current Protection) INCLUDED CABLES CABLE LENGTH...
  • Seite 15 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES GENERAL Dimensions 150 x 86 x 140 mm Potencia 750 W Factor de forma Versión ATX Modular Sin módulos Capacidad del condensador 105°C Tipo de cable Pano Normativa y certificación CE, UKCA, FCC, IC, BIS, NOM, BSMI, CB (IEC 62368-1 Ed.
  • Seite 16 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES FUNCIONAMIENTO Tiempo medio entre fallos 100,000 hours Temperatura 0 – 40°C CARACTERÍSTICAS ELÉCTRICAS Corrección FP Activa @ 0.96 OVP (protección contra sobretensión), UVP (protección contra subtensión), Protecciones SCP (protección contra cortocircuito), OTP (protección contra sobretemperatura), OPP (protección contra sobrealimentación), OCP (protección contra sobrecorriente) DENTRO DE LA CAJA LONGITUD DEL CABLE...
  • Seite 17 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES INFORMATIONS GÉNÉRALES Dimensions 150 x 86 x 140 mm Puissance 750 W Facteur de forme Version ATX Modulaire Non modulaire Capacité du condensateur en vrac 105°C Type de câble Plat Réglementation et certification CE, UKCA, FCC, IC, BIS, NOM, BSMI, CB (IEC 62368-1 Ed.
  • Seite 18 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES FONCTIONNEMENT MTBF 100 000 heures Température 0 – 40°C CARACTÉRISTIQUES ÉLECTRIQUES Correction du facteur de puissance Active à 0,96 OVP (protection contre les surtensions), UVP (protection contre les sous-tensions), Protections SCP (protection contre les courts-circuits), OTP (protection contre les surchauffes), OPP (protection contre les surpuissances), OCP (protection contre les surintensités)
  • Seite 19 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES ALLGEMEINES Abmessungen 150 x 86 x 140 mm Stromverbrauch 750 W Formfaktor ATX-Version Modular Nichtmodular Stützkondensatorleistung 105° C Kabeltyp Flach Regulierung und Zertifizierung CE, UKCA, FCC, IC, BIS, NOM, BSMI, CB (IEC 62368-1 Ed. 3) , LVD (EN 62368-1 Ed. 2), RCM AC-EINGANGSLEISTUNG 100-240 V Wechselstrom 10 –...
  • Seite 20 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES BETRIEB Mittlere fehlerfreie Betriebszeit 100.000 Stunden Temperatur 0 – 40°C ELEKTRISCHE EIGENSCHAFTEN Blindleistungskompensation Aktiv bei 0,96 Überspannungsschutz, Unterspannungsschutz, Kurzschlussicherung, Sicherungselemente Übertemperaturschutz, Überlastschutz, Überstromschutz PACKUNGSINHALT KABELLÄNGE STECKERANZAHL 24-poliges ATX-Stromkabel 600 mm 4+4-poliges CPU-Stromkabel 700 mm...
  • Seite 21 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN SPECIFICHE 規格 ESPECIFICAÇÕES GENERALE Dimensioni 150 x 86 x 140 mm Potenza 750 W Fattore di forma Versione ATX Modular Non modulare Valutazione del condensatore di massa 105° C Tipo di cavo Piatto Regolamentazione e certificazione CE, UKCA, FCC, IC, BIS, NOM, BSMI, CB (IEC 62368-1 Ed.
  • Seite 22 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN SPECIFICHE 規格 ESPECIFICAÇÕES OPERATIVITÀ MTBF 100.000 ore Temperatura 0 – 40°C CARATTERISTICHE ELETTRICHE Correzione PF Attiva a 0,96 OVP (protezione da sovratensione), UVP (protezione da sottotensione), Protezioni SCP (protezione da cortocircuito), OTP (protezione da sovratemperatura), OPP (protezione da sovrapotenza), OCP (protezione da sovracorrente) DENTRO LA SCATOLA LUNGHEZZA DEL CAVO...
  • Seite 23 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES GERAL Dimensões 150 x 86 x 140 mm Potência 750 W Fator de Forma Versão ATX Modular Não modular Classificação do Condensador de Filtro 105°C Tipo de Cabo Plano Regulação e Certificação CE, UKCA, FCC, IC, BIS, NOM, BSMI, CB (IEC 62368-1 Ed.
  • Seite 24 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES OPERAÇÃO MTBF 100,000 horas Temperatura 0 – 40°C CARACTERÍSTICAS ELÉTRICAS Correção FP Ativa @ 0.96 OVP (Proteção contra Sobretensão), UVP (Proteção contra Subtensão), Proteções SCP (Proteção contra Curto-Circuito), OTP (Proteção contra Sobreaquecimento), OPP (Proteção contra Sobrecarga de Potência), OCP (Proteção contra Sobrecorrente) CONTEÚDO DA CAIXA COMPRIMENTO DO CABO...
  • Seite 25 03. SPECIFICATIONS 사양 ESPECIFICACIONES 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES 일반 150 x 86 x 140 mm 크기 750W 전력량 폼팩터 ATX 버전 모듈형 비모듈형 105° C 벌크 커패시터 정격 케이블 유형 평면 CE, UKCA, FCC, IC, BIS, NOM, BSMI, CB (IEC 62368-1 Ed. 3) , LVD (EN 62368-1 Ed. 2), RCM 규제...
  • Seite 26 03. SPECIFICATIONS 사양 ESPECIFICACIONES 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES 작동 MTBF 100,000 시간 0 – 40° C 온도 전기적 특징 역률 보정 0.96 에서 능동 방식 OVP( 과전압 보호 ), UVP( 저전압 보호 ), SCP( 단락 보호 ), 보호...
  • Seite 27 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES 一般仕様 外形寸法 150 x 86 x 140 mm ワッ ト数 750 W フォームファクタ ATX バージョン モジュラー 直付け （ノンモジュラー） バルクコンデンサ定格 105 ° C ケーブルの種類 フラッ ト 規則および認証 CE, UKCA, FCC, IC, BIS, NOM, BSMI, CB (IEC 62368-1 Ed. 3) , LVD (EN 62368-1 Ed. 2), RCM AC 定格入力...
  • Seite 28 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES オペレーシ ョン 10 万時間 MTBF 動作温度 0 – 40 ° C 電気的特性 アクティブ @ 0.96 OVP （過電圧保護） UVP （電圧不足保護） SCP （短絡保護） 保護 OTP （過熱保護） OPP （過電力保護） OCP （過電流保護） 箱の中身...
  • Seite 29 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES 一般 尺寸 150 x 86 x 140 mm 功率 750 W 规格尺寸 ATX 版本 模组 非模组 大容量电容器额定温度 105° C 线材类型 扁平 法规和认证 CE, UKCA, FCC, IC, BIS, NOM, BSMI, CB (IEC 62368-1 Ed. 3) , LVD (EN 62368-1 Ed. 2), RCM 交流输入额定值...
  • Seite 30 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES 运行 平均无故障工作时间 100,000 小时 温度 0 – 40° C 电气特性 功率因数校正 主动 @ 0.96 OVP（过压保护），UVP （欠压保护），SCP （短路保护）， 保护 OTP（过温保护），OPP （过功率保护），OCP（过流保护） 装箱清单 线材长度 接口数量 24- 针 ATX 电源线 600 mm 4+4- 针...
  • Seite 31 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES 一般資訊 尺寸 150 x 86 x 140 mm 功率 750 W 主機板規格 ATX 版本 模組設計 非模組化 大容量電容器等級 105° C 纜線類型 平扁 法規和認證 CE, UKCA, FCC, IC, BIS, NOM, BSMI, CB (IEC 62368-1 Ed. 3) , LVD (EN 62368-1 Ed. 2), RCM AC 輸入額定功率...
  • Seite 32 03. SPECIFICATIONS ESPECIFICACIONES 사양 仕様 SPÉCIFICATIONS 规格 TECHNISCHE DATEN 規格 SPECIFICHE ESPECIFICAÇÕES 運作 MTBF 100,000 小時 溫度 0 – 40° C 電學特徵 PF 校正 Active @ 0.96 OVP ( 過電壓保護 )、UVP ( 低電壓保護 )、SCP ( 短路保護 )、 保護 OTP ( 過溫度保護 )、OPP ( 過功率保護 )、OCP ( 電流超載保護 ) 內容物...
  • Seite 33 NZXT's sole obligation and liability under this warranty is limited to the repair or replacement of a defective product with either a new or refurbished product with a similar function that is equal or greater in value at our option. NZXT shall not, in any event, be liable for any incidental or consequential damage, including but not limited to damages resulting from interruption of service and loss of data, business, or for liability in tort relating to this product or resulting from its use or possession.
  • Seite 34 Within the first 60 days after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions.
  • Seite 35 NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval. The cost of shipping will be borne at the first instance by you; however, if the purchased item is defective, NZXT will reimburse reasonable postage or transportation of costs.
  • Seite 36 REACH (Registration, Evaluation, Authorization and Restriction of Chemicals, EC 1907/2006) is the European Union's (EU) chemical substances regulatory framework. REACH requires NZXT Inc. to provide customers with sufficient information on Substances of Very High Concern (SVHC) contained in products in concentration above 0.1% weight by weight (w/w) to allow safe use of the product.
  • Seite 37 DECLARAŢIE DE CONFORMITATE Dispozitivul respectă cerinţele menţionate în Directivele Consiliului şi în legislaţia armonizată relevantă la nivelul Uniunii: (EU): • Directiva privind compatibilitatea electromagnetică 2014/30/ • 2014/30/EU • Directiva privind tensiunea joasă 2014/35/UE • 2014/35/EU • Directiva RoHS 2011/65/UE şi (UE) 2015/863 •...
  • Seite 38 NZXT will comply with the product take back requirements at the end of life of NZXT-branded products that are sold into the EU. You can return these products to local collection points.
  • Seite 39 I M POR TAN T SAF E T Y IN FO R M AT I O N C AUTIO N E LE CT R IC S H OC K HA Z A RD ! 1 . Install in accordance with all manufacturer instructions and safety warnings. Failure to do so may result in damage to your power supply or system, and may causes serious injury or death.
  • Seite 40 I N FOR M AT IO NS IM P OR TA N T E S DE S É C U RI T É ATT EN T IO N : R ISQ U E D ' É L E C T R O CU T I O N ! 1 .
  • Seite 41 I N FOR M AZ I ON I IM P OR TA N T I S UL LA S I CU RE ZZ A AVVER TEN Z A : P E R ICO LO D I S COSSE E L E T T RI CH E 1 .
  • Seite 42 중 요 한전 정 보 주 의: 감 전의 위 험 이 있 음 ! 제조업체의 지침을 따르고 안전 경고에 유의하며 설치하십시오. 그렇지 않으면 파워 서플라이 또는 본체가 손상을 입거나 심각한 부상 . 또는 사망으로 이어질 수 있습니다. 파워 서플라이는 높은 전압의 전류가 흐릅니다. 파워...
  • Seite 43 重 要安 全信 息 注 意触 电危 险 ！ 1 . 请按照所有制造商说明和安全警告进行安装。 否则，可能会对您的电源或系统造成损害，甚至可能导致人员伤亡。 2 . 电源中存在高压。 切勿打开电源外壳或者尝试修复电源；没有用户可维护的部件。 3 . 本产品仅限室内使用。 4 . 切勿在有水或高温或高湿度环境下使用电源。 5 . 安装位置切勿靠近任何热源，如散热器、热量记录器、烤箱或其他发热的家电。 6 . 切勿在电源的通风口或风扇格栅区域中插入任何物体。 7 . 切勿修改此电源随附的电缆和/或接头。 8 . 如果此电源使用模块化电缆，请仅使用制造商提供的电缆。 9 . 24 针主电源连接器有一个可拆卸的 4 针接口。 此...
  • Seite 44 06. 限用物质及元素列表/限用物質及元素清單 ROHS COMPLIANCE 产品名称：电源供应器 型號（型式）：PS-2404, PA-7B3BB-US, PA-7B3BB-EU, PA-7B3BB-UK, PA-7B3BB-AU 有害物质及其化学符号 六价鉻 多溴联苯 多溴二苯醚 铅 汞 鎘 Hexavalent Polybrominated Polybrominated 単元Ｕnit Lead Mercury Cadmium chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr+6) (PBB) (PBDE) 外壳 × ○ ○ ○ ○ ○...
  • Seite 45 06. 限用物质及元素列表/限用物質及元素清單 ROHS COMPLIANCE 設備名稱：電源供應器 型號（型式）PS-2404, PA-7B3BB-US, PA-7B3BB-EU, PA-7B3BB-UK, PA-7B3BB-AU 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Hexavalent Polybrominated Polybrominated 單元Ｕnit Lead Mercury Cadmium chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr+6) (PBB) (PBDE) 外殼...
  • Seite 46 Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, designer@nzxt.com. Lastly we would like to thank you for your support by purchasing this product. For more information about NZXT, please visit us online. NZXT Website: NZXT.com SO P O RT E Y S E RV I CI O Si tiene preguntas o problemas con el producto NZXT que usted compró, no dure en ponerse en contacto con service@nzxt.com y suministrar...
  • Seite 47 Para comentários e sugestões, contacte a nossa equipa de design através do endereço de e-mail, designer@nzxt.com. Obrigado por ter adquirido um produto NZXT. Para mais informações acerca da NZXT, visitenos online. Web site da NZXT: NZXT.com 지 원 및 서비스...
  • Seite 48 NZXT, Inc. | 605 E Huntington Drive, Suite 213, Monrovia, CA 91016 USA NZXT Europe GmbH | Ammerthalstrasse 32 Kirchheim bei Muenchen 85551, Germany NZXT UK Ltd. | First Floor 5 Fleet Place London EC4M 7RD, GB United Kingdom +1 (800) 228-9395 / service@nzxt.com / nzxt.com...
