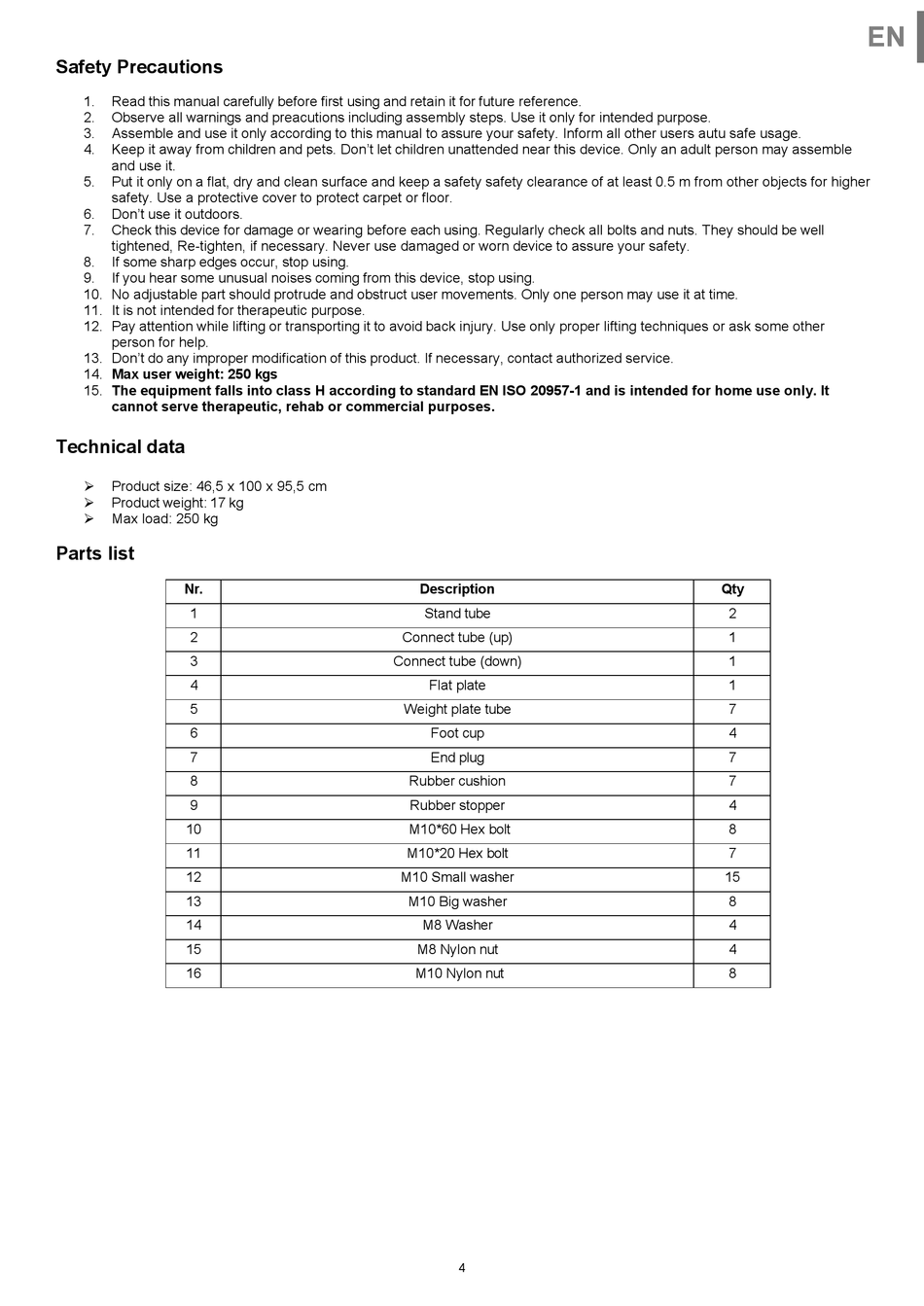

Safety Precautions

1. Read this manual carefully before first using and retain it for future reference.
2. Observe all warnings and preacutions including assembly steps. Use it only for intended purpose.
3. Assemble and use it only according to this manual to assure your safety. Inform all other users autu safe usage.
4. Keep it away from children and pets. Don't let children unattended near this device. Only an adult person may assemble
and use it.
5. Put it only on a flat, dry and clean surface and keep a safety safety clearance of at least 0.5 m from other objects for higher
safety. Use a protective cover to protect carpet or floor.
6. Don't use it outdoors.
7. Check this device for damage or wearing before each using. Regularly check all bolts and nuts. They should be well
tightened, Re-tighten, if necessary. Never use damaged or worn device to assure your safety.
8. If some sharp edges occur, stop using.
9. If you hear some unusual noises coming from this device, stop using.
10. No adjustable part should protrude and obstruct user movements. Only one person may use it at time.
11. It is not intended for therapeutic purpose.
12. Pay attention while lifting or transporting it to avoid back injury. Use only proper lifting techniques or ask some other
person for help.
13. Don't do any improper modification of this product. If necessary, contact authorized service.
14. Max user weight: 250 kgs
15. The equipment falls into class H according to standard EN ISO 20957-1 and is intended for home use only. It
cannot serve therapeutic, rehab or commercial purposes.

Technical data

Product size: 46,5 x 100 x 95,5 cm

Product weight: 17 kg

Max load: 250 kg


Parts list

Nr.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Description
Stand tube
Connect tube (up)
Connect tube (down)
Flat plate
Weight plate tube
Foot cup
End plug
Rubber cushion
Rubber stopper
M10*60 Hex bolt
M10*20 Hex bolt
M10 Small washer
M10 Big washer
M8 Washer
M8 Nylon nut
M10 Nylon nut
4
EN
Qty
2
1
1
1
7
4
7
7
4
8
7
15
8
4
4
8
