8
PRESS
Press "GRAB"
area while assembling
E.1
11
LAN
1.

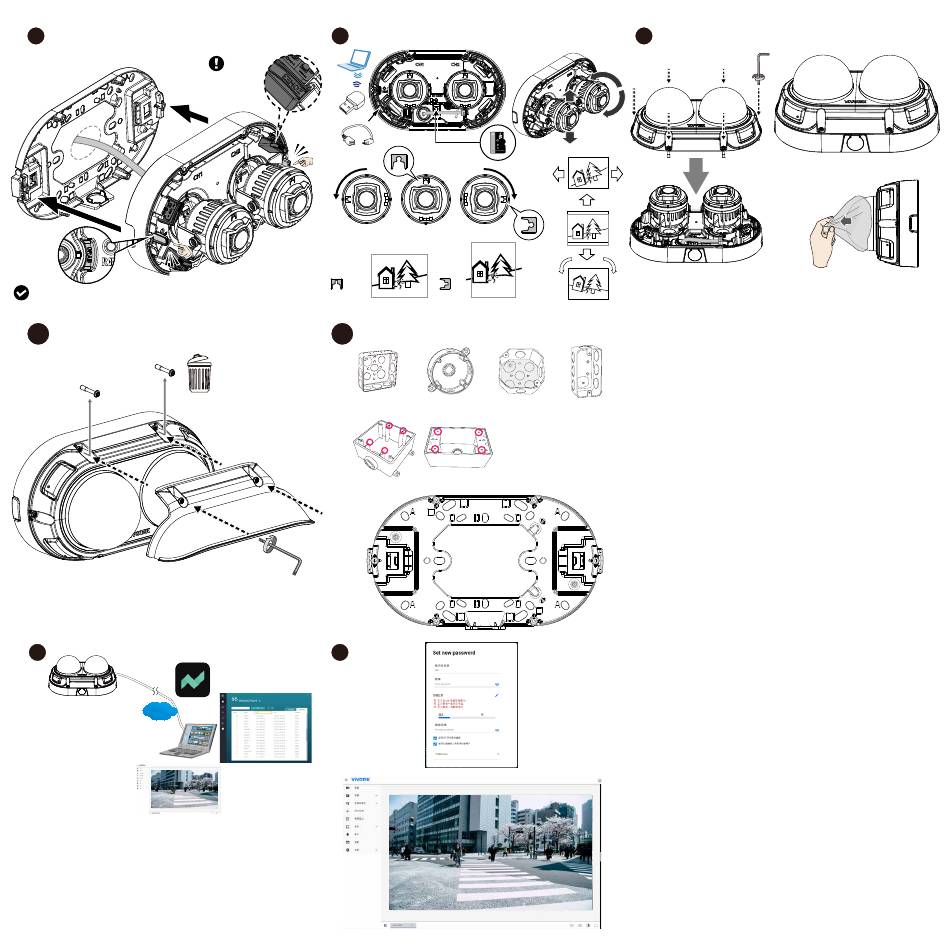

After connecting the network camera to the PoE network switch, run the VIVOTEK Shepherd
app to search for the IP location of the network camera.Then, enter the camera's webpage.
2.
Please download the Shepherd program from the VIVOTEK website https://www.vivotek.com/
Shepherd.
1.
請於 VIVOTEK 網頁 https://www.vivotek.com/Shepherd 下載 Shepherd 程
式。
2.
將網路攝影機連接上 PoE 網路交換機後，執行晶睿通訊 Shepherd 程式搜尋
該網路攝影機的 IP 位置，並進入該攝影機的網頁。
9
Don't touch!
"ZONE 1~4"
WiFi dongle
Micro B
converter
PRESS
HORIZONTAL
E.2
1
4-11/16" square gang box
5
12
Shepherd
1
2
3
VERTICAL
2
3
4
4" square and round box
4" octagon box
1" single gang box
Cantex 3/4" type FSE 2 Gang, Outdoor/Indoor electrical box
Generic 3/4" conduit box enclosure, 3/5 holes
1
1
2
2
5
5
4
3
3
5
4
5
2
2
1
1
10
Software operation
1.
When logging into the camera's webpage for the first time, you need to set a
password according to the password rules.
2.
After logging in to the camera web page, you can see the camera page.
軟體操作
1. 首次登入攝影機的網頁，需要依照密碼規範設定密碼。
2. 登入攝影機網頁後，即可看到攝影機頁面。
Function description of the icon buttons at the bottom of the page (from left to right)
1.
Play/Pause: Playback mode
2.
Video streaming mode
3.
Volume
4.
Snapshot: Capture the current picture
5.
Color mode: Switch between color and black/white
6.
Fullscreen
頁面下方圖示按鈕功能說明 ( 由左至右 )
1. 播放 / 暫停：播放模式
2. 影像串流：影像串流類別
3. 音量
4. 快照：擷取當下圖片
5. 色彩模式：切換彩色 / 黑白
6. 全螢幕
