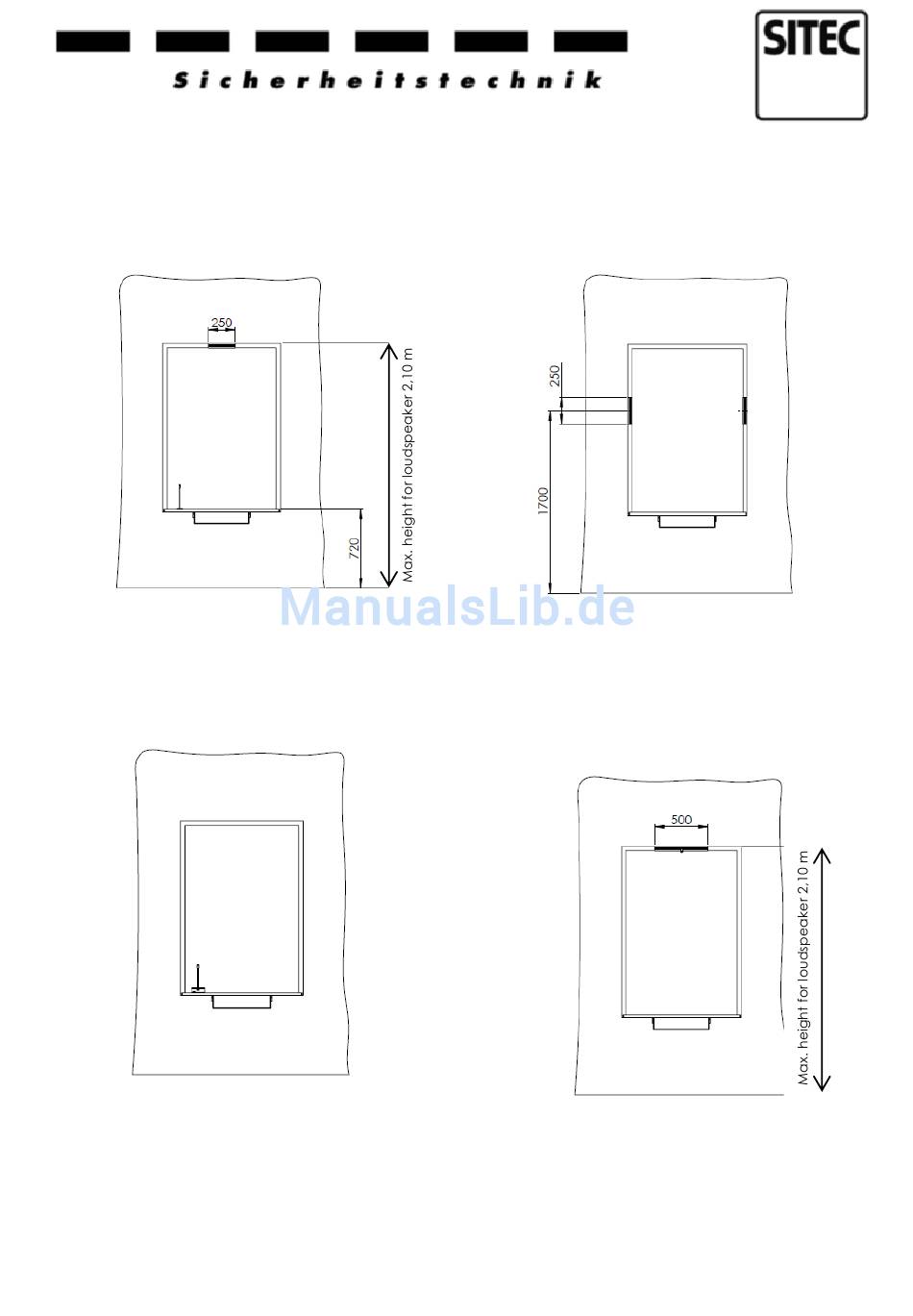

Example of installation on customer's side (outside)

Swan-Neck Microphone Microphone in Delta Three-Panel-Strip
(in the desk) - Art.-No. 200 206 (left side of the window) - Art.-No. 200 214
Loudspeaker in Delta Three-Panel-Strip Loudspeaker in Delta Three-Panel-Strip
(on the upper side of the window) Art.-No. 200 232 (right side of the window) - Art.-No. 200 232
Delta 2.0 Extension with integrated Swan-neck- Delta 2.0 Extension with Microphone and
Microphone, Loudspeaker and call button Loudspeaker in Three-Panel-Strip
Art.-No. 200 140 (on the upper side of the window)
Art.-No. 200 145
