Dune HD Blue Smart D1 Handbuch Seite 7

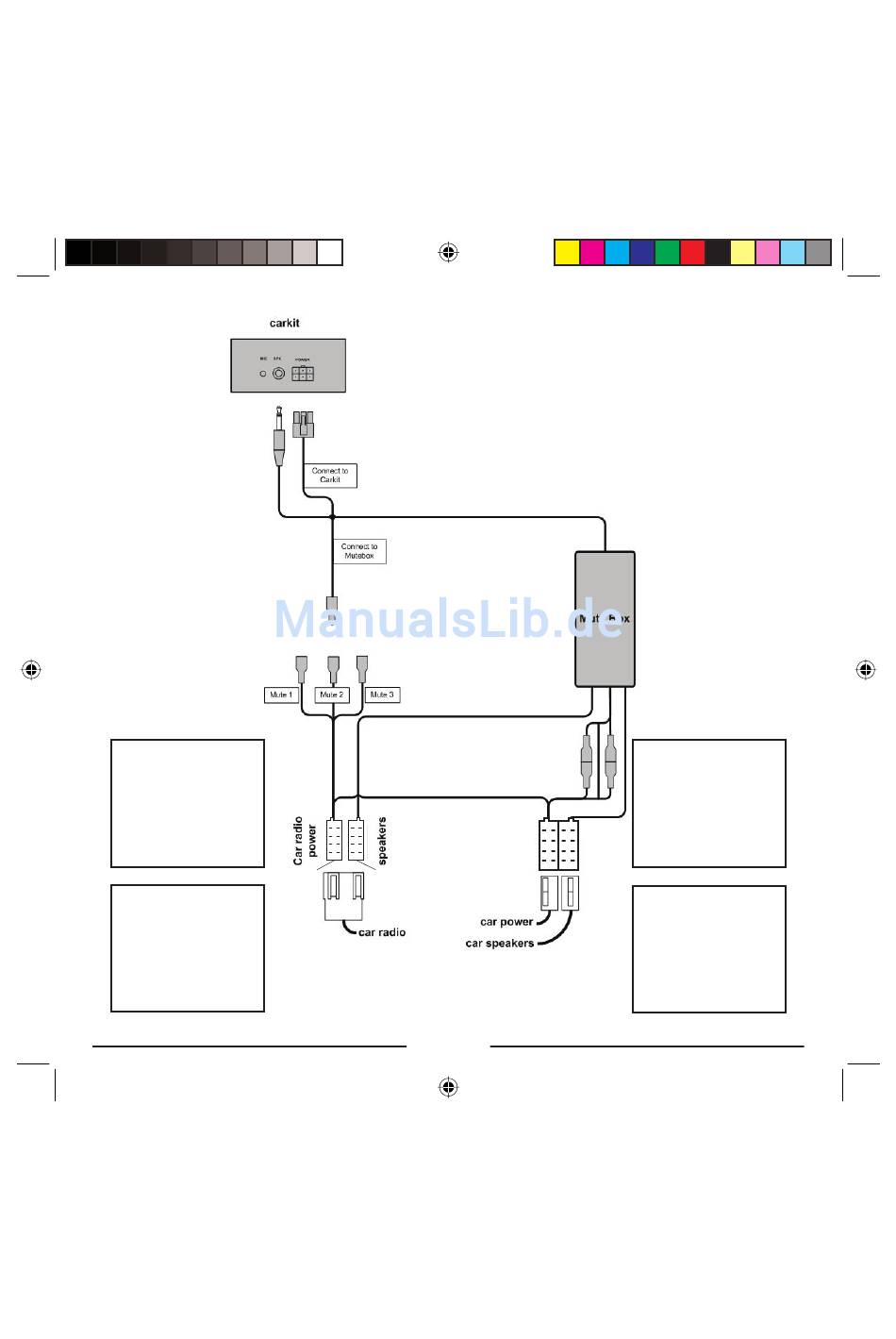

POWER / MUTE Y1
1. Yellow\Green.
2. Black.
3. Blue.
4. Violet.
5. Green.
6. Yellow.
7. White.
8. Brown.
SPEAKERS Y2
1. Green.
2. Yellow\Green.
3. White.
4. White.
5. Brown.
6. Brown.
7. Violet.
8. Violet.
m_BlueSmart_D.indd 7 m_BlueSmart_D.indd 7
8 7 8 7
6 5 6 5
4 3 4 3
2 1 2 1
Y1 Y2
D - 7
POWER / MUTE
1. Blue + Yellow.
2. Black.
3. Blue.
4. Violet.
5. Green.
6. Yellow + Yellow\Green.
8 7 8 7
7. White.
X1 X2
6 5 6 5
8. Brown.
4 3 4 3
2 1 2 1
SPEAKERS
1. Green.
2. Yellow\Green.
3. White.
4. White.
5. Brown.
6. Brown.
7. Violet.
8. Violet.
X1
X2
