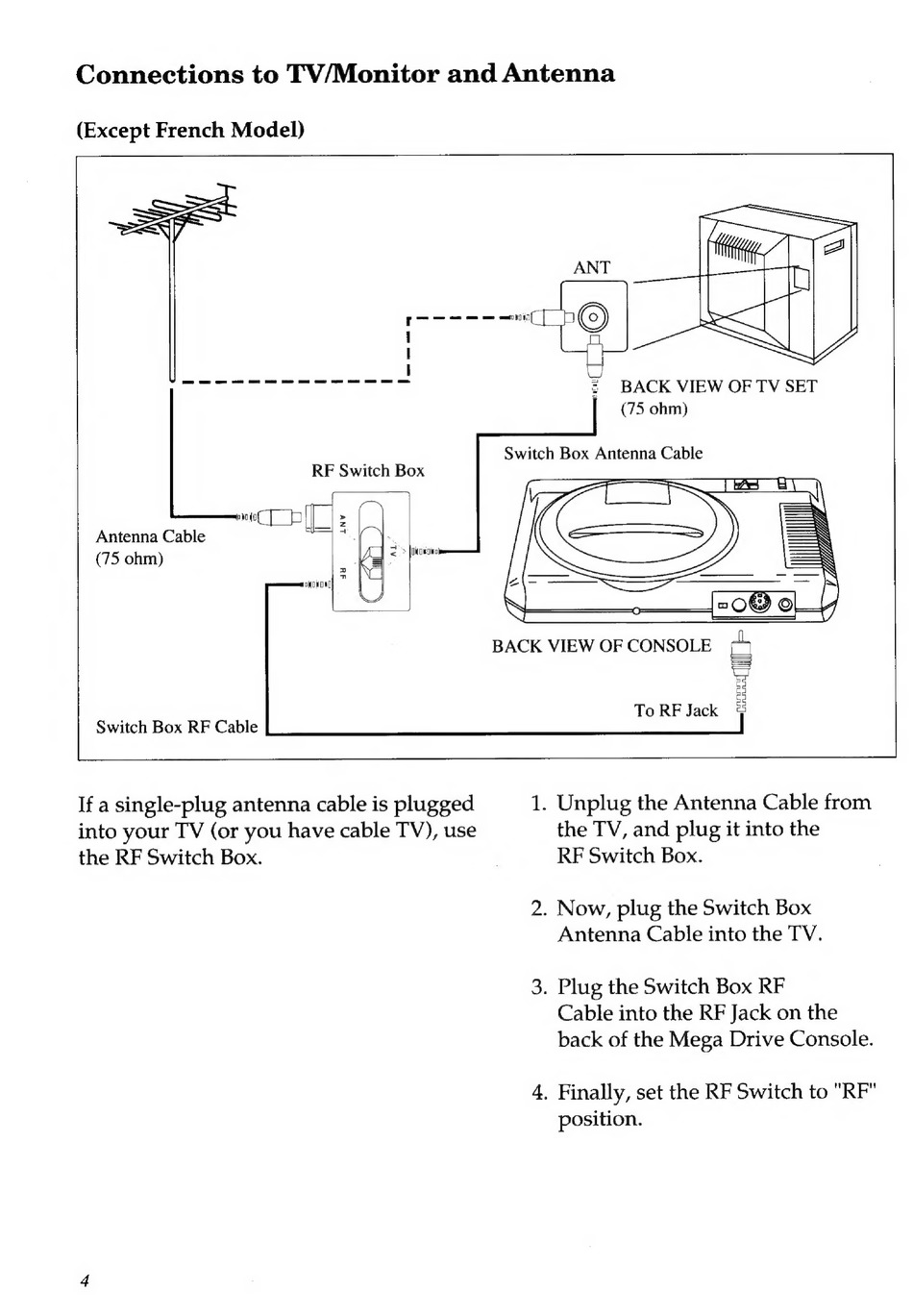

Connections to TV/Monitor and Antenna
(Except French Model)
green
I wi
YT ee a a rca = = BACK VIEW OF TV SET
(75 ohm)
Switch Box Antenna Cable
RF Switch Box
ewioC | ) [
Antenna Cable wi
(75 ohm)
HN =
BACK VIEW OF CONSOLE
To RF Jack
Switch Box RF Cable
Ha
If a single-plug antenna cable is plugged . Unplug the Antenna Cable from
into your TV (or you have cable TV), use the TV, and plug it into the
the RF Switch Box. RF Switch Box.
2. Now, plug the Switch Box
Antenna Cable into the TV.
Qo
. Plug the Switch Box RF
Cable into the RF Jack on the
back of the Mega Drive Console.
4. Finally, set the RF Switch to "RF"
position.
