DVB-S2 REC11
Digital satellite receiver
Package contents
• Digital satellite receiver
• Remote control (incl. AAA battery)
Description
The digital satellite receiver is a device intended for
the reception of digital satellite programmes using a
satellite antenna.

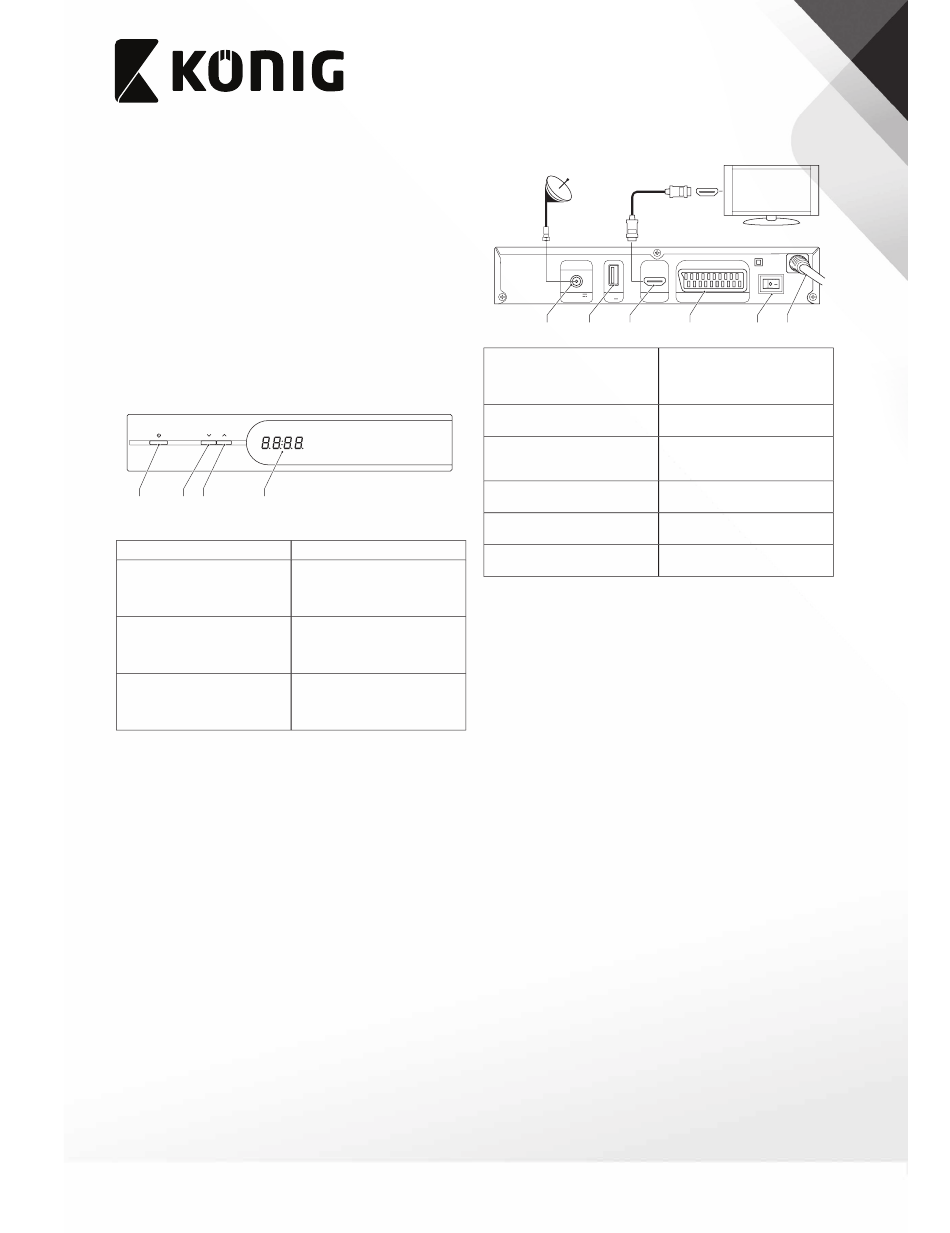

Front panel
2 4 3 1
1. Display
2. On/standby button
3. Up button
4. Down button
All manuals and user guides at all-guides.com
• Press the button to switch on the
device.
• Press the button again to set the
device to standby mode.
• Press the button to go to the next
channel.
• Press the button to move to a
higher item in the menu.
• Press the button to go to the
previous channel.
• Press the button to move to a
lower item in the menu.
3 3
Rear panel
LNB IN
13/18V USB
HDMI
400mA max. (5V --- )
7 8 9
5. On/off switch
6. Mains cable
7. Satellite antenna input
8. USB input
9. HDMI output
10. SCART output
English
100-240V~
50/60Hz
MAX. 25W
OFF ON
TV
10 5 6
• To switch on the device, set the
on/off switch to the "I" position.
• To switch off the device, set the
on/off switch to the "O" position.
• Connect the mains cable to the
mains.
• Connect a satellite antenna to the
satellite antenna input using an
antenna cable.
• Connect a USB device to the USB
input using an USB cable.
• Connect a TV to the HDMI output
using an HDMI cable.
• Connect a TV to the SCART
output using a SCART cable.
