Kicker 48KMA1502 Benutzerhandbuch Seite 3

core conductor
source unit
high-level speaker
outputs
+
–

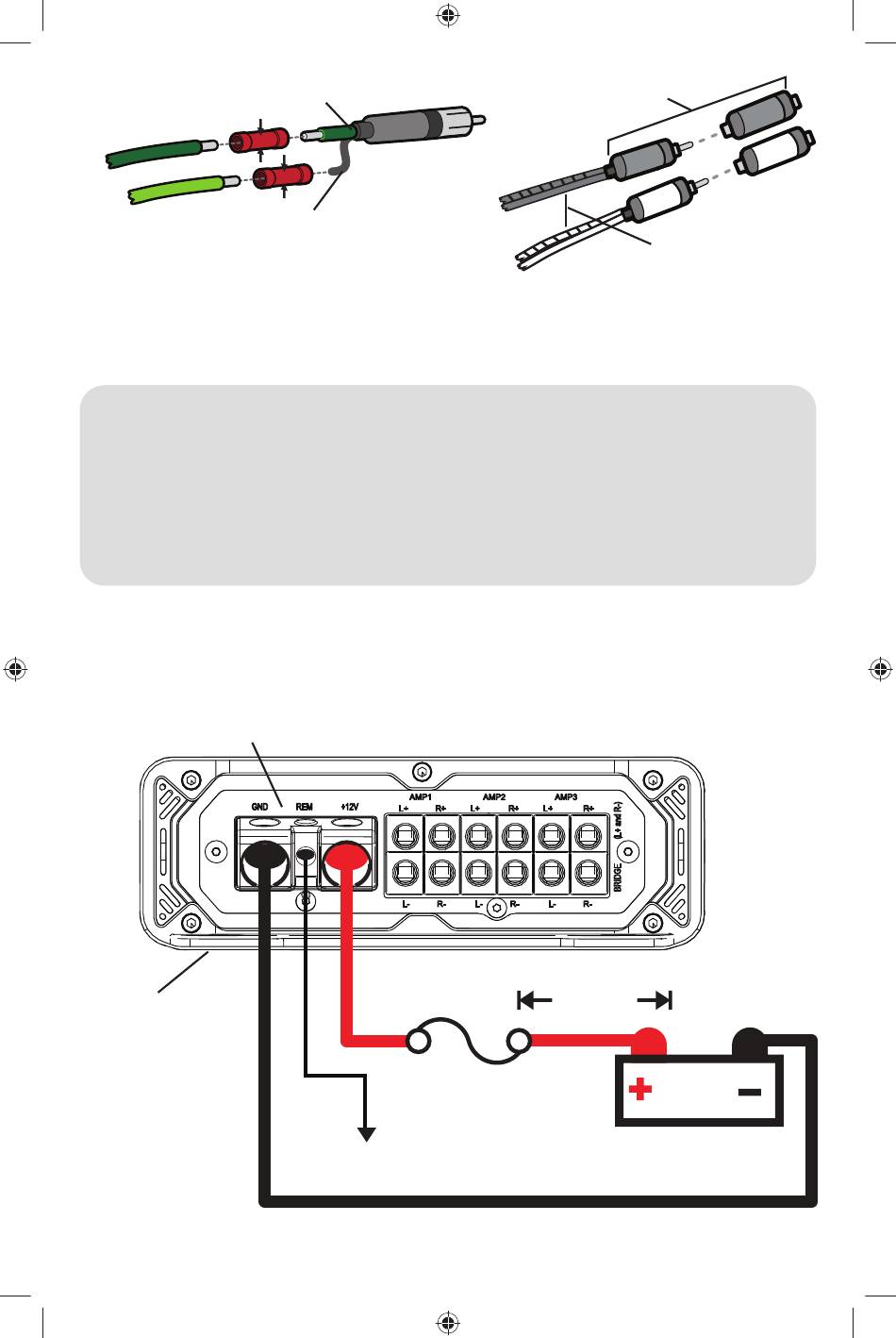

Install a fuse within 7" (18cm) of the battery and in-line with the power cable connected to your amplifi er.
Model External Fuse
(sold separately)
KMA150.2 1 x 40 Ampere
KMA360.4 1 x 60 Ampere
KMA600.4 1 x 80 Ampere
KMA600.6 1 x 80 Ampere
POWER WIRING
ABYC-compliant power terminals
aluminum bottom
plate
2021 KMA MultiChannel Amps Rev D.indd 3 2021 KMA MultiChannel Amps Rev D.indd 3
to amplifi er
shield
Power/Ground Wire
8 Gauge
8 Gauge
4 Gauge
4 Gauge
external fuse
remote turn-on (see page 6)
KICKER KISL (optional)
OR
KICKER Wiring Kit
KMPK8, PK8, CK8
KMPK8, PK8, CK8
KMPK4, PK4, CK4
KMPK4, PK4, CK4
Amplifi er uses 304-stainless steel
screws and conformal coated PCB
for increased weather resistance
≤7"
(18cm)
battery
to amplifi er
from source unit high-
level speaker outputs
12V
3
