Seite 1

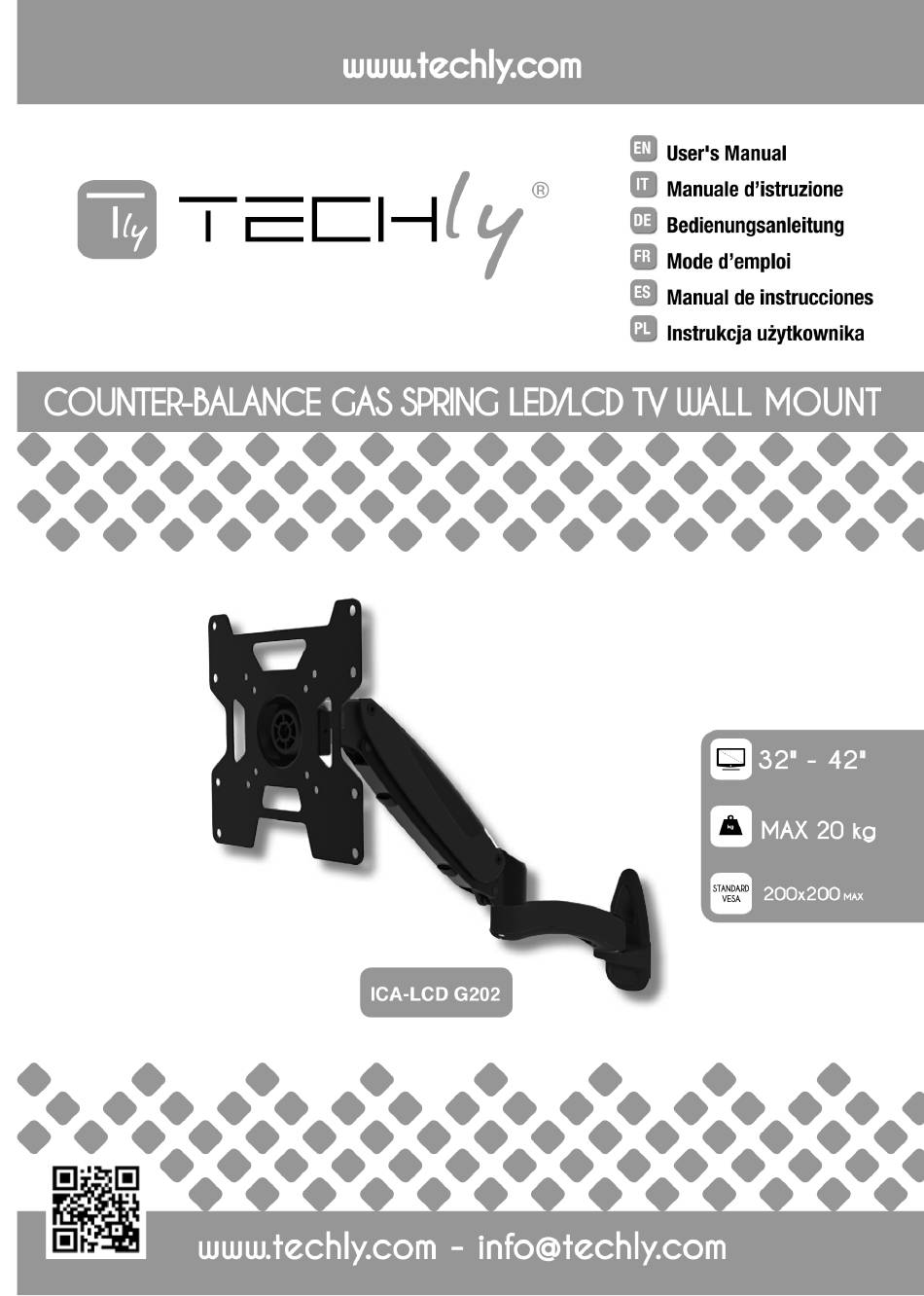

User's Manual Manuale d'istruzione Bedienungsanleitung Mode d'emploi Manual de instrucciones Instrukcja uiytkownika COUNTER-BALANCE GAS SPRINGLED/LCD WALL MOUNT MAX 20 kg STANDARD 200000 ICA-LCD G202 www.techly.com - info@techly.com...
Seite 2
COUNTER-BALANCE GAS SPRING TECH LED/LCD TV WALL MOUNT Dear Customer, GentileCliente, Sehr geehrter Kunde, thanks for choosing a Techly product. danke, dass Sie sich für ein Produkt grazie per aver scelto un prodotto Techly. von Techly entschieden haben. Unpacking Instructions...
Seite 3
LED/LCD TV WALL MOUNT CherClient, Estimado Cliente, SzanownyKliencie, nous vous remercions d'avoir choisi un dziekujemy za wybör produktöw gracias por haber elegido un producto produit Techly. Techly. Techly. Instructions de désemballage Instrucciones desembalaje Rozpakowywanie Ouvrir l'emballage avec soin, vider le carton •...
Seite 4
COUNTER-BALANCE GAS SPRING TECH LED/LCD TV WALL MOUNT ssssss CA-LCD C I IA - SOLD SEPARATELY 8 mm wwutechly.com...
Seite 5
COUNTER-BALANCE GAS SPRING TECH LED/LCD TV WALL MOUNT 30mm(12") ø3mm 0.12 ø 8mm 0.31") wwutechly.com...
Seite 6
COUNTER-BALANCE GAS SPRING TECH LED/LCD TV WALL MOUNT Insert extension arm (c) to the wall plate (a). Insert the screw (B3) through the hole from extension arm to the decorat've cap (84). Inserire il braccio di estensione (c) alla placca a muro (a). Inserire la vite la vite (83) tramite il braccio di estensione fino al tappo decorativo (84).
Seite 7
COUNTER-BALANCE GAS SPRING TECH LED/LCD TV WALL MOUNT Recessed surface installation: Put 4 spacers (Bl) between faceplate (b) and monitor Install 4 screws (A2, A4, A6, A8) through faceplate, spacers to monitor via mounting holes. Montaggio con distanziatori: posizionare i 4 distanziatori (81) tra l'attacco della staffa (b) e il retro del monitor.
Seite 8
COUNTER-BALANCE GAS SPRING TECH LED/LCD TV WALL MOUNT =3mm EN Use a hex wrench to adjust the damp for swiveling. Turn counter-clockwise to reduce damping and clockwise to increase Insert cables into cable covers. Leave enough slack of cables at arm damping.
