ledscom LC-EL-154 Montagehinweise Seite 5

1. Disconnect the building-side connecting
cable from the power supply and secure it
against being switched on again. To do
this, trip the corresponding circuit breaker
of the house installation.
2. Open the light (1) by loosening the four
screws (2) on the top of the light. Then
carefully lay the frame (3), the washer (4)
and the sealing ring (5) to one side so that
they cannot be damaged.
3. Insert the bulb using the vacuum suction
cup.
4. Close the housing and retighten the four
screws (2). When inserting the washer (4),
make sure that the white-coated side is
facing downwards and that the sealing ring
(5) is in good contact all the way around.
5. Connect the connection cable of the
luminaire to the connection cable on the
building side. The cables must be
connected in a watertight manner (e.g. with
a cable sleeve).
6 Now place the installation pot (6) and the
light (1) in the installation opening.
7. Turn the power back on. The installation
is now complete.
Subject to technical changes
LEDs Com GmbH, Dohrweg 2a, D-41066 Mönchengladbach, www.leds-com.de, Tel. +49 (0) 2161 - 5 75 99 76
English

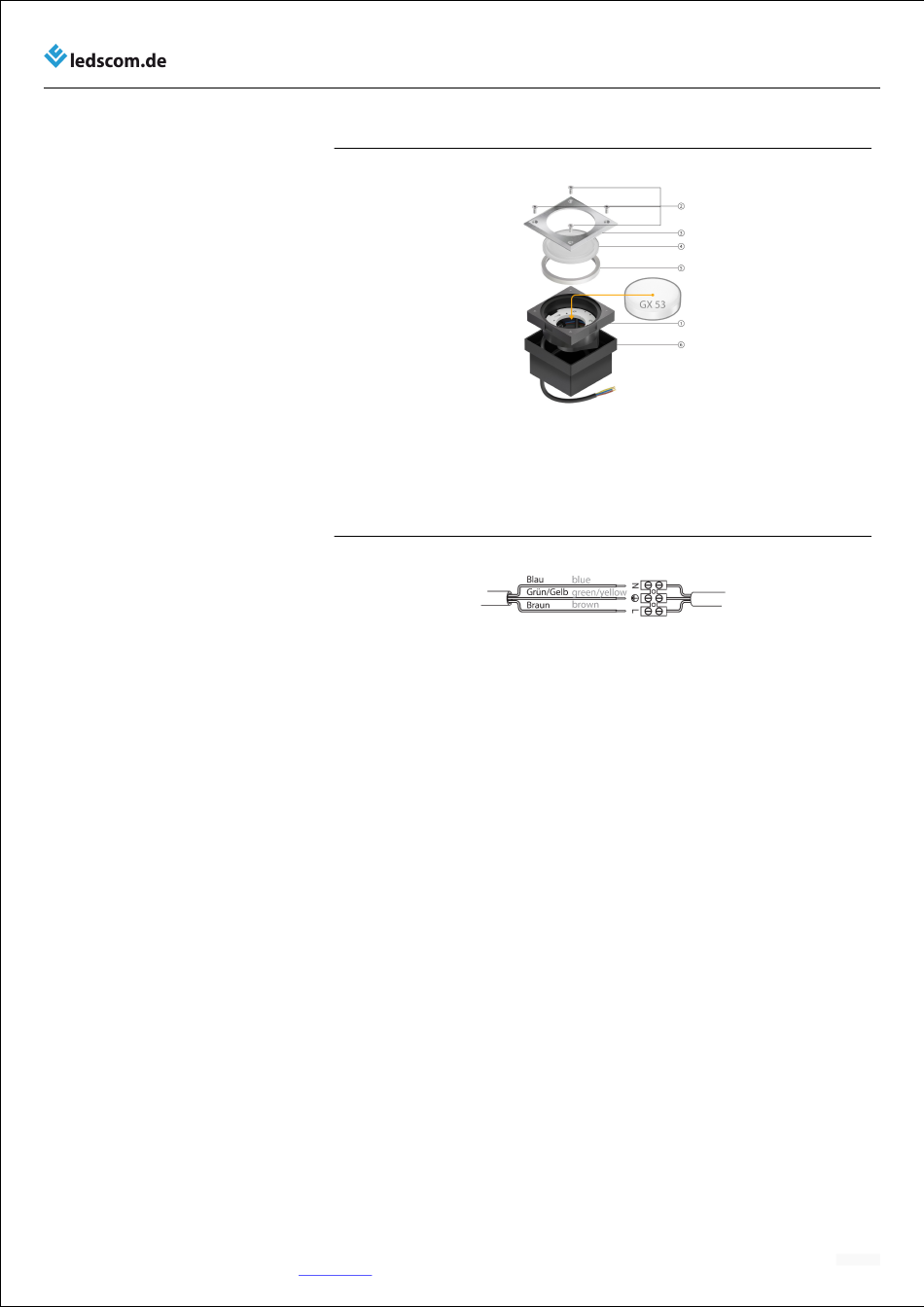

Figure 1
1: Luminaire
2: Screws
3: Frame
Figure 2
Paving stone (LC-EL-154) - Assembly instructions
4: Slice
5: Sealing ring
6: Installation pot
02/2024
