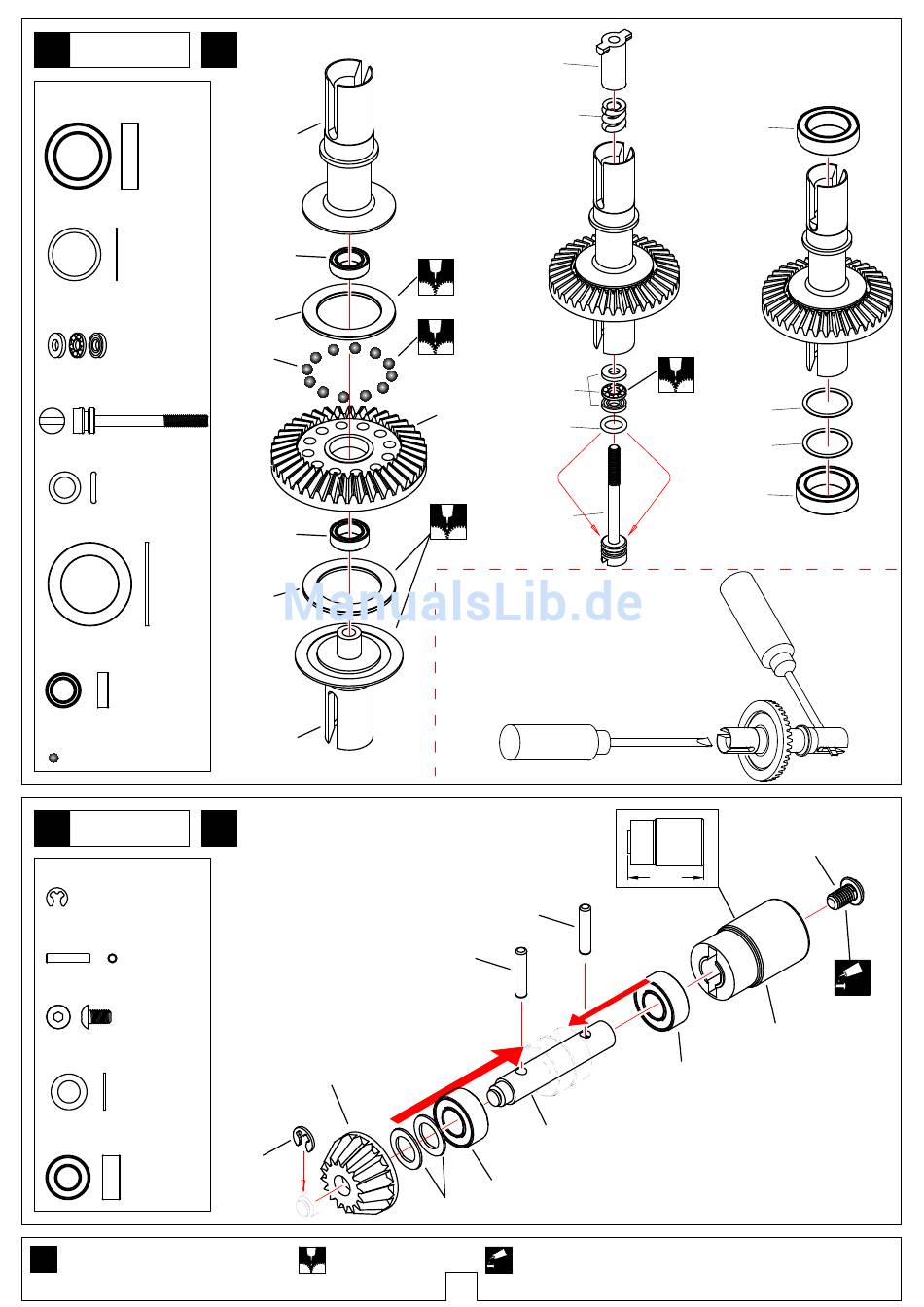

F/R Differential
V/H Differential
T02099 10x15x4 Ball Bearing
Kugellager
............4
TR4057 10x12x0.2 Washer
Beilagscheibe
..................4
T02050 2.6x6x3 Stop push
ball bearing
Diff Drucklager
..................2
TR4031 2.6x26 Diff Screw
Diff Schraube
TR4031 4x1 O-Ring
..................2
TR4039 13.1x19x0.8 Washer
Diff Beilagscheibe
.........4
T02098 5x8x2.5 Ball Bearing
Kugellager
..................4
T02048 2.37mm Ball
Differential Kugeln
..............................24
x2
4
Mid-F / Mid-R CVD
Mittel V/H CVD
TR4045 2.0 E-ring
...........................2
TR4048 2x9.8 Pin
...............4
TR4059 M3x5 Screw
Schraube
...............2
86000 5.1x8x0.2 Washer
Beilagscheibe
...............4
T02100 5x10x4 Ball Bearing
Kugellager
...............4
Assemble as many times as specified
x2
So oft montieren wie angegeben
TR4040
Diff connecting
Cup-Long
Diff Mitnehmer
lang
T02098
TR4039
T02048
T02098
TR4039
TR4040
Diff connecting
Cup-Short
Diff Mitnehmer kurz
TR4028
Diff Gear-16T
Diff Zahnrad 16T
TR4045
Apply grease
Schmiermittel
verwenden
TR4031
Diff Nut
Diff Mutter
T02047
Differential Spring
Diff Feder
T02050
TR4028
Diff Gear-39T
Diff Zahnrad 39T
TR4031
TR4031
Lock the <difference screw
>, then relax 1/4 of the circles.
Ziehen Sie die Schrauben fest an und lockern Sie dann
um 1/4 Umdrehung.
TR4048
TR4048
TR4045
16T Gear Shaft
16T Getriebeschaft
T02100
86000
Apply threadlock
Schraubensicherungslack verwenden
Screw
Cement
2
T02099
TR4057
TR4057
T02099
TR4059 M3x5
18.8
TR4030
Nylon Connecting Cup-Long
Central Mitnehmer
T02100
Screw
Cement
