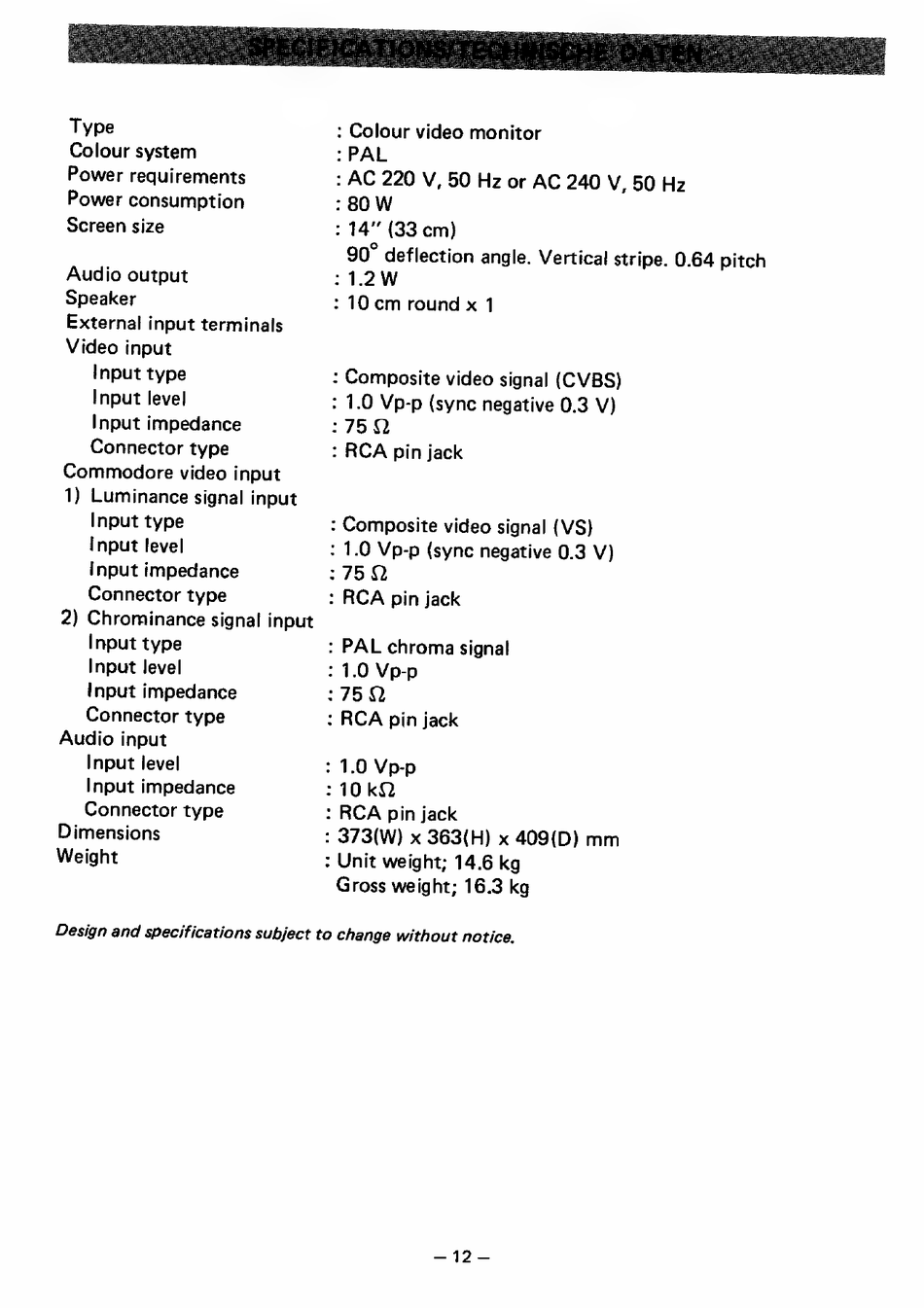

Type
Colour system
Power requirements
Power consumption
Screen size
Audio output
Speaker
External input terminals
Video input
Input type
Input level
Input impedance
Connector type
Commodore video input
1) Luminance signal input
Input type
Input level
Input impedance
Connector type
2) Chrominance signal input
Input type
Input level
Input impedance
Connector type
Audio input
Input level
Input impedance
Connector type
Dimensions
Weight
: Colour video monitor
:PAL
: 14" (33 cm}
>1.2W
: 10 cm round x 1
: Composite video signal (CVBS)
: 1.0 Vp-p (sync negative 0.3 V)
276Q
: RCA pin jack
: Composite video signal (VS)
: RCA pin jack
: PAL chroma signal
: 1.0 Vp-p
:76Q
: RCA pin jack
: 1.0 Vp-p
>10kQ
: RCA pin jack
: 373(W) x 363(H) x 409(D) mm
: Unit weight; 14.6 kg
Gross weight; 16.3 kg
—12—
