Evon Smart Home Smart Meter 100 Kurzanleitung

Smart Meter 100
:
Module dimensions
width/height/depth: 17,5mm/91,5mm/63mm
Horizontal pitch [U] = 1,1 HU
Supply
Power supply Self-powered (via measured voltage)
Nominal consumption < 1W
Duty cycle 100%
Min. current 0,25A
Max. current 45A
Operating voltage 230V AC, +- 20%
Operating frequency 45-65Hz
Environmental conditions
Operating conditions -25°C ... +65°C, 0 ... 90% rH non condensing
-30°C ... +80°C, 0 ... 90% rH non condensing
Storage conditions
kondensierend
Environment Only indoor use
Terminals
1, 2, N: 2,5 - 6mm2, tightening torque:
Terminal capacity 1,1 Nm
3-8: 1,5mm2, tightening torque: 0,4Nm
Protection type (EN 60529) IP20
Tests/Certification CE
Accuracy class
Active energy Class 1 (EN 62053-21)
Reactive energy Class 2 (EN 62053-23)
Output (Data-Communication)
Typ RS485
Count 1
Terminals 6,8
LED
1000 Impulse/kWh (EN 50470-3, EN 62052-
Pulse weight
11)
Duration 90 ms
*Changes and errors excepted. This document does not claim to be exhaustive. The terms and conditions apply to evon GmbH. For more Details please visit our website www.evon-smarthome.com
One-phase power meter with LCD displays,
monitoring electrical energy consumption.
ATTENTION ELECTRICAL VOLTAGE
Disconnect all system components from the mains before commencing work.
The components may ONLY cabled with the mains disconnected.
The cabling may only be carried out by trained expert personnel.
Important before commissioning:
• Disconnect the power supply L1, N before connecting the smart meter
• Check the correct current direction (input side terminal 1 - output side terminal 2)
• The terminals must be protected with the appropriate covers

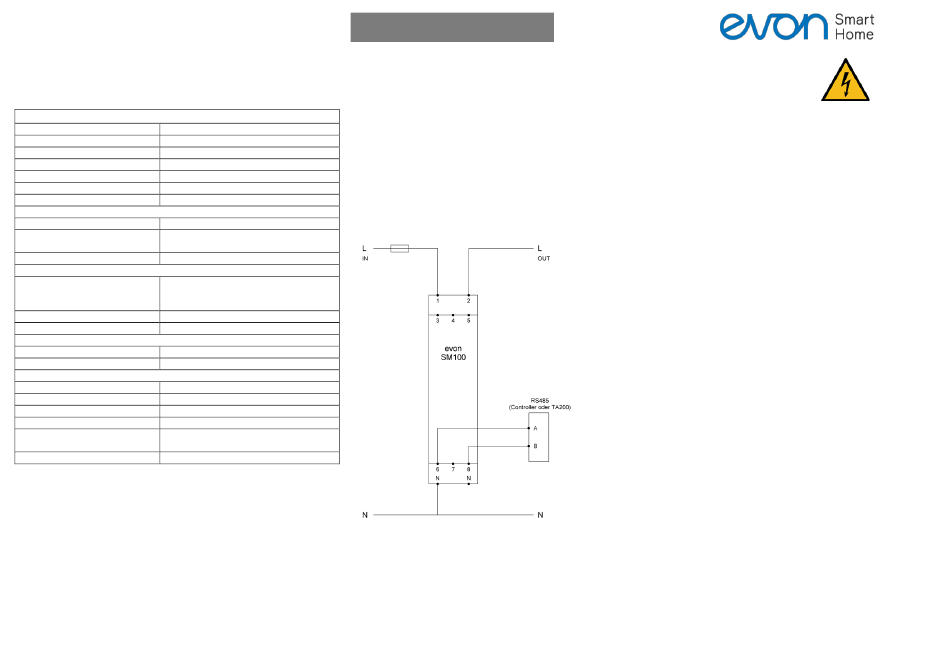

Wiring example: Commissioning:
• Start the commissioning of the system without voltage.
• Connect the phase conductor to the input terminal (1)
according to the circuit diagram.
• Connect the phase conductor to the output terminal (2)
according to the circuit diagram.
• Connect the data communication line (6, 8) with the RS485
controller interface or the TA200 module.
• Install the terminal covers
• Establish power supply
