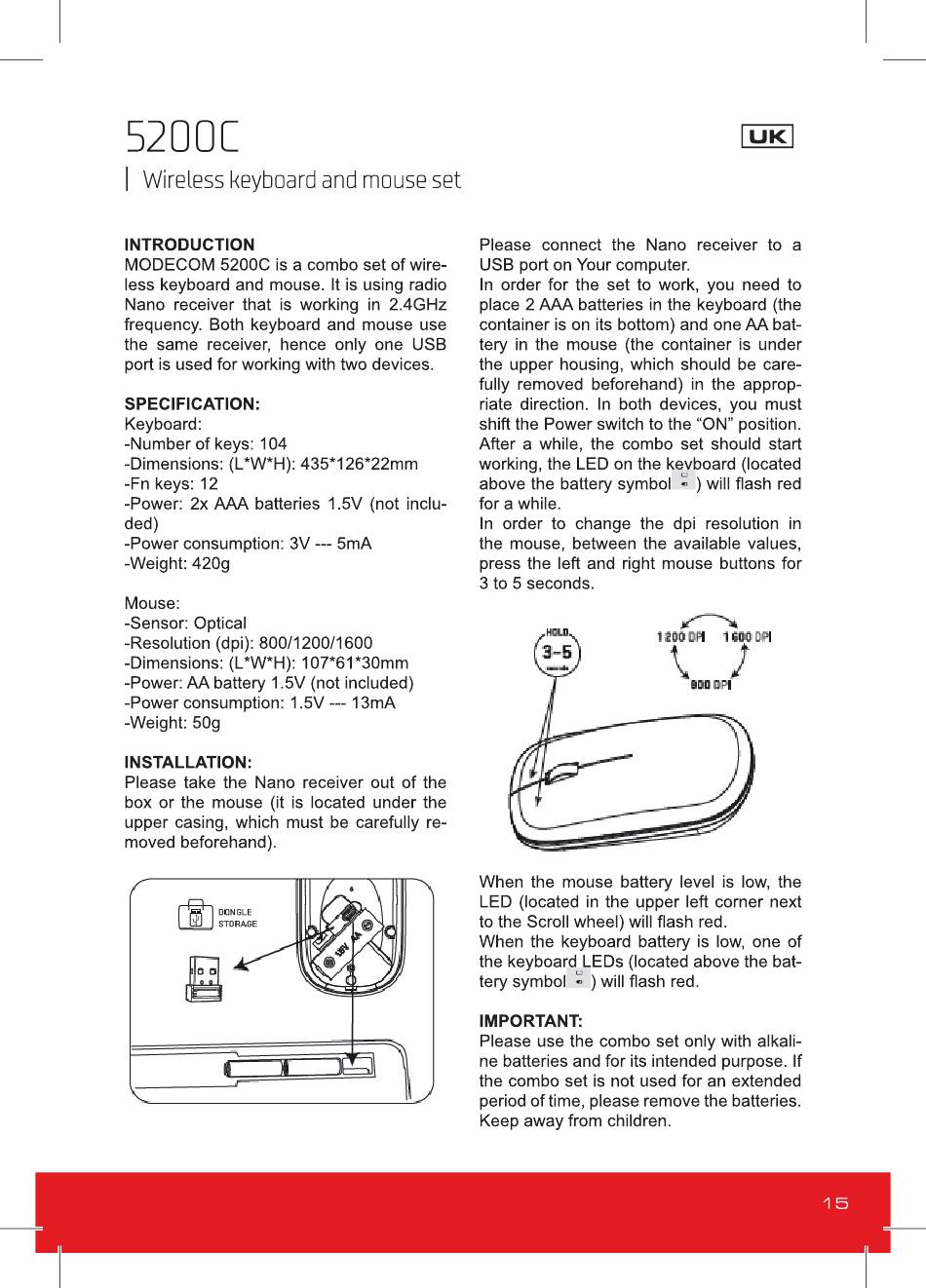

5200C
I Wireless keyboard andmouse set
INTRODUCTION
MODECOM 5200C is a combo
less keyboard and mouse. It is using radio
Nano receiver that is working in 2.4GHz
frequency. Both keyboard and mouse use
the same receiver, hence only one USB
port is used for working with two devices.
SPECIFICATION:
Keyboard:
-Number of keys: 104
-Dimensions:
-Fn keys: 12
-Power: 2x AAA batteries 1.5V (not inclu
ded)
-Power consumption: 3V
-Weight: 420g
Mouse:
-Sensor: Optical
-Resolution (dpi): 800/1200/1600
-Dimensions:
-Power: AA battery 1.5V (not included)
-Power consumption: 1.5V
-Weight: 50g
INSTALLATION:
Please take the Nano
box or the mouse (it is located under the
upper casing, which must be carefully re-
moved beforehand).
DONGLE
set of wire
435*126*22mm
5mA
13mA
receiver out of the
Please connect the Nano
USB port on Your computer.
In order for the set to work, you need to
place 2 AAA batteries in the keyboard (the
container is on its bottom) and one AA bat
tery in the mouse (the container is under
the upper housing, which should be care
fully removed beforehand) in the approp
riate direction. In both devices, you must
shift the Power switch to the "ON" position.
After a while, the combo
working, the LED on the keyboard (located
above the battery symbol
for a while.
In Order to change the dpi resolution
the mouse, between the available
press the left and right mouse buttons for
3 to 5 seconds.
When the mouse battery level is low, the
LED (located in the upper left corner next
to the Scroll wheel) will flash red.
When the keyboard battery is low, One Of
the keyboard LEDs (located above the bat
tery symbol ) will flash red.
IMPORTANT:
Please use the combo set only with alkali-
ne batteries and for its intended purpose. If
the combo set is not used
period of time, please remove the batteries.
Keep away from children.
uK
receiver to a
set should start
) will flash red
in
values,
1200 0M 16000M
for an extended
15
