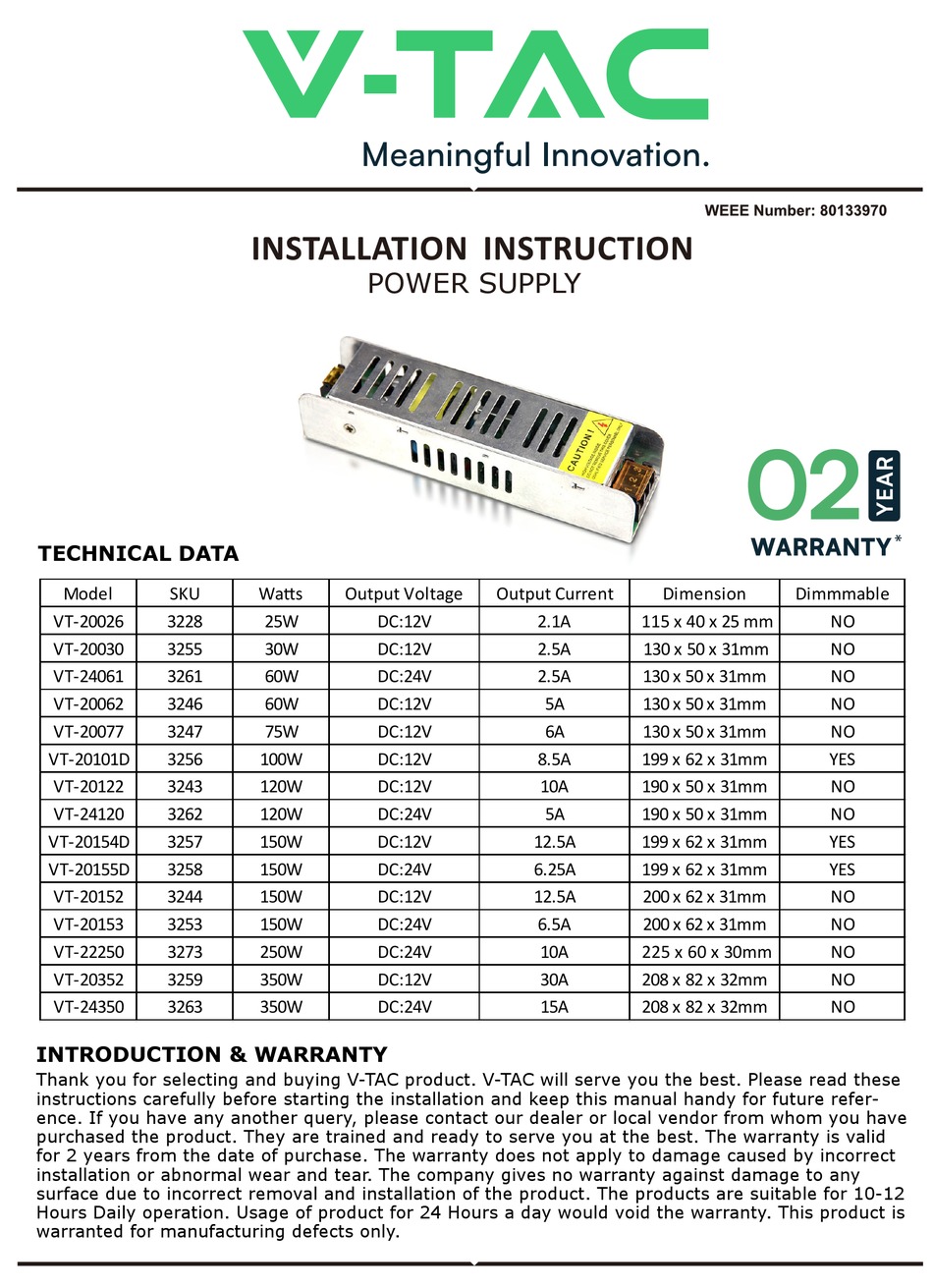

TECHNICAL DATA
Model
SKU
VT-20026
3228
VT-20030
3255
VT-24061
3261
VT-20062
3246
VT-20077
3247
VT-20101D
3256
VT-20122
3243
VT-24120
3262
VT-20154D
3257
VT-20155D
3258
VT-20152
3244
VT-20153
3253
VT-22250
3273
VT-20352
3259
VT-24350
3263
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these
instructions carefully before starting the installation and keep this manual handy for future refer-
ence. If you have any another query, please contact our dealer or local vendor from whom you have
purchased the product. They are trained and ready to serve you at the best. The warranty is valid
for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against damage to any
surface due to incorrect removal and installation of the product. The products are suitable for 10-12
Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is
warranted for manufacturing defects only.
POWER SUPPLY
Wa�s
Output Voltage
25W
DC:12V
30W
DC:12V
60W
DC:24V
60W
DC:12V
75W
DC:12V
100W
DC:12V
120W
DC:12V
120W
DC:24V
150W
DC:12V
150W
DC:24V
150W
DC:12V
150W
DC:24V
250W
DC:24V
350W
DC:12V
350W
DC:24V
Output Current
Dimension
2.1A
115 x 40 x 25 mm
2.5A
130 x 50 x 31mm
2.5A
130 x 50 x 31mm
5A
130 x 50 x 31mm
6A
130 x 50 x 31mm
8.5A
199 x 62 x 31mm
10A
190 x 50 x 31mm
5A
190 x 50 x 31mm
12.5A
199 x 62 x 31mm
6.25A
199 x 62 x 31mm
12.5A
200 x 62 x 31mm
6.5A
200 x 62 x 31mm
10A
225 x 60 x 30mm
30A
208 x 82 x 32mm
15A
208 x 82 x 32mm
Dimmmable
NO
NO
NO
NO
NO
YES
NO
NO
YES
YES
NO
NO
NO
NO
NO
Werbung
Inhaltszusammenfassung für V-TAC VT-20026
- Seite 1 208 x 82 x 32mm INTRODUCTION & WARRANTY Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future refer- ence. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product.
- Seite 2 WARNING: 1) Please make sure to turn off the power before starting the installation. 2) Observe the connection diagram provided before connecting to the power supply 3) Installation should be done by a qualified electrician. 4) Disconnect the power supply when wiring or soldering the LED. 5) Please ensure to check the DC output of the power supply matches with the DC Input of the striplight.
- Seite 3 ] INTRODUCTION & GARANTIE Merci d’avoir choisi et acheté un produit à V-TAC. V-TAC vous offrira le meilleur. Veuillez lire attentivement ces instructions avant de commencer l’installation et conservez ce manuel à portée de main pour référence ultérieure. Si vous avez d’autres questions, veuillez contacter notre distributeur ou le fournisseur local auprès duquel vous avez acheté...
- Seite 4 ] INTRODUCCIÓN Y GARANTÍA Le agradecemos que ha elegido y adquirido la V-TAC. V-TAC le servirá del mejor modo posible. Pedimos que antes de comenzar la instalación lea atentamente las presentes instrucciones y las guarde en un lugar adecuado para consultas próximas. En caso de dudas o preguntas, póngase, por favor, en contacto con el representante o suministrador más cercano de quien ha comprado el...
- Seite 5 ] INTRODUZIONE E GARANZIA Grazie per aver scelto e acquistato il prodotto della V-TAC. La V-TAC Le servirà nel miglior modo possibile. Si prega di leggere attentam- ente queste istruzioni prima di iniziare l’installazione e di conservare questo manuale a portata di mano per riferimenti futuri. In caso di qualunque altra domanda si prega di contattare il nostro rivenditore o il distributore locale da chi è...
- Seite 6 ] INTRODUCERE, GARANŢIA Vă mulţumim că aţi ales şi v-aţi cumpărat acest produs de V-TAC. V-TAC vă va fi de un mare folos, utilizându-l în modul cel mai potrivit posibil. Vă rugăm să citiţi .aceste instrucţiuni cu atenţie, înainte să începeţi instalarea, şi păstraţi-le pentru că s-ar putea să fie necesar să...
