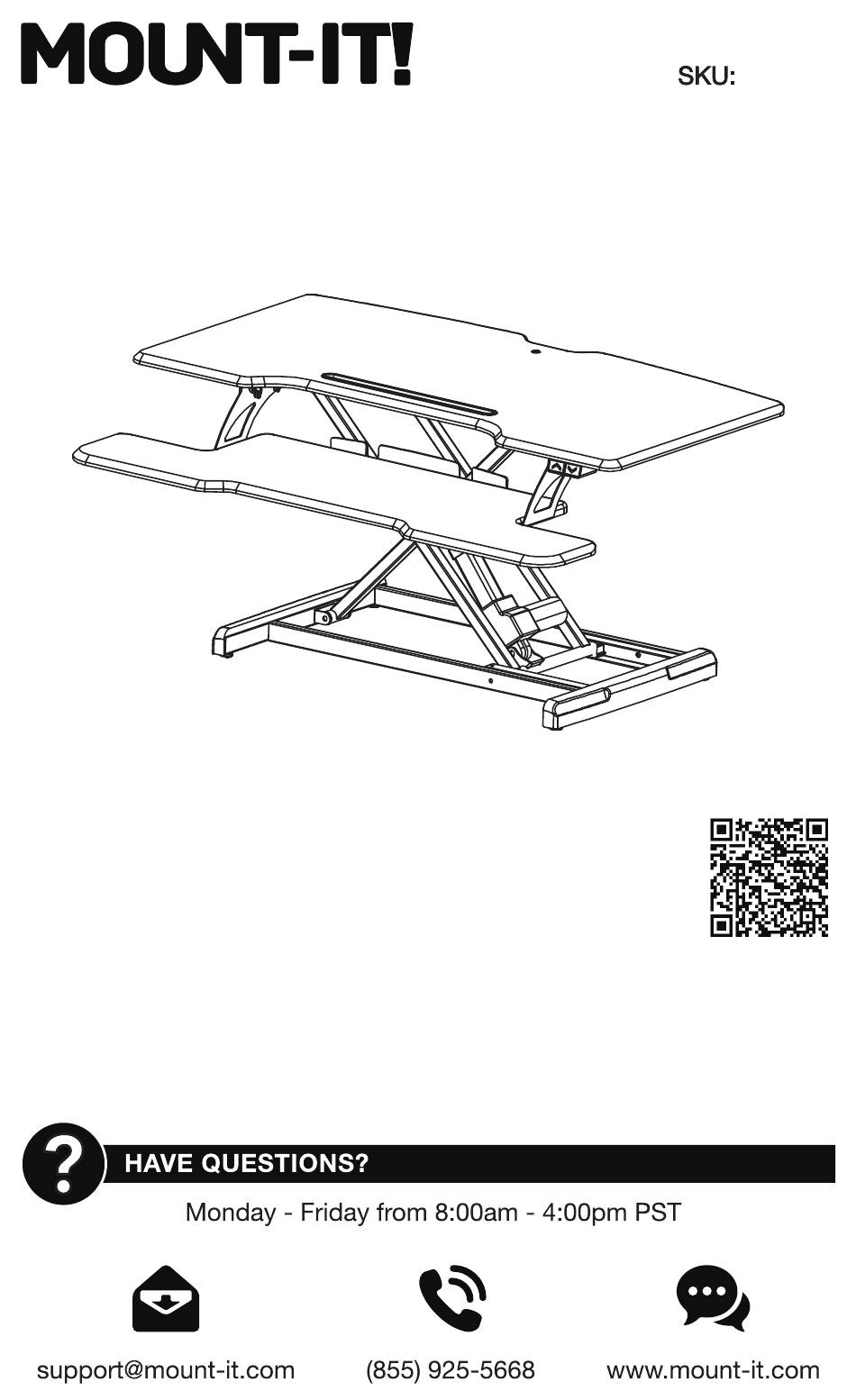

- Seite 1 User Manual MI-8010 MI-8011 MI-8012 Please scan this QR code to visit the product page MOTORIZED STANDING DESK CONVERTER...
- Seite 2 Thank you for choosing Mount-It Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact Mount-It! for assistance. CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury. •...
- Seite 3 PACKAGE CONTENTS DESK CONVERTER KEYBOARD TRAY KEYBOARD TRAY BRACKETS F (x1) G (x2) M5x12 BOLT POWER ADAPTER CABLE TIES CABLE MANAGEMENT CLIP DIMENSIONS & WEIGHT CAPACITY Total standing desk converter weight capacity is 33lbs* (desktop + keyboard tray.) Keyboard tray weight capacity 5lbs max. *Maximum weight capacity is 45lbs.
- Seite 4 Step 1 Remove the Desk Converter from the Box Remove the Desk Converter (#A) from the packaging. Note: Two person lift recommended. Step 2 Place it on a level surface (such as a desk, table, or the floor) Locate the plastic ties on the Desk Converter, there will be one on each leg. Use a pair of scissors to cut the plastic ties.
- Seite 5 Step 3 Raise the Desk Converter Connect the power cord on the desk converter to the power adapter. Plug the power adapter into a wall outlet then press the up button and raise the desk to its highest position. Wall Outlet...
- Seite 6 Step 4 Attach the Keyboard Brackets Attach the Keyboard Tray Brackets (#C) to the bolt holes on the underside of the Keyboard Tray (#B) as shown, using the Bolts (#D). Step 5 Attach the Keyboard Tray 1.Attach the Keyboard Tray by sliding it beneath the bolts shown in magnification bubble 1. Ensure the bolts reach the end of the channels on the bracket, by lifting the tray up unto the bolts and pushing it forward.
- Seite 7 Step 6 Place Items on the Desk Converter Place all monitors, laptops, or other equipment on the desk. Ensure none of the equipment is hanging off the edge or otherwise unstable/unbalanced. Refer to the warnings section at the end of the manual for further information on equipment placement. Step 7 Worksurface Cable Management (Optional Step) Use the provided Cable Ties (#G) to collect cables for all peripheral devices on the worksurface.
- Seite 8 Warnings Keep all monitors, laptops and other Raise the work surface slowly. Raising equipment fully on the work surface at all the work surface too quickly may cause times. Allowing any part of these to hang monitors, laptops and other equipment to off the edge may result in property fall resulting in property damage and/or damage and/or personal injury.
