INTERFACE VIDÉO / VIDEO-SCHNITTSTELLE
05/2021 - REV2
INTERFACCIA VIDEO / VIDEO INTERFACE
CITROËN
display 7": BERLINGO 2018>2019, C3 2017>, C3 Aircross 2017>, C6 2017>
PEUGEOT
display 7": 308 2017>, 408 2017>, 3008 2017>,4008 2017>, 5008 2017>
display 10": 3008 2019>, 2008 2019>, 508 2019>, DS7 2019>, BERLINGO 2019>
INTERFACE VIDEO
display 9": C4 AIRCROSS 2017>, C6 2017>
OPEL
display 7": CORSA F 2019>, GRANDLAND 2017>
Istruzioni di montaggio
Installation instructions
Instructions de montage
Montageanleitung
Instrucciones para el montaje
05943
PLUG&PLAY
IT
EN
FR
DE
ES
Inhaltszusammenfassung für Phonocar 05943
- Seite 1 05943 INTERFACCIA VIDEO / VIDEO INTERFACE INTERFACE VIDÉO / VIDEO-SCHNITTSTELLE INTERFACE VIDEO PLUG&PLAY CITROËN display 7”: BERLINGO 2018>2019, C3 2017>, C3 Aircross 2017>, C6 2017> display 9”: C4 AIRCROSS 2017>, C6 2017> PEUGEOT display 7”: 308 2017>, 408 2017>, 3008 2017>,4008 2017>, 5008 2017>...
- Seite 2 EN - IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS Phonocar Spa declines all responsibility for any use of the 05943 not in compliance with the current laws. Carefully read the mounting instructions to follow the installation directions and to become familiar with all the controls, some of which are described below: 1) Installa- tion and Connections need to be carried out by trained and well-informed personnel.

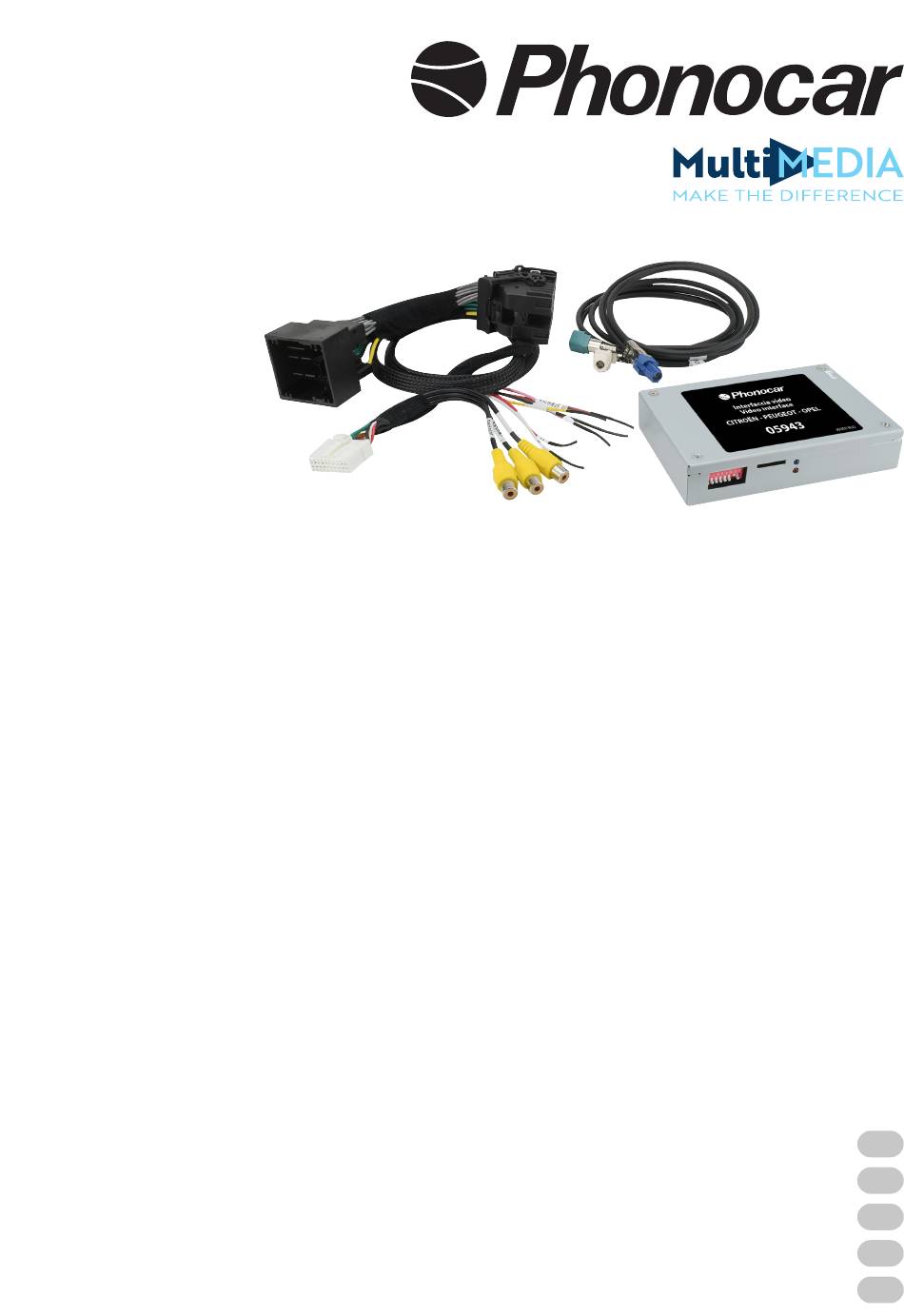

- Seite 3 Utilizzo Utilisation Nutzung Utilizo IT - Dispositivo che permette di collegare una telecamera universale posteriore ( mirror)al monitor originale della vettura . EN - Device which allows to connect a universal rear camera (mirror) to the original monitor of the vehicle. FR - Appareil permettant le branchement d’une caméra de recul universelle (mirror) à...
- Seite 4 12V BATTERIA/BATTERY Commutateur USCITA / OUTPUT Schalter +12V ALIMENTAZIONE CAMERA POWER CAMERA Conmutador USCITA / OUTPUT VIDEO INTERFACE +12V SOTTOCHIAVE/IGNITION KEY (+12V ACC) 05943 MASSA/GROUND REAR CAMERA NON ATTIVO/NOT ACTIVE NON ATTIVO/NOT ACTIVE DISPLAY CONNETTORE AUTO ORIGINALE ORIGINAL CAR CONNECTOR...
