Installation Instructions
Caution - If installing a HWI-SUB32-CC9, do
not wire line voltage (120–240 VAC) to the
HWI-LV32 enclosure.
1. Install sub-plate in the enclosure. The
HomeWorks Interactive 9 Contact Closure Board
Sub-Plate is installed in the HWI-LV32 using the
three processor mounting screws already installed
in the enclosure, plus two additional screws provid-
ed with the HWI-SUB32-CC9 (See Figure 1 for
installation location). Tighten all screws to 20 in-lbs
(2.25 Nm).
2. Install Contact Closure Boards (Figure 2). Up to
9 contact closure boards (HWI-CCO-8 or HWI-CCI-
8) can be installed on the HWI-SUB32-CC9. Install
the HWI-CCO-8 or HWI-CCI-8 in accordance with
the instructions provided with these devices. Holes
are provided on the HWI-SUB32-CC9 for connect-
ing the ground wires on the contact closure boards.
9 Contact Closure Board Sub-Plate
HWI-SUB32-CC9

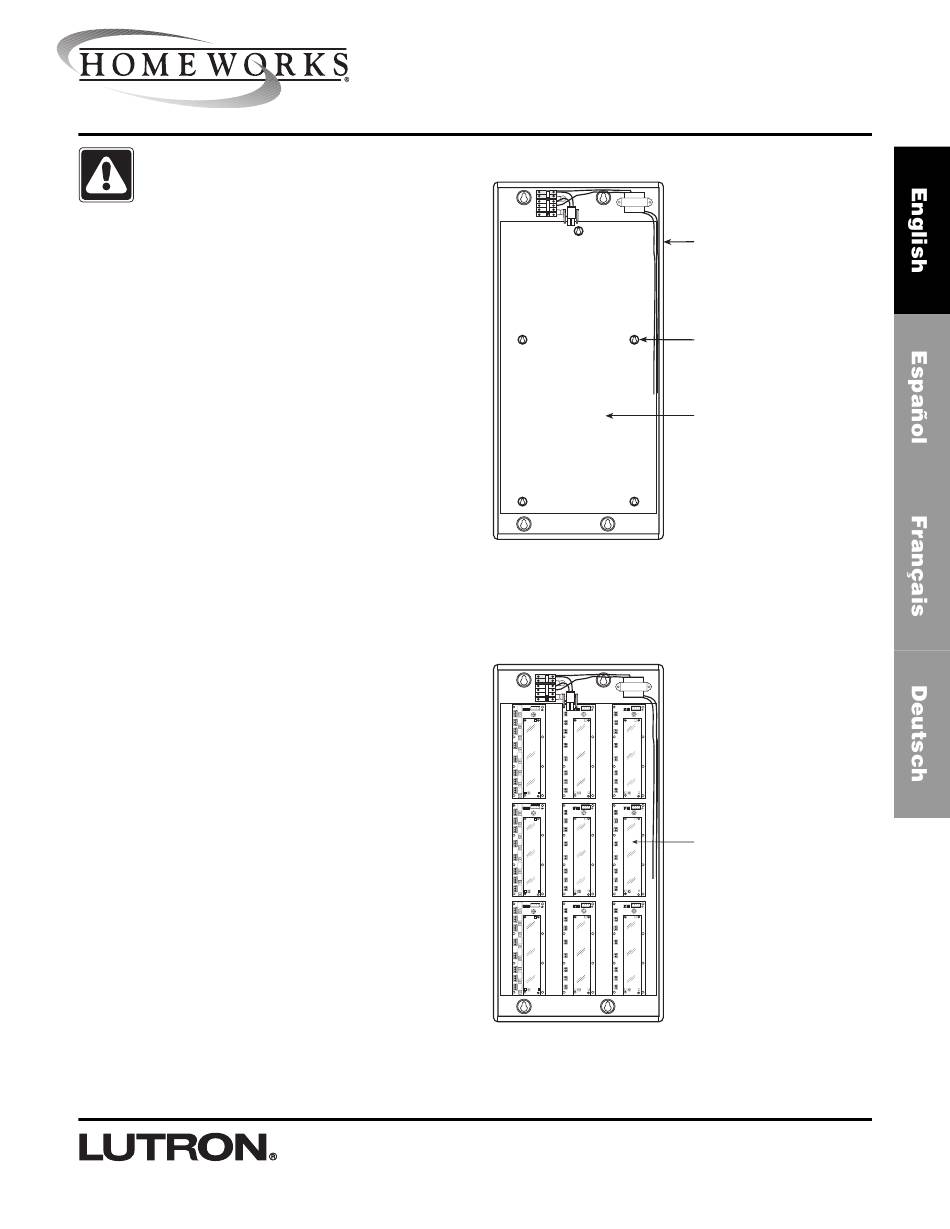

Figure 1 - Sub-panel Location
H
H
N
N
N
G
Figure 2 - Contact Closure Board Location
H
H
N
N
N
G
J9
J9
J9
4
3
2
1
4
3
2
1
4
3
2
1
J1
INPUT
INPUT
COMMON
COMMON
J2
INPUT
INPUT
COMMON
COMMON
J3
INPUT
INPUT
COMMON
COMMON
J3
INPUT
INPUT
COMMON
COMMON
J4
INPUT
INPUT
COMMON
COMMON
J6
INPUT
INPUT
COMMON
COMMON
J7
INPUT
INPUT
J8
INPUT
INPUT
COMMON
COMMON
J9
4
3
2
1
J9
4
3
2
1
J9
4
3
2
1
J1
INPUT
INPUT
COMMON
COMMON
J2
INPUT
INPUT
COMMON
COMMON
J3
INPUT
INPUT
COMMON
COMMON
J3
INPUT
INPUT
COMMON
COMMON
J4
INPUT
INPUT
COMMON
COMMON
J6
INPUT
INPUT
COMMON
COMMON
J7
INPUT
INPUT
J8
INPUT
INPUT
COMMON
COMMON
J9
4
3
2
1
J9
4
3
2
1
J9
4
3
2
1
J1
INPUT
INPUT
COMMON
COMMON
J2
INPUT
INPUT
COMMON
COMMON
J3
INPUT
INPUT
COMMON
COMMON
J3
INPUT
INPUT
COMMON
COMMON
J4
INPUT
INPUT
COMMON
COMMON
J6
INPUT
INPUT
COMMON
COMMON
J7
INPUT
INPUT
J8
INPUT
INPUT
COMMON
COMMON
HWI-LV32
Sub-plate mounting
locations (5)
HWI-SUB32-CC9
Contact closure boards
(HWI-CCO-8 or HWI-
CCI-8)
