Read all instructions before using or installing the product. Keep for future reference.
Include the user manual when passing the product on to third parties.

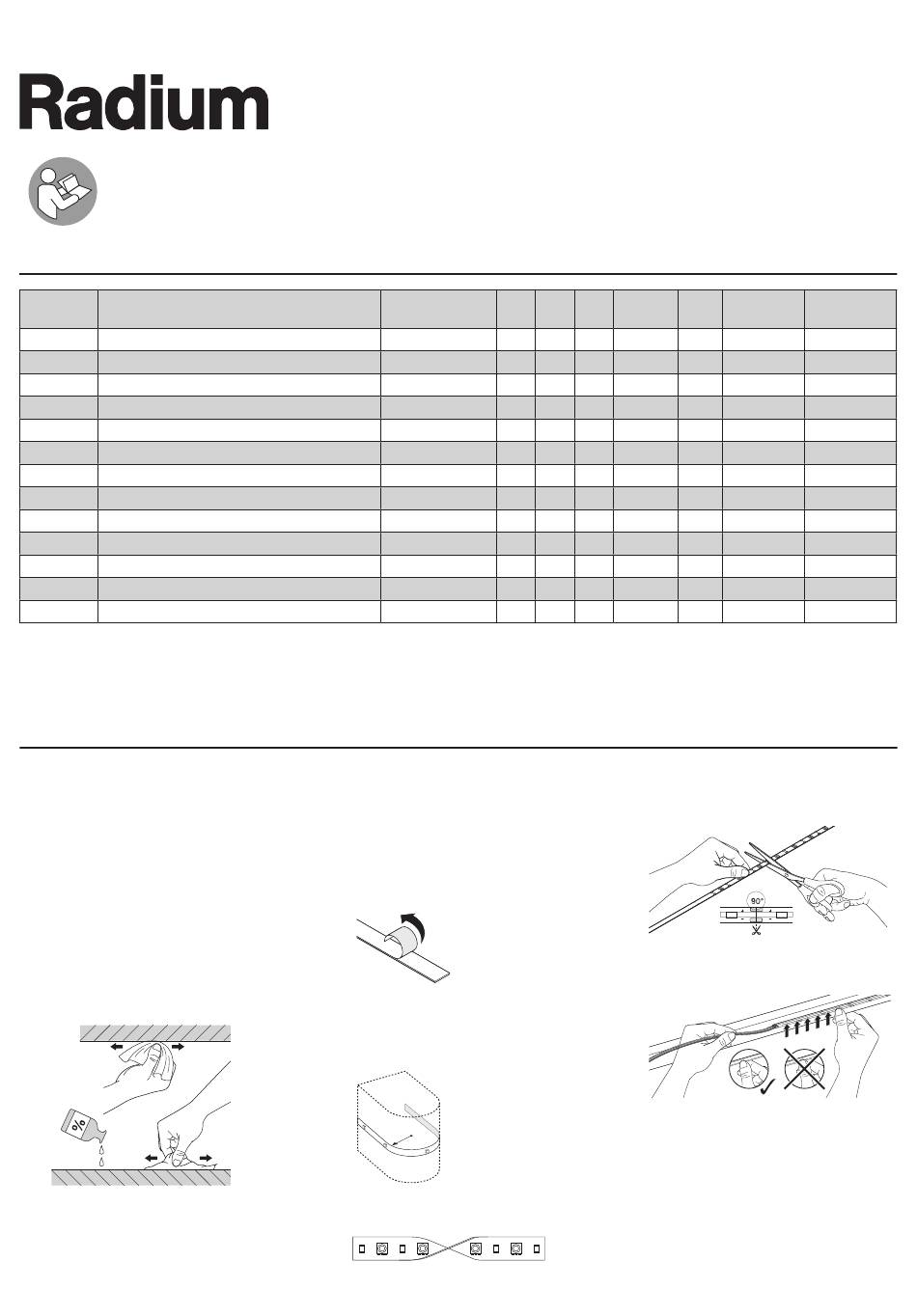

Product introduction
Article No. Product Name
RSTA4230 LED STRIP 500 EH 927/24V 10M
RSTA4240 LED STRIP 500 EH 940/24V 10M
RSTA4250 LED STRIP 1000 EH 927/24V 10M
RSTA4260 LED STRIP 1000 EH 940/24V 10M
RSTA4275 LED STRIP 1500 EH 927/24V 5M
RSTA4273 LED STRIP 1500 EH 927/24V 3M
RSTA4271 LED STRIP 1500 EH 927/24V 1M
RSTA4285 LED STRIP 1500 EH 940/24V 5M
RSTA4283 LED STRIP 1500 EH 940/24V 3M
RSTA4281 LED STRIP 1500 EH 940/24V 1M
RSTA4295 LED STRIP 900WD EH 930- 919/24V 5M
RSTA4293 LED STRIP 900WD EH 930- 919/24V 3M
RSTA4291 LED STRIP 900WD EH 930- 919/24V 1M
•
5 m (5000 mm) and 10 m (10000 mm) light reels have plugs on both ends.
•
TA (ambient temperature) of all models: -20–50 °C
Handling/installing the product
• The product must be fully
unfolded for use.
• Only use the product indoors.
Do not expose the product to
moisture.
• Clean the mouting surfaces
before installation. Ensure
that the mounting surface
is clean and smooth (free of
grease, oil, silicone and dirt
particles).
• Protect the product against
mechanical and electrostatic
loads when installed.
L × W × H (mm)
10000 × 10 × 1.5 24
10000 × 10 × 1.5 24
10000 × 10 × 1.5 24
10000 × 10 × 1.5 24
5000 × 10 × 1.5
3000 × 10 × 1.5
1000 × 10 × 1.5
5000 × 10 × 1.5
3000 × 10 × 1.5
1000 × 10 × 1.5
5000 × 10 × 1.5
3000 × 10 × 1.5
1000 × 10 × 1.5
• Ensure the protective tape is
completely removed before
installation.
• The product is mounted using
the double-sided adhesion
tape on the back side.
• Do not bend the product
sharply. Do not bend at the
LED light.
R > 30 mm
• Do not twist the product.
White LED strip lights
V
W
W/m lm
40
4
4900
40
4
5200
70
7
9450
70
7
10850
24
60
12
7200
24
36
12
4320
24
12
12
1440
24
60
12
8340
24
36
12
5004
24
12
12
1668
24
50
10
4550
24
30
10
2730
24
10
10
910
• Cut the product at a right
angle.
• Do not directly press on the
LED lights.
OKM 4103590 000 AA V01
various models
User manual
lm/m K
Max. usable
length (m)
490
2700
10
520
4000
10
945
2700
10
1085
4000
10
1440
2700
5
1440
2700
5
1440
2700
5
1668
4000
5
1668
4000
5
1668
4000
5
910
1900–3000 5
910
1900–3000 5
910
1900–3000 5
1
Inhaltsverzeichnis
Inhaltszusammenfassung für Radium RSTA4230
-
Seite 4: Produktübersicht
L × B × H (mm) W/m lm lm/m K Max. nutz- bare Länge RSTA4230 LED STRIP 500 EH 927/24V 10M 10000 × 10 × 1,5 24 4900 2700 RSTA4240 LED STRIP 500 EH 940/24V 10M 10000 × 10 × 1,5 24... -
Seite 5: Handhabung/Installation Des Produkts
Handhabung/Installation des Produkts • Der LED-Streifen muss zur • Schützen Sie das • Das Produkt nicht verdrehen. Verwendung vollständig von Produkt bei der Montage der Rolle abgerollt sein. vor mechanischen und elektrostatischen • Verwenden Sie die LED- • Schneiden Sie das Produkt im Belastungen. -
Seite 6: Verwendung Der Led-Streifen Verbinder
Driver 30 W 30 W Netzteilleistung 24 V DC Anwendungsbeispiele LED-Treiber Controller Verteiler Verlängerungs- LED-Streifen Fernbedienung kabel OTNA4372, LMZA4376 FXZA4950 FXZA4380 RSTA4230, RSTA4240, LMZA4535, OTNA4373, RSTA4250, RSTA4260, LMZA4537 OTNA4374 RSTA4275, RSTA4273, RSTA4271, RSTA4285, RSTA4283, RSTA4281, RSTA4295, RSTA4293, RSTA4291 Beispiel 1... -
Seite 7: Übersicht Der Verbindungsoptionen
Beispiel 2 1500 mm 250 mm 250 mm 250 mm 250 mm 2000 mm 250 mm Beispiel 3 1500 mm 250 mm 250 mm 250 mm 250 mm 2000 mm 250 mm Übersicht der Verbindungsoptionen und/oder Verlängerungskabel ZeroPitch (ZP) Länge: 1 m / 3 m LED-Driver Verteiler ZeroPitch (ZP) - Seite 8 Product diagrams/Produktzeichnungen 12.5 10000 [mm] RSTA4230 / RSTA4240 / RSTA4250 / RSTA4260 62.5 5000 [mm] RSTA4275 / RSTA4285 83.3 5000 [mm] RSTA4295 62.5 [mm] RSTA4271 / RSTA4273 / RSTA4281 / RSTA4283 83.3 [mm] RSTA4291 / RSTA4293 Old appliances must not be disposed of with residual waste. They can be handed in at public collection points run by waste disposal companies.
