GAMEMAX Infinity Pro Installationsanleitung Seite 8

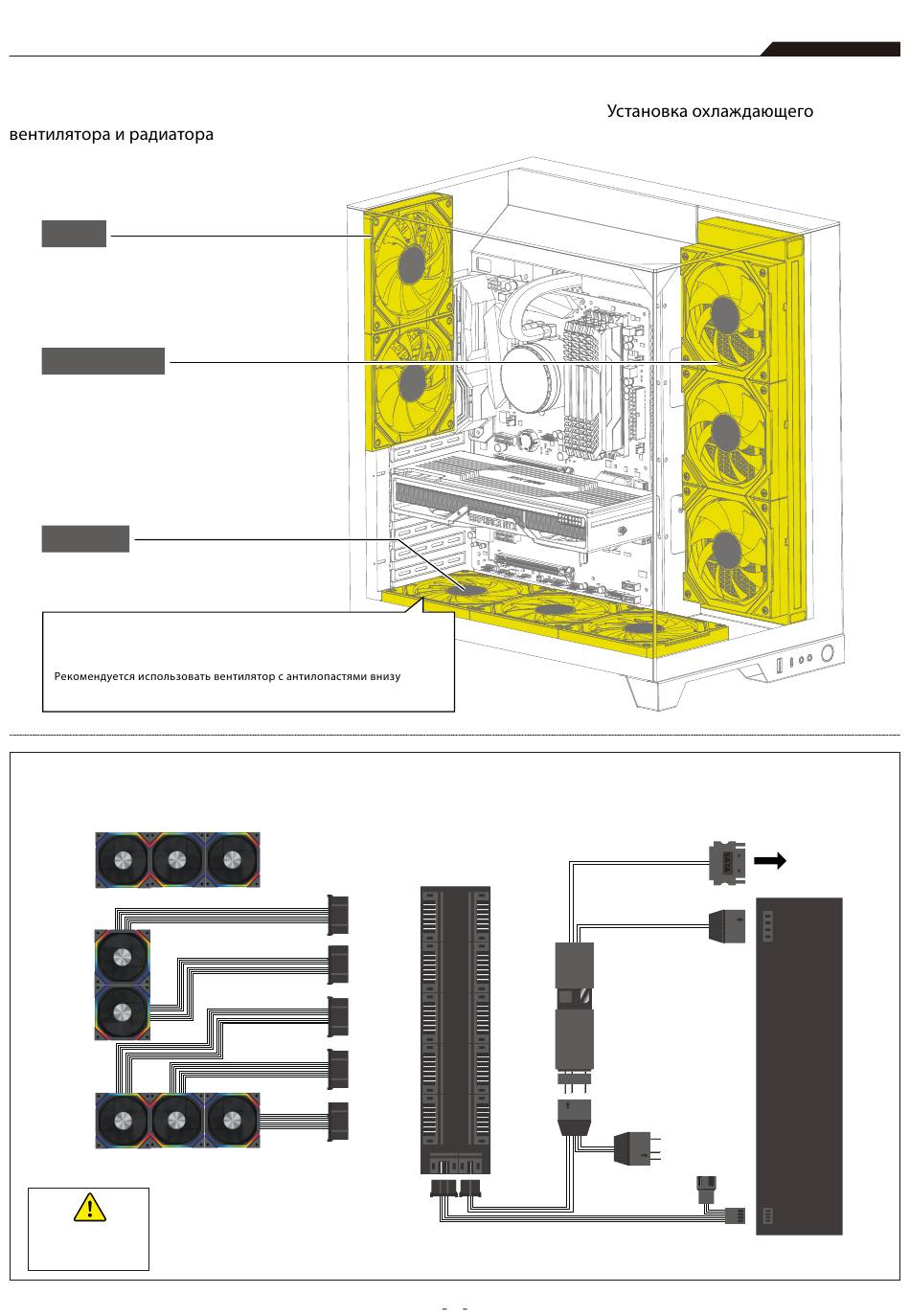

Cooling Fan and Liquid Cooling System Installation
Einbau von Kühlgebläse und Kühler / Instalação de ventilador e radiador /
Rear
120mm Fan x2 (included)
120mm Liquid cooling system (optional)
M/B Cover
120mm Fan x3 (optional)
140mm Fan x2 (optional)
120/240/280/360mm
Liquid cooling system (optional)
Bottom
120mm Fan x3 (included)
It is recommended to use a reverse blade fan at the bottom.
Es wird empfohlen, unten einen Anti-Blade-Lüfter zu verwenden.
Recomenda-se usar um ventilador anti-lâmina na parte inferior.
推荐底部使用反叶风扇
V1.9 FAN HUB & RMT-AP CONTROLLER DEMO LINK GUIDE
⑥ ⑦
M/B Cover
(optional)
Rear
(included)
Bottom
(included)
Please do not plug in the
wrong power interface,
otherwise it will burn out
equipment!
/ 散热风扇与一体式水冷安装
⑧
①
②
③
④
⑤
ARGB+PWM 8pin
Fan female header
4pin female
header
Note: Fan connectors are connected sequentially to the V1.9 fan Hub
.
V1.9 Fan Hub
⑩
①
②
⑨
③ ⑧
④ ⑦
⑤ ⑥
3pin female
header
7
SATA
male header
3pin ARGB
female header
RMT-AP
Controller
3pin ARGB
female header
3pin ARGB
male header
4pin PWM
male header
4pin PWM
female header
INFINITY PRO
PSU
ARGB
MB
PWM
