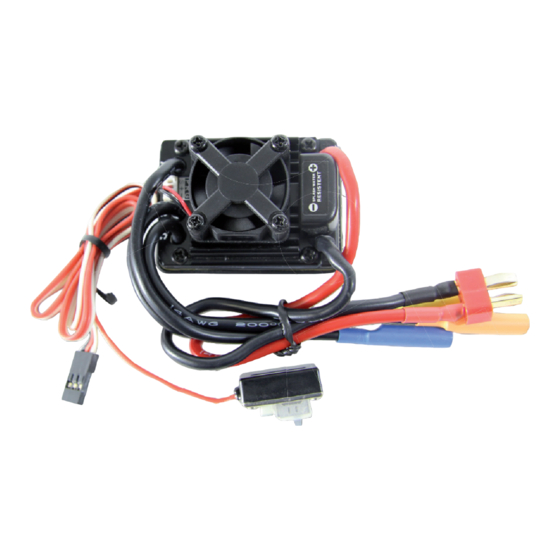

Die folgenden Sicherheitshinweise müssen unbedingt beachtet werden. Für Sach-, Personen- oder Folge- schäden, die durch unsachgemäße Handhabung oder Nichtbeachtung der Sicherheitshinweise entstehen, übernimmt die XciteRC Modellbau GmbH & Co. KG keine Haftung. In diesen Fällen erlischt die Gewährleis- tung. Bewegen Sie Ihr Modell immer mit größter Vorsicht und Verantwortung, ansonsten kann es zu Schäden an fremdem Eigentum oder gar Personenschäden kommen.
Seite 4
Nach Gebrauch schalten Sie zuerst das Modell und dann den Sender aus. WARNUNG: Entnehmen Sie anschließend die Antriebsakkus bzw. Batterien aus dem Modell und Sen- der. Bewahren Sie das Modell/Sender nie mit eingebautem Akku auf - Brandgefahr! #55000010 Brushless ESC...
Lithium-Akku längere Zeit gelagert, kann er beschädigt werden. Die Firma XciteRC Modellbau GmbH & Co. KG kann den korrekten Umgang mit den von Ihnen verwendeten Akkus bzw. Batterien nicht überwachen, daher wird die Gewährleistung bei falscher Ladung oder Entladung ausgeschlossen.
Sobald die rote LED beginnt zu blinken, SET-Tas- ter loslassen (siehe auch Abbildung). C) Gehen Sie nun wie in der Abbildung vor und lernen Sie das folgende ein: Die grüne LED blinkt 1x Die grüne LED blinkt 3x Die grüne LED blinkt 2x #55000010 Brushless ESC...
Regler zerstört werden - Verlust der Gewährleistungsansprüche! 3. kein Gassignal: wird für ca. 0.2 Sekunden kein gültiges Gassignal des Empfängers empfangen (z.B. durch Störungen), schaltet der Regler sofort ab, um Beschädigungen durch das unkontrollierte Beschleu- nigen zu vermeiden.】 #55000010 Brushless ESC...
Um den Regler auf die Werkseinstellungen zurückzusetzen, bringen Sie den Gashebel in Neutralposition und drücken den SET-Taster min. 3 Sekunden. Sobald die rote und grüne LED gleichzeitig blinken, ist der Reset abgeschlossen. BEACHTE: dies funktioniert nicht während des Einlernens der Gaswege. #55000010 Brushless ESC...
3S Lipo oder 9 Zellen Offroad: ≥ 13T NiMH Eingangsspannung/Akku 7.2 - 12.6 V DC / 4-9 Zellen NiMH oder 2-3S Lipo Lüfter max. 12 V DC 6 V/2 A DC Abmessungen/Gewicht 48.5x38x32 mm / 90 g #55000010 Brushless ESC...
The following safety instructions must be strictly observed. For property damage, personal injury or conse- quential damage caused by improper use or non-observance of the safety instructions the XciteRC Modell- bau GmbH & Co. KG accepts no liability. In these cases, the warranty becomes void.
Seite 14
To clean the speed control do not use water or harsh cleaning agents (eg alcohol). A dry, clean cloth is usually sufficient. Operation of the model is performed solely at the risk of the operator. Only a careful and deliberate operation protects against physical injury and damage to property. #55000010 Brushless ESC...
The XciteRC Modellbau GmbH & Co. KG cannot monitor the proper use of the battery or batteries you use, therefore, the warranty is excluded due to incorrect charging or discharging.
(Please check the picture on the right side) C) Set the THREE points according to the steps Green LED flashes once Green LED flashes twice Green LED flashes 3 times shown in the picture on the right side. #55000010 Brushless ESC...
ESC will cut off the output power. You can disable the over-heat protection function for com- WARNING: this may destroy the ESC - loss of Warranty! petition race. 3. throttle signal loss protection: The ESC will cut off the output power if the throttle signal is lost for 0.2 second. 】 #55000010 Brushless ESC...
“A long time flash + a short time flash” (Motor sounds “B---B”) = The option 6 “A long time flash + 2 short times flash” (Motor sounds “B---BB”) = The option 7 “A long time flash + 3 short times flash” (Motor sounds “B---BBB”) = The option 8 #55000010 Brushless ESC...
At any time when the throttle is located in neutral zone (except in the throttle calibration or programming mode), hold the “SET” key for over 3 seconds, the red LED and green LED will flash at the same time, which #55000010 Brushless ESC...
There is strong electro - magne- Reset the ESC. If the function tic interference in flying field. could not be resumed, you might need to move to another area to run the car. #55000010 Brushless ESC...
3S Lipo or 9 cells NiMH Off-road: ≥ 13T Input Voltage/Battery 7.2 - 12.6 V DC / 4-9 cells NiMH or 2-3S Lipo Cooling Fan max. 12 V DC Built-in BEC 6 V/2 A DC Dimension/Weight 48.5x38x32 mm / 90 g #55000010 Brushless ESC...
