DS Produkte 02508 Gebrauchsanleitung Seite 4

EN

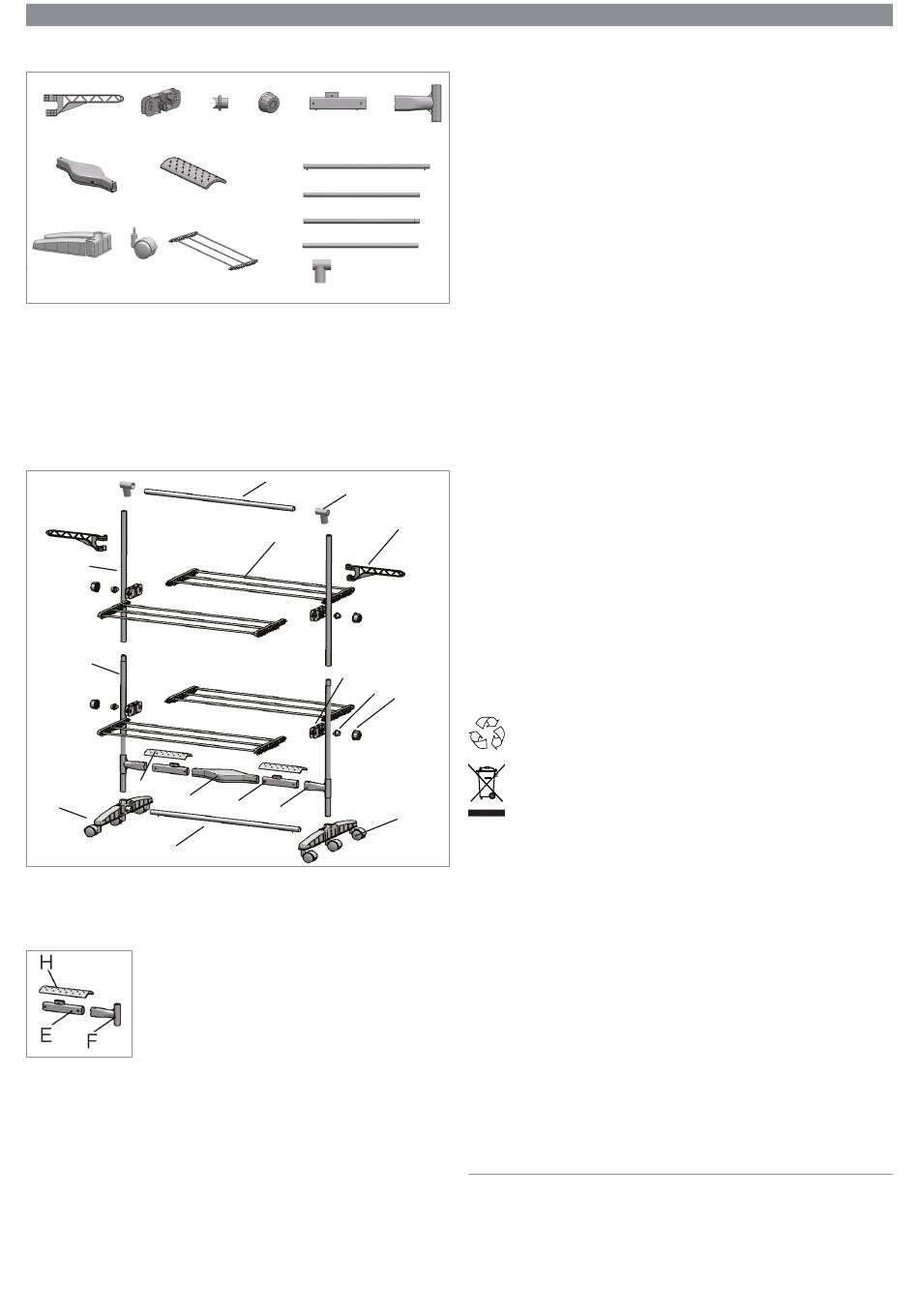

ITEMS SUPPLIED
A*2 B*4
G*1 H*2
L*2 M*6
Not shown:
• Mains adapter
• Operating instructions
Check the items supplied for completeness and transport damage. If you find
any damage to the components, do not use them, but contact our customer
service department.
ASSEMBLY
J
K
H
G
L
I
1. Plug the foot parts L onto the ends of the rod I. The pins at the rod and the
holes in the foot parts are above one another. The pins must lock into place
2. Plug one rod K as far as it will go into the foot parts L. The tapering end
points upwards.
3. Plug E into F. It must engage.
4. Plug H onto E at the top. The longer side of H
points towards F.
5. Repeat points 3 – 4 for the second set.
6. Plug the assembled parts (E, F, H) onto one rod K
in each case.
7. Place the fan G between the assembled parts (E, F, H). The opening
points downwards!
8. Slide one connecting piece B (already assembled with C and D) onto the
rods K in each case. The round cap nut D outwards.
9. Clamp one frame O into both connecting pieces B. The hooks point
downwards.
10. Clamp the second frame O into the connecting pieces B on the other side.
11. Repeat points 8 – 10 for the second set.
12. Place the rods J onto the rods K.
13. Plug the brackets P onto the thin rod R.
C*4 D*4 E*2
I*1
J*2
K*2
R*1
P*2
O*4
R
P
O
B
C D
E
F
14. Plug the rod R with the brackets P onto the rods J.
15. The frames O can now be pushed up and fixed in place in the position you
want using the cap nuts D. Make sure that they are always at the same
height on both sides.
16. Place the hangers A on top of the rods J if you wish.
F*2
USE
1. Place the clothes rack on a flat, solid surface. Before you hang up any
laundry, make sure that it has been assembled correctly.
2. Connect the mains adapter to the fan G and plug it into a plug socket.
3. Hang up laundry in the usual way.
4. Switch on the fan G using the button. Cold air will flow upwards over the
parts H.
5. After use, switch off the fan G using the button and disconnect the mains
adapter from the mains power and then from the fan G.
TIPS
• The frames O can be fixed on any positions of the rods J and K. To do this,
loosen the cap nuts D on both sides and move the frames O as you wish.
• The frames O can be anchored in the connecting pieces B in three different
positions as you wish. They must engage.
• Up to 10 clothes hangers can be hung in the hangers A.
• The frames O have four hooks on the sides in each case and they can be used
to hang up small items of laundry (e.g. socks) or further clothes hangers.
A
STORAGE
1. Flip down the frames O. To do this, pull them out of their anchoring in the
connecting pieces B.
2. Fold in the hangers A if necessary.
3. Collapse the foot parts L.
4. Pull the mains adapter off the fan G and store it away on its own.
5. Store the clothes rack in a dry, clean place.
DISPOSAL
Dispose of the packaging material in an environmentally friendly
manner so that it can be recycled.
The adjacent symbol (crossed-out bin underlined) means that used
devices should not be disposed of in the domestic waste, but should
instead be taken to special collection and return systems.
M
Owners of used devices from private households can take them free of
charge to the collection points of the public waste disposal authorities
or the disposal points which are set up by manufacturers and distribu-
tors under the Electrical Equipment Act so that they can be disposed
of in an environmentally friendly way and valuable raw materials can
be recovered. If they are not disposed of properly, toxic ingredients may
escape into the environment and cause harm to the health of humans,
animals and plants. Businesses which market electrical and electronic
devices are also obliged to take back used devices.
Waste prevention makes an even more valuable contribution to protecting
the environment. This means if possible, as well as continuing to use or
repair, passing it on to another user also represents an ecologically bene-
ficial alternative to disposal.
DS Produkte GmbH, Stormarnring 14, 22145 Stapelfeld, Germany
Am Heisterbusch 1, 19258 Gallin, Germany
✆
+49 38851 314650 *) | kundenservice@dspro.de
*) Calls to German landlines are subject to your provider's charges.
Operating Instructions
Customer Service:
All rights reserved.
