SCAMSET2 – 2-CHANNEL B/W VIDEO MONITORING SYSTEM WITH TWO-WAY AUDIO
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying this product. Please read the manual thoroughly before bringing this device into service. Make
sure that the device was not damaged in transit. If the device is damaged, you should contact your dealer.

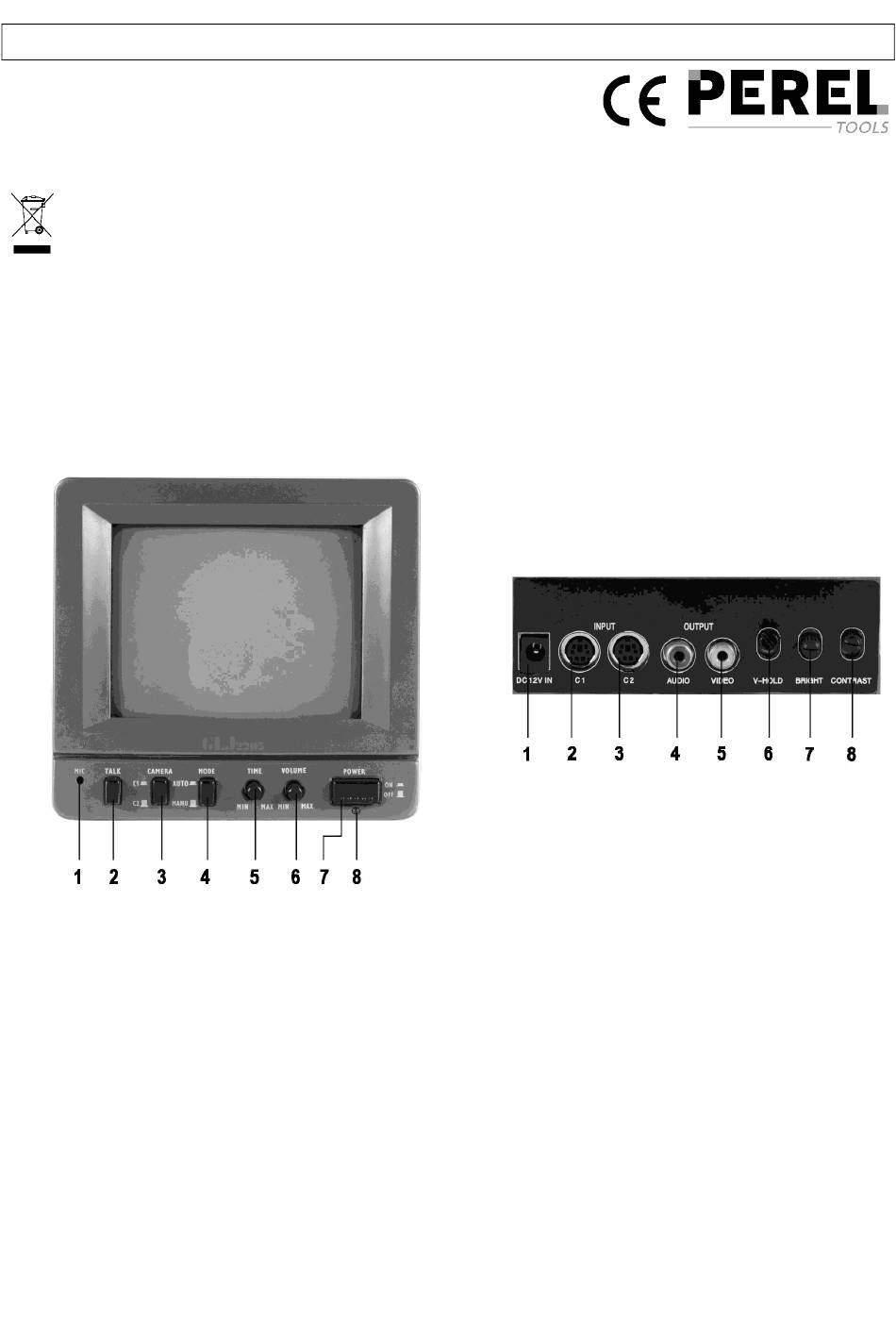

2. Front & Back Panel Description
FRONT
1. microphone
2. talk button
3. camera1/2 selector
4. auto/manual selector
5. camera dwell adjustment ("time")
6. volume button
7. power ON/OFF button
8. power indicator
3. Power Supply
• Operating tension 12VDC, current 1000mA
• Mind the polarity when connecting the power supply
SCAMSET2
BACK
1. DC input socket
2. camera 1 input socket
3. camera 2 input socket
4. audio out socket
5. video out socket
6. V-hold adjustment
7. brightness adjustment
8. contrast adjustment
