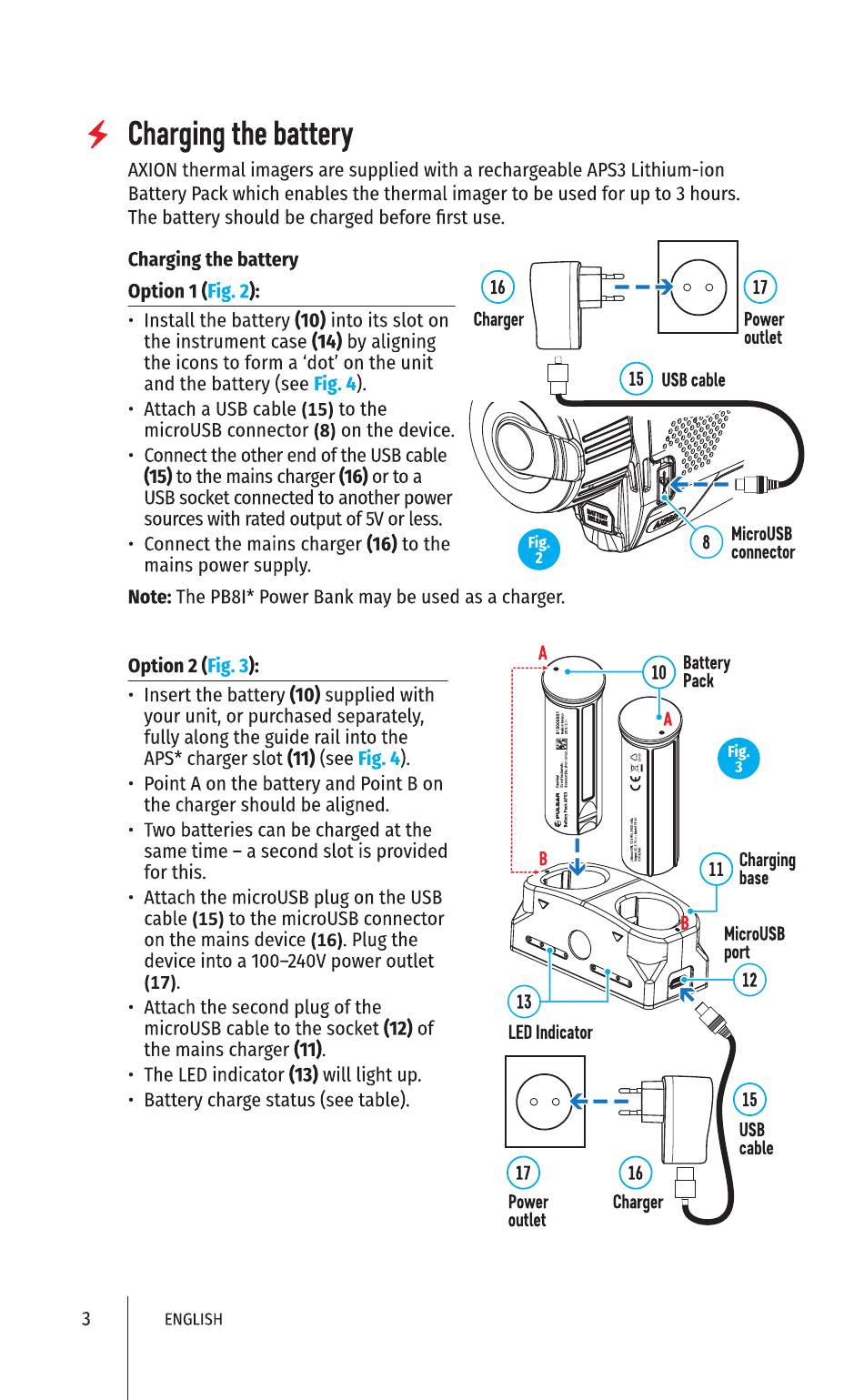

4 Charging thebattery
AXION thermal imagersare supplied with a rechargeableAPS3 Lithium-ion
Battery Pack which enables the thermal imager to be used for up to 3 hours.
Thebattery should be chargedbeforefirst use.
Chargingthe battery
OptionI (Fig.2):
nstall the battery (10) into its slot on
the instrument case (14) by aligning
the icons to form a 'dot' on the unit
and the battery (see Fig.4).
• Attach a USBcable (15) to the
microUSB connector (8) on the device.
• Connect the other end of the USB cable
(15)to the mainscharger(16)or to a
USBsocket connected to another power
sources with rated output of5V or less.
• Connectthe mains charger(16) to the
mains power supply.
Note: The PB81*Power Bank may be used as a charger.
Option 2 (Fi
Insert the battery (10) supplied with
your unit, or purchasedseparately,
fully along the guide rail into the
APS*chargerslot (11)(see Fig.4)
• PointA on the battery and Point B on
the chargershould be aligned.
• Two batteries can be charged at the
same time - a secondslot is provided
for this.
• Attach the microUSBplug on the USB
cable (15) to the microUSB connector
on the mains device(16). Plugthe
device into a 100-240Vpower outlet
(17).
• Attach the second plug of the
microUSB cable to the socket(12) of
the mains charger(11).
• The LEDindicator (13)will light up.
• Batterychargestatus (seetable).
3 ENGLISH
16
Charger
15
13
LED Indicator
Power Charger
outlet
17
Power
outlet
USB cable
MicroUSB
connector
Battery
10
Pack
Fig.
Charging
11
base
MicroUSB
port
12
USB
cable
