Seite 1

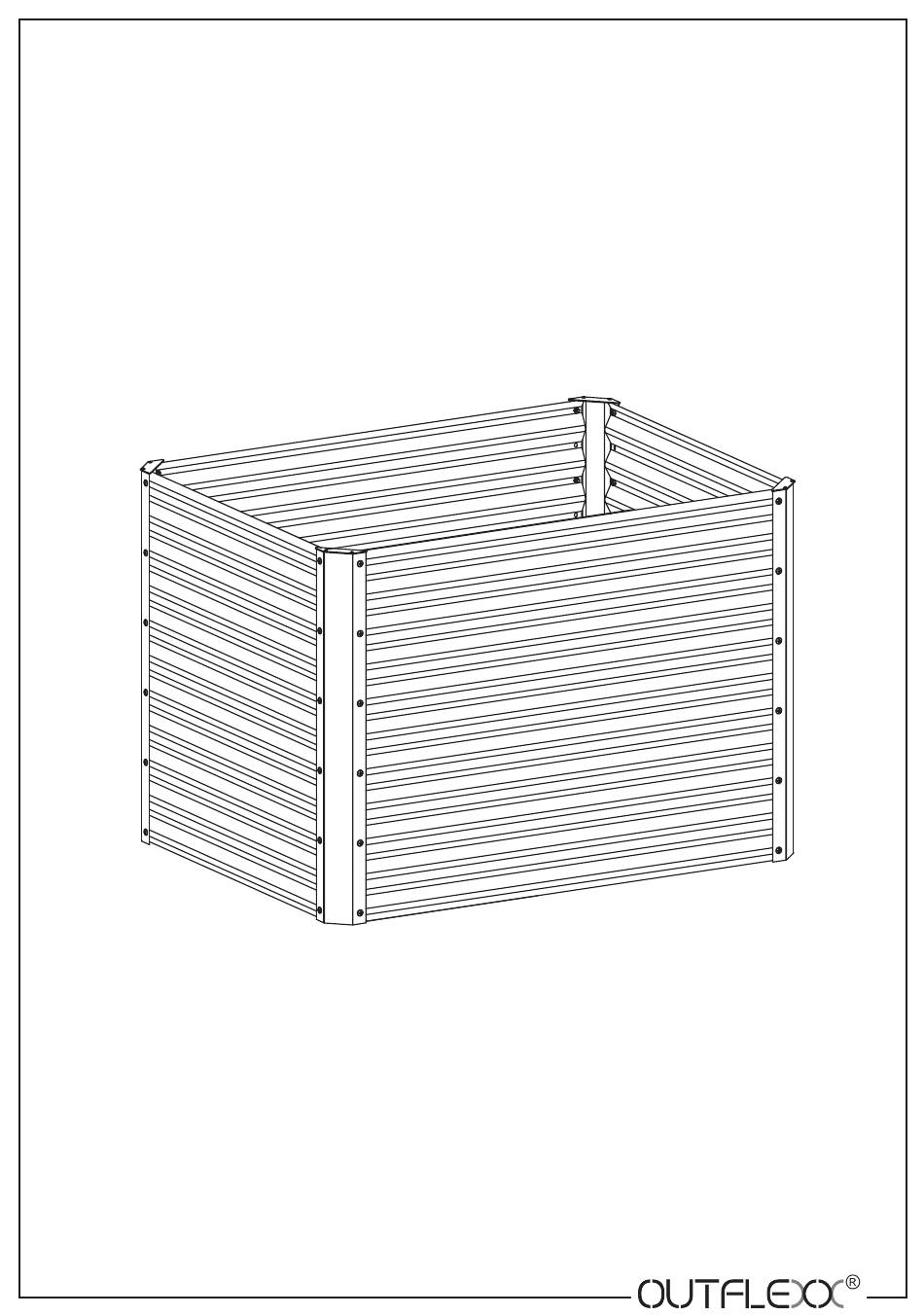

Montageanleitung Assembly Instruction Art.Nr.: 14249 / 14887 PRODUCT SIZE(LxWxH):120x90x84cm PLEASE READ CAREFULLY BEFORE ASSEMBLY Produktmaße: (L x B x H): 120 x 90 x 84 cm Bitte lesen Sie sich diese Anleitung sorgfältig vor der Montage durch...
Seite 2
PART Montieren Sie alle Bleche wie folgt und Install all the plates as shown and sichern Sie diese mit den mitgelieferten secure with the nuts and bolts provided. Schrauben und Muttern. 1100mm 865mm M6X12 4.2m Ø4X16D Y1&Y2 Y1&Y2 Y1&Y2 Fixieren Sie das Sicherheitsgummi J01 rund um die Randöffnung Install the protected rubber J01 around the edge as shown.
