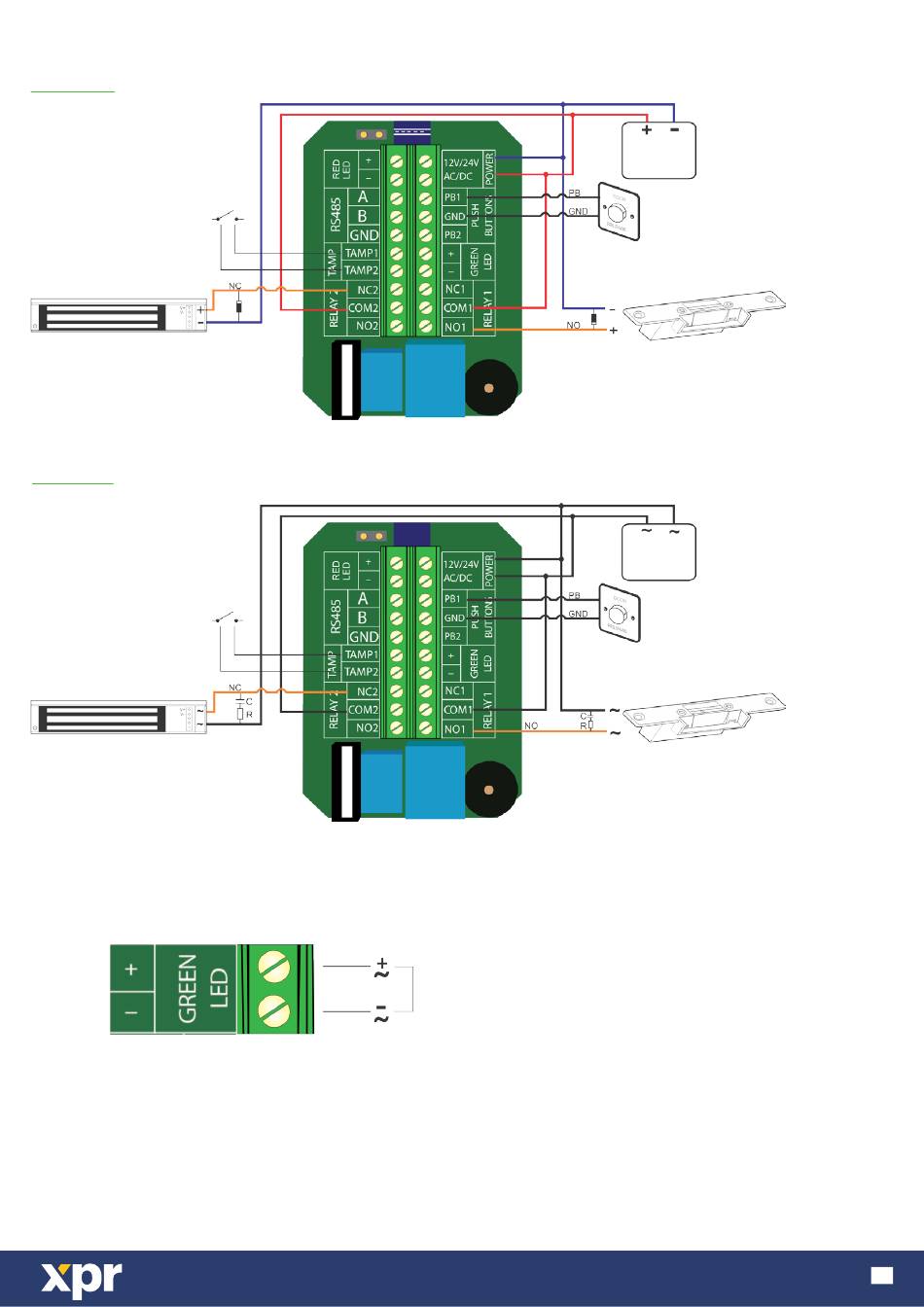

WIRING/ CÂBLAGE/ COLLEGAMENTO ELETTRICO/ CABLEADO/ VERDRAHTUNG/ BEDRADING
12 - 24 VDC(CC)
to alarm system
Electro Magnetic Lock
(DC powered)
ex. 1N4001
12 - 24 VAC(CA)
to alarm system
Electro Magnetic Lock
(AC powered)
R = 10K / ½W
VOLTAGE FREE LEDS/ LED SANS TENSION/ LED PRIVI DI TENSIONE/
LED LIBRES DE TENSIÓN/ POTENTIALFREIE LEDS/ SPANNINGSLOZE LEDS
LED
Diode
C = 470 nF
www.xprgroup.com
Diode
ex. 1N4001
C = 470 nF
R = 10K / ½W
12 - 24 V AC/DC (CA/CC)
DC Power
Supply
Exit Button
(NO, mechanical or relay
dry contact)
Electric Door Strike
(DC powered)
DC Power
Supply
Exit Button
(NO, mechanical or relay
dry contact)
Electric Door Strike
(AC powered)
