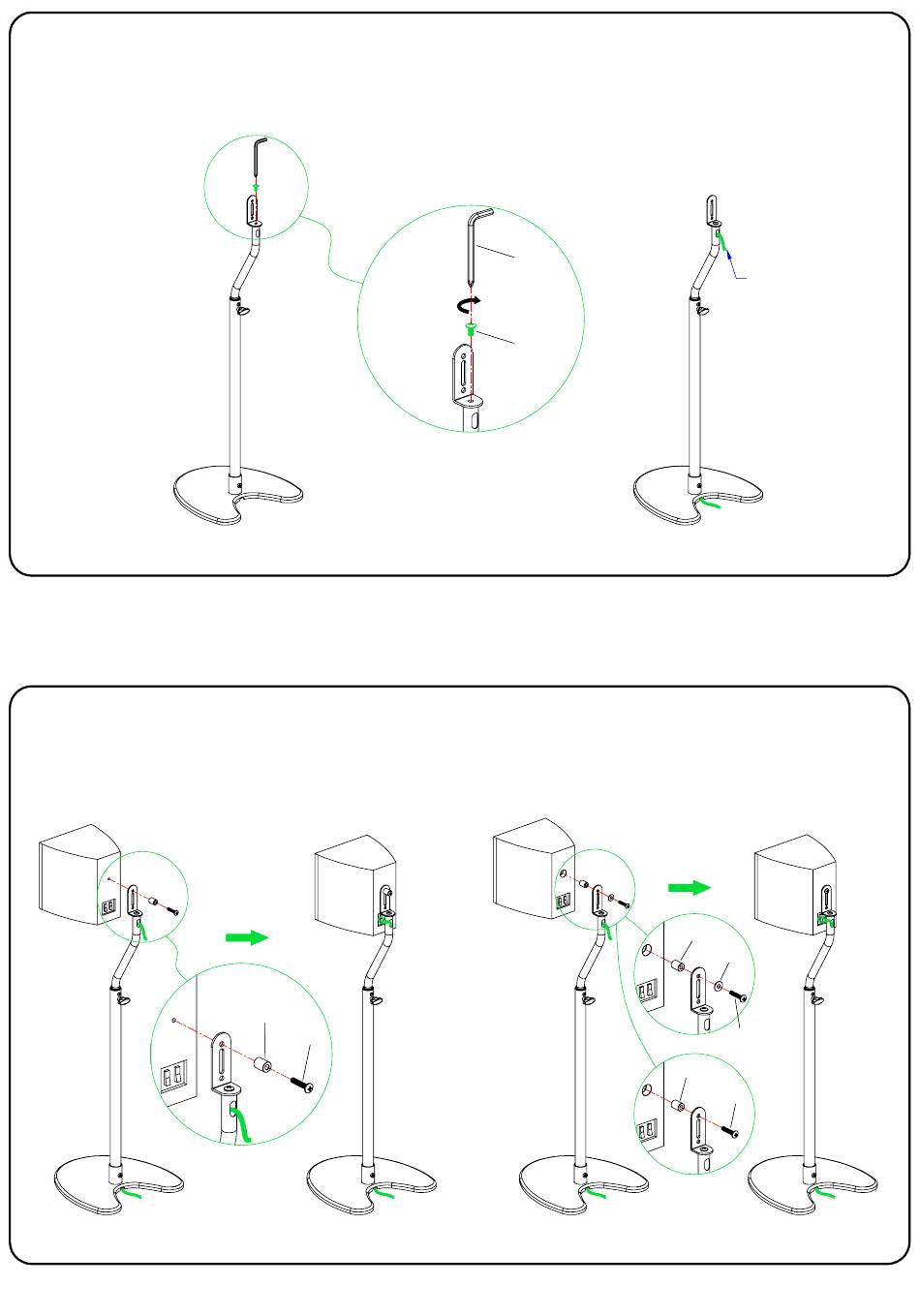

Step 3
Attach the Speaker attachment unit (D) to the Adjusting tube (C) and
fasten it with bolt (E).
Step 4 Attach speaker to assembled stand
Option 1: According to your speaker's installation hole, choose bolt L/M,washer(P)
and spacer (Q) ( as Figure 1 and Figure 2 shows) to attach it . Then plug the wires.
For screw hole on flat
panel: Use bolt L/M and
spacer (Q) to attach.
D
C
Q
L/M
Figure 1
H
E
For inset hole: Use
bolt L/M and,washer(P)
and spacer (Q) to attach.
3
Wire
Q
P
L
Q
M
Figure 2
