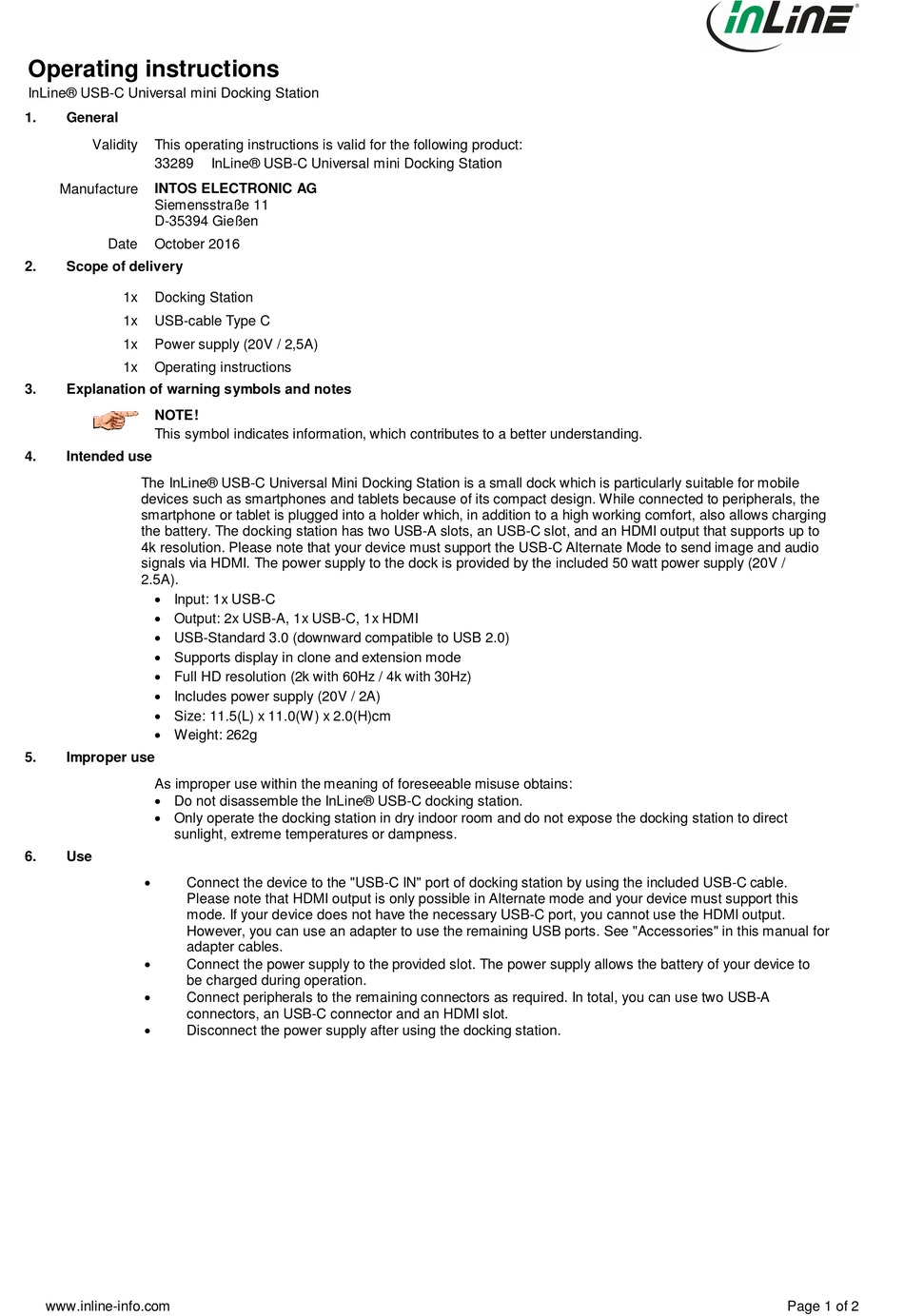

Operating instructions
InLine® USB-C Universal mini Docking Station
1. General
Validity This operating instructions is valid for the following product:
33289
INTOS ELECTRONIC AG
Manufacture
Siemensstraße 11
D-35394 Gießen
Date October 2016
2. Scope of delivery
1x Docking Station
1x USB-cable Type C
1x Power supply (20V / 2,5A)
1x Operating instructions
3. Explanation of warning symbols and notes
NOTE!
This symbol indicates information, which contributes to a better understanding.
4. Intended use
The InLine® USB-C Universal Mini Docking Station is a small dock which is particularly suitable for mobile
devices such as smartphones and tablets because of its compact design. While connected to peripherals, the
smartphone or tablet is plugged into a holder which, in addition to a high working comfort, also allows charging
the battery. The docking station has two USB-A slots, an USB-C slot, and an HDMI output that supports up to
4k resolution. Please note that your device must support the USB-C Alternate Mode to send image and audio
signals via HDMI. The power supply to the dock is provided by the included 50 watt power supply (20V /
2.5A).
� Input: 1x USB-C
� Output: 2x USB-A, 1x USB-C, 1x HDMI
� USB-Standard 3.0 (downward compatible to USB 2.0)
� Supports display in clone and extension mode
� Full HD resolution (2k with 60Hz / 4k with 30Hz)
� Includes power supply (20V / 2A)
� Size: 11.5(L) x 11.0(W) x 2.0(H)cm
� Weight: 262g
5. Improper use
As improper use within the meaning of foreseeable misuse obtains:
� Do not disassemble the InLine® USB-C docking station.
� Only operate the docking station in dry indoor room and do not expose the docking station to direct
sunlight, extreme temperatures or dampness.
6. Use
�
Connect the device to the "USB-C IN" port of docking station by using the included USB-C cable.
Please note that HDMI output is only possible in Alternate mode and your device must support this
mode. If your device does not have the necessary USB-C port, you cannot use the HDMI output.
However, you can use an adapter to use the remaining USB ports. See "Accessories" in this manual for
adapter cables.
�
Connect the power supply to the provided slot. The power supply allows the battery of your device to
be charged during operation.
�
Connect peripherals to the remaining connectors as required. In total, you can use two USB-A
connectors, an USB-C connector and an HDMI slot.
�
Disconnect the power supply after using the docking station.
