Choose a location for the con-
trol panel (9) at a clearly visible
place.
If it is not possible to install
the control panel flush
with the surface, Truma can pro-
vide a surface-mounting frame
(11) on request, as an accessory
(part no. 40000-52600).
Drill a 55 mm diameter hole.
Feed the connection cable for
the solenoid valve (6) and 12 V
supply (10) through the hole
9
in the wall from behind, and
12

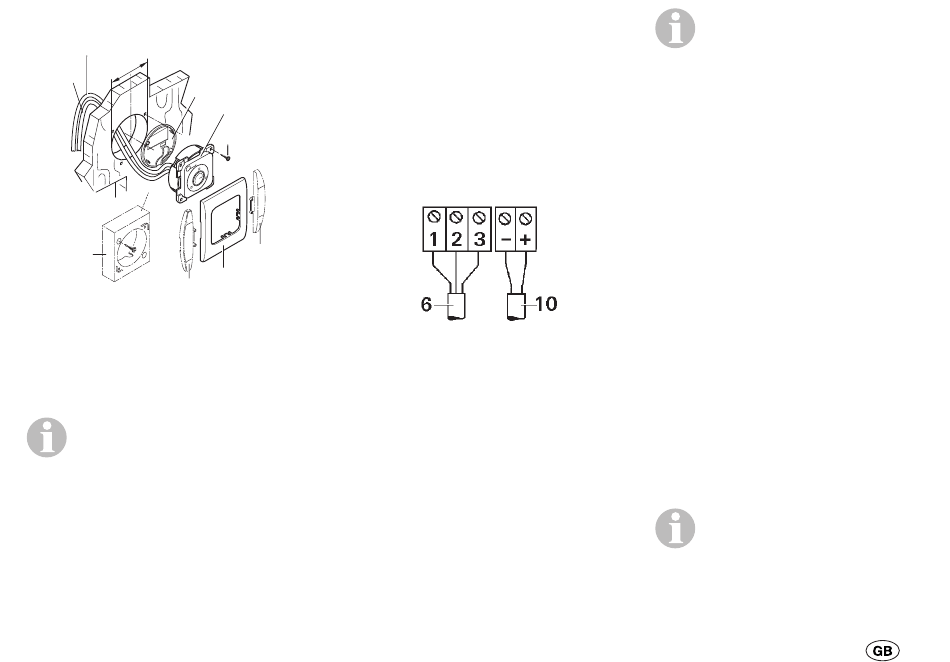

connect it to the terminals of the
control panel as shown on the
connection diagram.
16
15
1 = white
2 = green
3 = brown
- = Negative pole
+ = Positive pole, 12 V DC
Fit the rear cover flap (14) in
place as a stress-relief arrange-
ment and secure the control
panel (9) with 4 screws (12),
then fit the cover frame (15) in
position.
Truma offers side parts
(15) in eight different
colors for finishing the cover
frames (16) in a visually pleasing
way. Please ask your dealer.
Connect appliance to fused
vehicle power supply (central
electrical system 5 – 10 A) us-
ing a cable 2 x 0.75 mm². When
connecting directly to the bat-
tery, always fuse the positive and
negative lead.
Secure all cables with cable clips.
When power supplies are being
used, it must be noted that the
output voltage is between 11 V
and 15 V and the alternating
current ripple is < 1.2 Vss.
It is also possible to com-
bine the gas remote switch
with a gas warning device or a
main switch.
