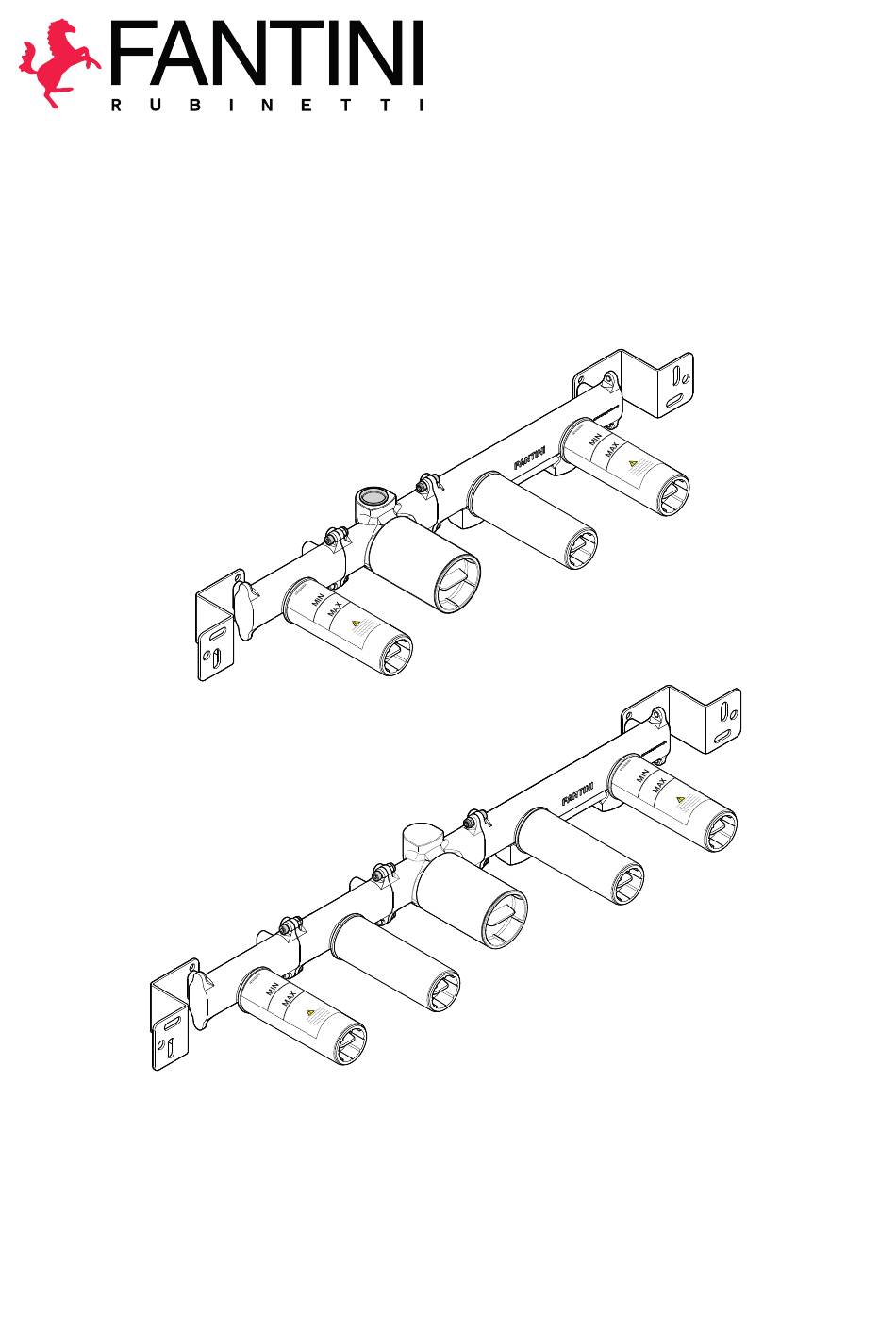

- Seite 1 ICONA Istruzioni / Instructions / Instructions De Montage / Bedienungsanleitung / Instrucciones R017A R019A...
- Seite 2 PREINSTALLAZIONE PRE INSTALLATION PRÉ INSTALLATION VORINSTALLATION PREINSTALACIÓN PRÉ INSTALAÇÃO R017A G 1/2" G 1/2" G 1/2" G 1/2" COD. 05ET010130000000 COD. 05ET010130000000 05ET010350000000 05ET010350000000 FOR ALL OTHER FOR ALL OTHER SERIES SERIES ONLY FOR ONLY FOR AF-21 AF-21 A817B A817B A819B A819B LEGGERE MANUALE ISTRUZIONI...
- Seite 3 PREINSTALLAZIONE PRE INSTALLATION PRÉ INSTALLATION VORINSTALLATION PREINSTALACIÓN PRÉ INSTALAÇÃO R019A G 1/2" G 1/2" G 1/2" G 1/2" COD. 05ET010130000000 05ET010350000000 COD. 05ET010130000000 05ET010350000000 FOR ALL OTHER FOR ALL OTHER SERIES SERIES ONLY FOR ONLY FOR AF-21 AF-21 A817B A817B A819B A819B LEGGERE MANUALE ISTRUZIONI...
-
Seite 4: Dati Tecnici
DATI TECNICI - TECHNICAL DETAILS - DONNÉES TECHNIQUES TECHNISCHE DATEN - DATOS TÉCNICOS - DADOS TÉCNICOS Pressione minima Minimum pressure Pression minimum 1 BAR Pressione massima Maximum pressure Pression maximum 10 BAR Press. di esercizio consigliata Reccomended working pressure Pression optimale de service 2-5 BAR Temperatura massima Max. - Seite 5 INSTALLAZIONE INSTALLATION INSTALLATION INSTALLATION INSTALACIÓN INSTALAÇÃO ART. R017A pag. 16,17,18,19 ART. R019A pag. 20,21,22,23...
- Seite 6 INSTALLAZIONE - INSTALLATION - INSTALLATION INSTALLATION - INSTALACIÓN - INSTALAÇÃO INSTALLAZIONE SU MURATURA / INSTALLING ON BRICKWORK / INSTALLATION SUR MUR /INSTALLATION AUF MAUERWERK / INSTALACIÓN EN ALBAÑILERÍA INSTALAÇÃO EM PAREDE DE ALVENARIA INSTALLAZIONE SU CARTONGESSO / INSTALLING ON PLASTERBOARD / INSTALLATION SUR PLACOPLÂTRE / INSTALLATION AUF GIPSKARTON / INSTALACION EN CARTÓN-YESO / INSTALAÇÃO EM PLACA DE GESSO www.youtube.com/watch?v=69oGjTSBOeg Incollare l’etichetta GIALLA su...
- Seite 7 INSTALLAZIONE - INSTALLATION - INSTALLATION INSTALLATION - INSTALACIÓN - INSTALAÇÃO INSTALLAZIONE SU MURATURA / INSTALLING ON BRICKWORK / INSTALLATION SUR MUR /INSTALLATION AUF MAUERWERK / INSTALACIÓN EN ALBAÑILERÍA INSTALAÇÃO EM PAREDE DE ALVENARIA INSTALLAZIONE SU CARTONGESSO / INSTALLING ON PLASTERBOARD / INSTALLATION SUR PLACOPLÂTRE / INSTALLATION AUF GIPSKARTON / INSTALACION EN CARTÓN-YESO / INSTALAÇÃO EM PLACA DE GESSO www.youtube.com/watch?v=69oGjTSBOeg Incollare l’etichetta GIALLA su...
- Seite 8 INSTALLAZIONE INSTALLATIO INSTALLATION INSTALLATIO INSTALACIÓN INSTALAÇÃO R017A INSTALLAZIONE SU MURATURA INSTALLING ON BRICKWORK INSTALLATION SUR MUR INSTALLATION AUF MAUERWERK INSTALACIÓN EN ALBAÑILERÍA INSTALAÇÃO EM PAREDE DE ALVENARIA 05ET010350000000 COD. 05ET010130000000 05ET010350000000 COD. 05ET010130000000 FOR ALL OTHER FOR ALL OTHER SERIES SERIES ONLY FOR ONLY FOR...
- Seite 9 INSTALLAZIONE INSTALLATION INSTALLATION INSTALLATIO INSTALACIÓN INSTALAÇÃO R017A INSTALLAZIONE SU CARTONGESSO INSTALLING ON PLASTERBOARD INSTALLATION SUR PLACOPLÂTRE INSTALLATION AUF GIPSKARTON INSTALACIÓN EN CARTÓN-YESO INSTALAÇÃO EM PLACA DE GESSO COD. 05ET010130000000 05ET010350000000 COD. 05ET010130000000 05ET010350000000 FOR ALL OTHER FOR ALL OTHER SERIES SERIES ONLY FOR ONLY FOR...
- Seite 10 INSTALLAZIONE INSTALLATIO INSTALLATION INSTALLATIO INSTALACIÓN INSTALAÇÃO R017A INSTALLAZIONE SU MURATURA INSTALLING ON BRICKWORK INSTALLATION SUR MUR INSTALLATION AUF MAUERWERK INSTALACIÓN EN ALBAÑILERÍA INSTALAÇÃO EM PAREDE DE ALVENARIA COD. 05ET010130000000 COD. 05ET010130000000 ONLY FOR ONLY FOR FOR ALL OTHER FOR ALL OTHER SOLO PER SOLO PER SERIES...
- Seite 11 INSTALLAZIONE INSTALLATION INSTALLATION INSTALLATIO INSTALACIÓN INSTALAÇÃO R017A INSTALLAZIONE SU CARTONGESSO INSTALLING ON PLASTERBOARD INSTALLATION SUR PLACOPLÂTRE INSTALLATION AUF GIPSKARTON INSTALACIÓN EN CARTÓN-YESO INSTALAÇÃO EM PLACA DE GESSO COD. 05ET010130000000 COD. 05ET010130000000 FOR ALL OTHER FOR ALL OTHER SERIES SERIES ONLY FOR ONLY FOR ONLY FOR ONLY FOR...
- Seite 12 INSTALLAZIONE INSTALLATIO INSTALLATION INSTALLATIO INSTALACIÓN INSTALAÇÃO R019A INSTALLAZIONE SU MURATURA INSTALLING ON BRICKWORK INSTALLATION SUR MUR INSTALLATION AUF MAUERWERK INSTALACIÓN EN ALBAÑILERÍA INSTALAÇÃO EM PAREDE DE ALVENARIA COD. 05ET010130000000 05ET010350000000 COD. 05ET010130000000 05ET010350000000 FOR ALL OTHER FOR ALL OTHER SERIES SERIES ONLY FOR ONLY FOR...
- Seite 13 INSTALLAZIONE INSTALLATIO INSTALLATION INSTALLATIO INSTALACIÓN INSTALAÇÃO R019A INSTALLAZIONE SU CARTONGESSO INSTALLING ON PLASTERBOARD INSTALLATION SUR PLACOPLÂTRE INSTALLATION AUF GIPSKARTON INSTALACIÓN EN CARTÓN-YESO INSTALAÇÃO EM PLACA DE GESSO COD. 05ET010130000000 05ET010350000000 COD. 05ET010130000000 05ET010350000000 FOR ALL OTHER FOR ALL OTHER SERIES SERIES ONLY FOR ONLY FOR...
- Seite 14 INSTALLAZIONE INSTALLATIO INSTALLATION INSTALLATIO INSTALACIÓN INSTALAÇÃO R019A INSTALLAZIONE SU MURATURA INSTALLING ON BRICKWORK INSTALLATION SUR MUR INSTALLATION AUF MAUERWERK INSTALACIÓN EN ALBAÑILERÍA INSTALAÇÃO EM PAREDE DE ALVENARIA COD. 05ET010130000000 05ET010350000000 COD. 05ET010130000000 05ET010350000000 FOR ALL OTHER FOR ALL OTHER SERIES SERIES ONLY FOR ONLY FOR...
- Seite 15 INSTALLAZIONE INSTALLATIO INSTALLATION INSTALLATIO INSTALACIÓN INSTALAÇÃO R019A INSTALLAZIONE SU CARTONGESSO INSTALLING ON PLASTERBOARD INSTALLATION SUR PLACOPLÂTRE INSTALLATION AUF GIPSKARTON INSTALACIÓN EN CARTÓN-YESO INSTALAÇÃO EM PLACA DE GESSO COD. 05ET010130000000 COD. 05ET010130000000 FOR ALL OTHER ONLY FOR FOR ALL OTHER ONLY FOR SERIES SERIES SOLO PER...
- Seite 16 INSTALLAZIONE INSTALLATION INSTALLATION INSTALLATION INSTALACIÓN INSTALAÇÃO R017A 1/2” 1/2” 1/2” TEFLON...
- Seite 17 INSTALLAZIONE INSTALLATION INSTALLATION INSTALLATION INSTALACIÓN INSTALAÇÃO COD. 05ET010130000000 05ET010350000000 FOR ALL OTHER SERIES ONLY FOR AF-21 A817B A819B LEGGERE MANUALE ISTRUZIONI READ THE INSTRUCTION MANUAL LIRE LE MANUEL D’INSTRUCTIONS READ THE INSTRUCTIONS MANUAL LESEN SIE BEDIENUNGSANLEITUNG LEGGERE MANUALE LEER MANUAL DE INSTRUCCIONES ISTRUZIONI Filo rivestimento / Edge of the tiling Fil revetement / Verkleidungskante...
- Seite 18 INSTALLAZIONE INSTALLATION INSTALLATION INSTALLATION INSTALACIÓN INSTALAÇÃO OPEN (ON) MAX 10 Bar 5 Bar...
- Seite 19 INSTALLAZIONE INSTALLATIO INSTALLATION INSTALLATIO INSTALACIÓN INSTALAÇÃO 05ET010350000000 05ET010350000000 COD. 05ET010130000000 COD. 05ET010130000000 FOR ALL OTHER FOR ALL OTHER SERIES SERIES ONLY FOR ONLY FOR AF-21 AF-21 A817B A817B A819B A819B LEGGERE MANUALE ISTRUZIONI LEGGERE MANUALE ISTRUZIONI READ THE INSTRUCTION MANUAL READ THE INSTRUCTION MANUAL LIRE LE MANUEL D’INSTRUCTIONS LIRE LE MANUEL D’INSTRUCTIONS...
- Seite 20 INSTALLAZIONE INSTALLATION INSTALLATION INSTALLATION INSTALACIÓN INSTALAÇÃO R019A TEFLON 1/2” 1/2”...
- Seite 21 INSTALLAZIONE INSTALLATIO INSTALLATION INSTALLATIO INSTALACIÓN INSTALAÇÃO COD. 05ET010130000000 05ET010350000000 FOR ALL OTHER SERIES ONLY FOR AF-21 A817B A819B LEGGERE MANUALE ISTRUZIONI READ THE INSTRUCTION MANUAL READ THE LIRE LE MANUEL D’INSTRUCTIONS INSTRUCTIONS MANUAL LESEN SIE BEDIENUNGSANLEITUNG LEGGERE MANUALE ISTRUZIONI LEER MANUAL DE INSTRUCCIONES Filo rivestimento / Edge of the tiling Fil revetement / Verkleidungskante Borde revestimiento / Alinhamento do revestimento...
- Seite 22 INSTALLAZIONE INSTALLATION INSTALLATION INSTALLATION INSTALACIÓN INSTALAÇÃO OPEN (ON) MAX 10 Bar 5 Bar...
- Seite 23 INSTALLAZIONE INSTALLATION INSTALLATION INSTALLATION INSTALACIÓN INSTALAÇÃO COD. 05ET010130000000 05ET010350000000 COD. 05ET010130000000 05ET010350000000 FOR ALL OTHER FOR ALL OTHER SERIES SERIES ONLY FOR ONLY FOR AF-21 AF-21 A817B A817B A819B A819B LEGGERE MANUALE ISTRUZIONI LEGGERE MANUALE ISTRUZIONI READ THE INSTRUCTION MANUAL READ THE INSTRUCTION MANUAL READ THE READ THE...
- Seite 24 - USE - UTILISATION GEBRAUCH - USO - UTILIZAÇÃO Al primo utilizzo o dopo un lungo periodo di inutilizzo, non consumare il primo mezzo litro di ac- qua potabile erogata. Chiudere l’impianto idraulico in caso di prolungata assenza. Controllare periodicamente la tenuta. On first use or following prolonged periods of inactivity, do not use the first half-litre of drinking water dispensed.
- Seite 25 PULIZIA - CLEANING - NETTOYAGE REINIGUNG - LIMPIEZA - LIMPEZA La pulizia delle superfici va fatta utilizzando un panno morbido imbevuto con sapone liquido diluito in acqua: al termine risciaquare e asciugare con cura. Non usare in nessun caso detersivi contenenti sostanze abrasive o a base di acido muriatico, aceto, ammoniaca, acetone, candeggina, acidi di uso domestico, disinfettanti vari o spugne abrasive.
