SETTING UP YOUR OVEN

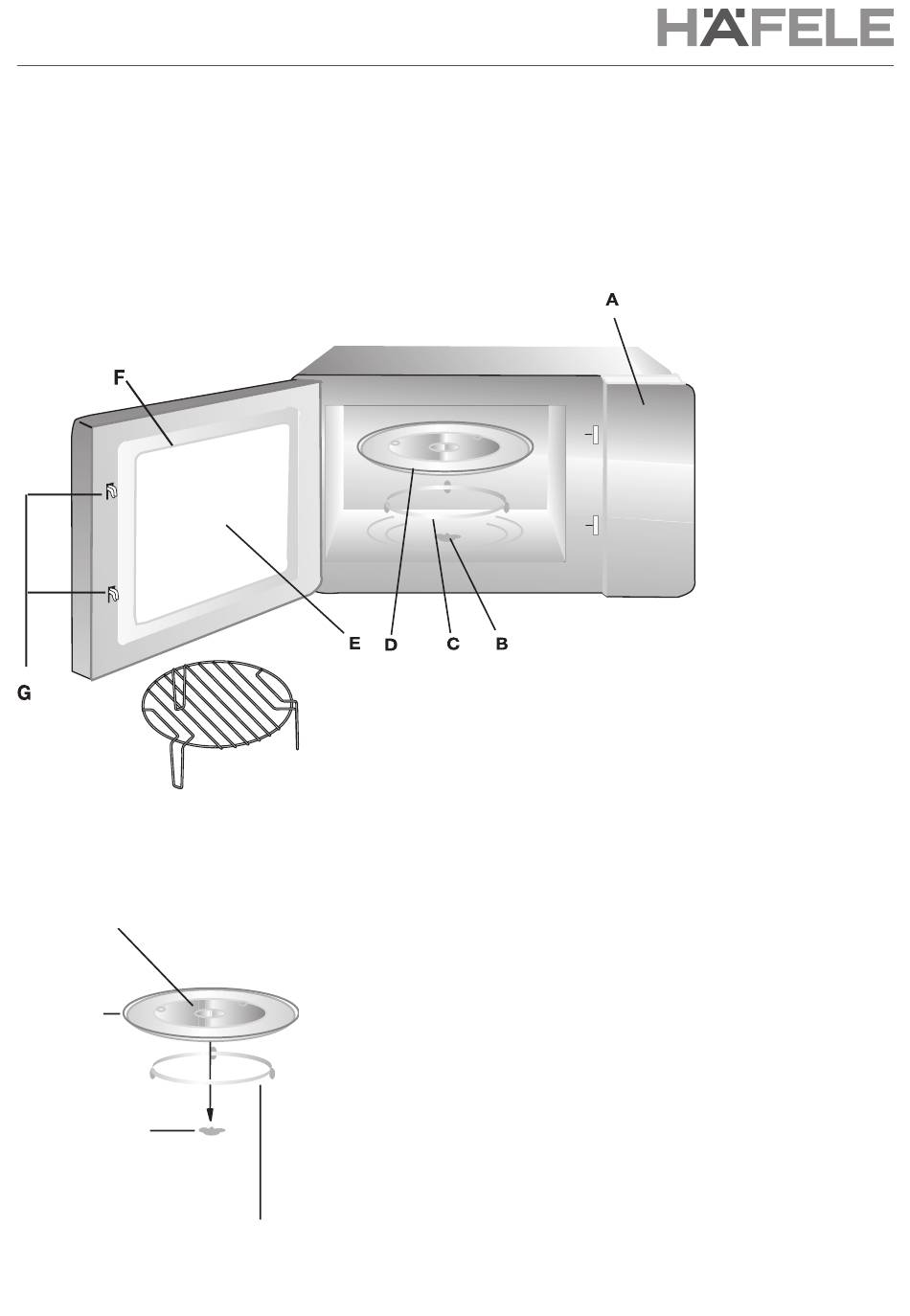

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity. Your oven comes with the
following accessories:
Glass tray
Turntable ring assembly 1
Instruction Manual
Grill Rack (Can not be used in microwave function and
must be placed on the glass tray)
Turntable Installation
Hub (underside)
Glass tray
Turntable shaft
Turntable ring assembly
1
1
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
a. Never place the glass tray upside down. The
b. Both glass tray and turntable ring assembly must
c. All food and containers of food are always placed
d. If glass tray or turntable ring assembly cracks or
glass tray should never be restricted.
always be used during cooking.
on the glass tray for cooking.
breaks, contact your nearest authorized service
center.
23
E) Observation window
F) Door assembly
G) Safety interlock system
