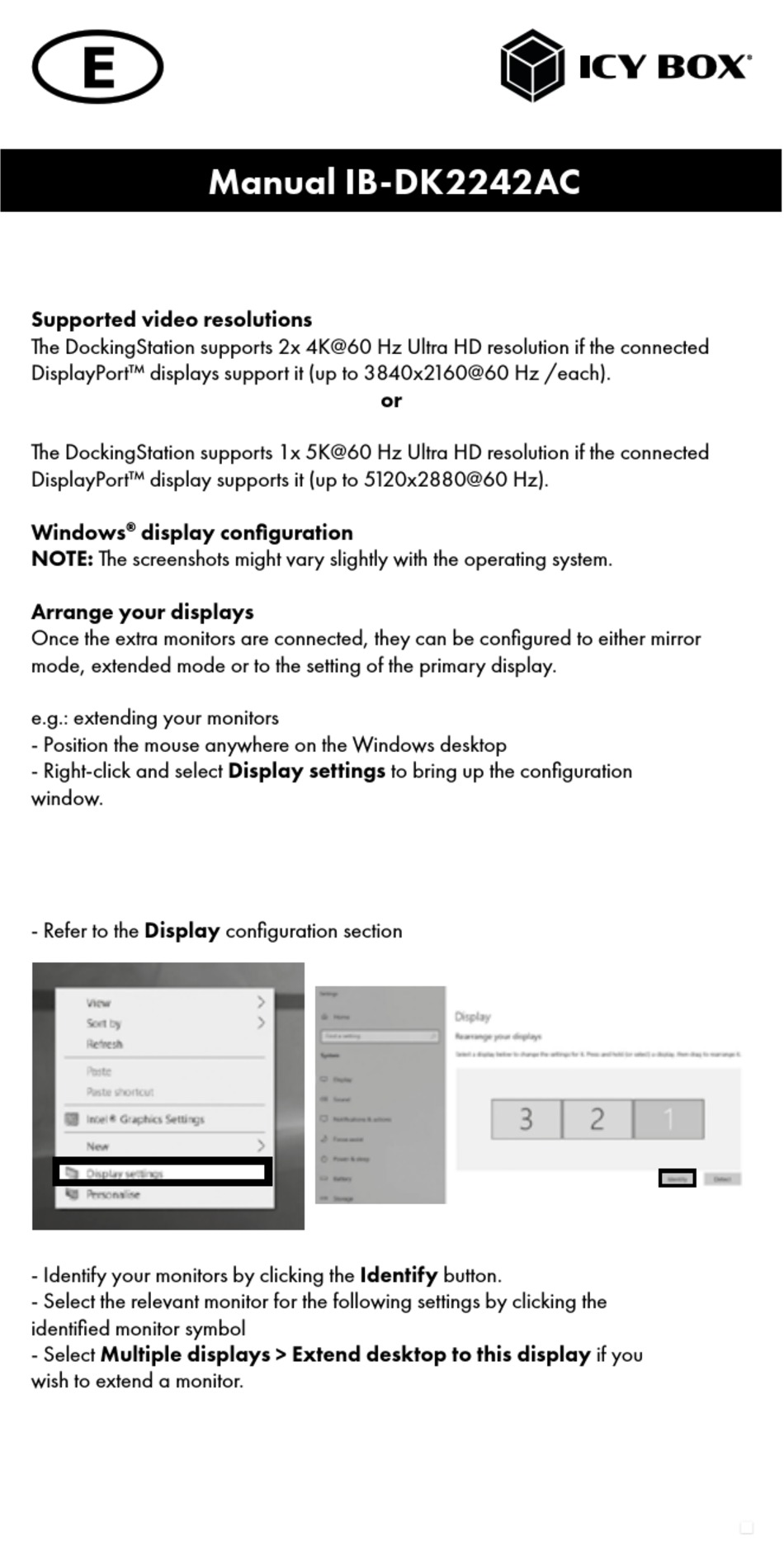

Manual IB-DK2242AC
Supported video resolutions
The DockingStation supports 2x 4K@60 Hz Ultra HD resolution if the connected
DisplayPort™ displays support it (up to 3840x2160@60 Hz /each).
or
The DockingStation supports 1x 5K@60 Hz Ultra HD resolution if the connected
DisplayPort™ display supports it (up to 5120x2880@60 Hz).
Windows display conguration
®
NOTE: The screenshots might vary slightly with the operating system.
Arrange your displays
Once the extra monitors are connected, they can be congured to either mirror
mode, extended mode or to the setting of the primary display.
e.g.: extending your monitors
- Position the mouse anywhere on the Windows desktop
- Right-click and select Display settings to bring up the conguration
window.
- Refer to the Display conguration section
- Identify your monitors by clicking the Identify button.
- Select the relevant monitor for the following settings by clicking the
identied monitor symbol
- Select Multiple displays > Extend desktop to this display if you
wish to extend a monitor.
