See separate document for Super Quick Fist (#544) instructions.
Quick Fist
™
is a one-piece rubber clamp that mounts easily
to keep tools and equipment firmly in place. Use on boats,
off-road trucks, military equipment, ATVs or any vehicle.
Can also be installed in structures such as storage sheds.
Quick Fist clamps are made of heavy duty transportation
grade rubber. They're UV resistant and withstand extreme
heat or cold. Ideal for marine use, since Quick Fist will not
rust or corrode. Mounts easily with one #10 (5 mm) bolt or
screw (not included).
Quick Fist can also be used as a pipe stand-off, particularly
in marine applications. Do not use on exhaust pipes.
• Holds objects from
(22–57 mm)
• Each clamp supports approximately 22 lbs.
(10 kg)
• Mounting base measures
(22 x 70 mm)

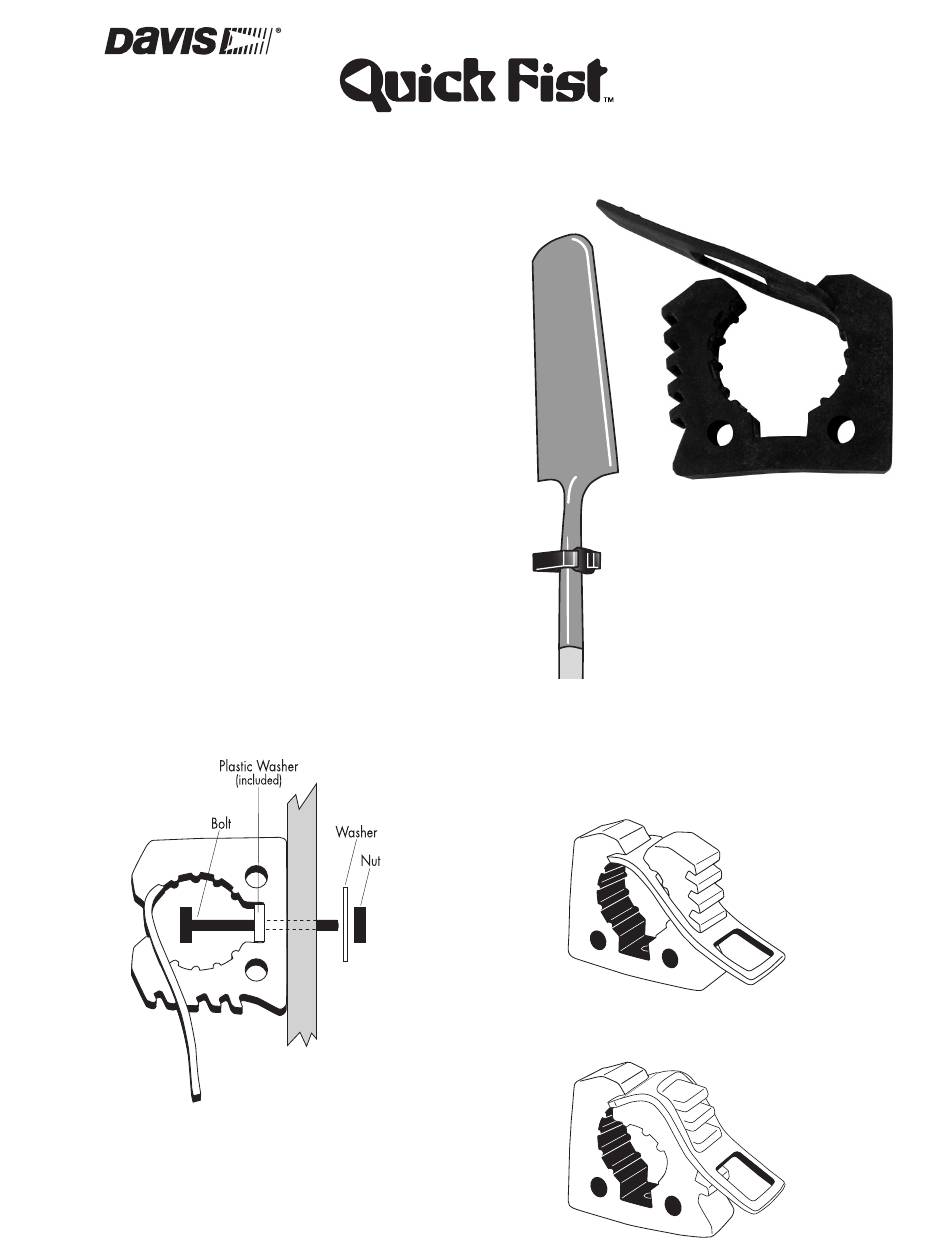

To Install:
Quick Fist can be mounted with the strap facing in
any direction. Use a #10 bolt or screw to fasten.
Do not over tighten.
For certain applications, such as roof racks with
round tubing, you can install Quick Fists using hose
clamps. Make sure you center the hose clamp on
Quick Fist's plastic washer to avoid cutting into the
rubber clamp.
INSTRUCTIONS
7
/
–2
1
/
" in diameter
8
4
7
/
x 2
3
/
"
8
4
To Clamp:
Put the tool or implement into the jaws. With both of
your thumbs on the strap, PUSH the strap to reach
desired tightness. Then lock in place.
For small diameter objects, push jaw without strap
down inside other jaw, then tighten strap on top of
jaw.
#540
#540 Quick Fist
Heavier equipment can be
mounted with multiple
Quick Fists, or use
Super Quick Fist (#544)
