1, 2, & 3) to control music playback. All of the tracks for an artist or album will playback until
the end of that folder is reached and then repeat. Note: Some MP3 players, including the iPod,
use dedicated software to playback music and to charge, and therefore won't be recognized
by the NetWorks+ radio. In these cases, when such a device is connected to the USB input,
the LCD will briefly show "USB unsupported" and might not charge. To play these MP3 players,
including the iPod, connect the player's headphone output to the NetWorks+ Auxiliary input
and charge the device (if necessary) through other means. If a Real music file will not play,
it should be converted to MP3, WMA, or AAC format for playback through the NetWorks+.
6. PRESETS #1-5, SOURCE, MENU/SELECT, pq/t u: See "Guide to Features (Remote Control)".

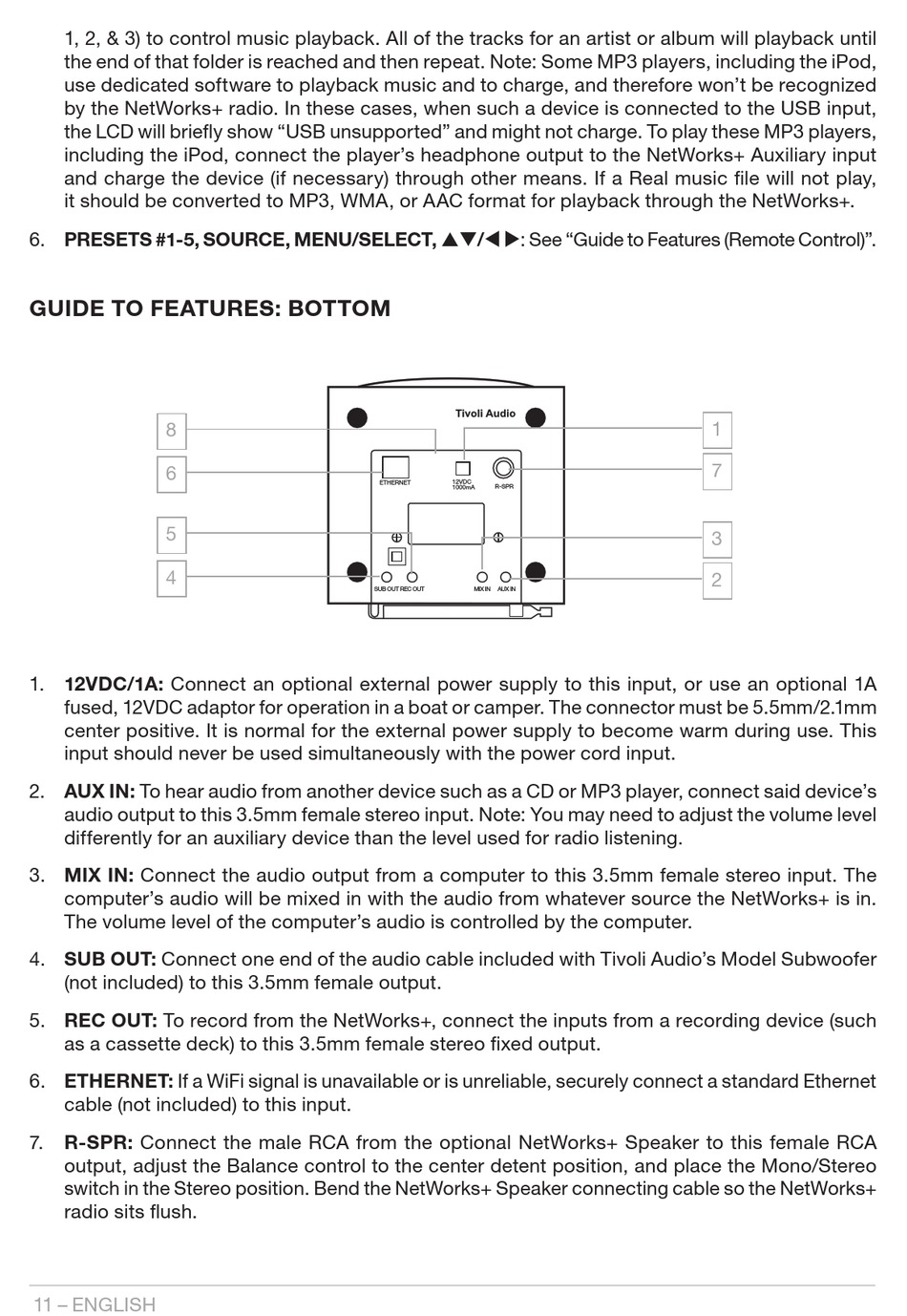

GUIDE TO FEATURES: BOTTOM
8
6
5
4
1. 12VDC/1A: Connect an optional external power supply to this input, or use an optional 1A
fused, 12VDC adaptor for operation in a boat or camper. The connector must be 5.5mm/2.1mm
center positive. It is normal for the external power supply to become warm during use. This
input should never be used simultaneously with the power cord input.
2. AUX IN: To hear audio from another device such as a CD or MP3 player, connect said device's
audio output to this 3.5mm female stereo input. Note: You may need to adjust the volume level
differently for an auxiliary device than the level used for radio listening.
3. MIX IN: Connect the audio output from a computer to this 3.5mm female stereo input. The
computer's audio will be mixed in with the audio from whatever source the NetWorks+ is in.
The volume level of the computer's audio is controlled by the computer.
4. SUB OUT: Connect one end of the audio cable included with Tivoli Audio's Model Subwoofer
(not included) to this 3.5mm female output.
5. REC OUT: To record from the NetWorks+, connect the inputs from a recording device (such
as a cassette deck) to this 3.5mm female stereo fixed output.
6. ETHERNET: If a WiFi signal is unavailable or is unreliable, securely connect a standard Ethernet
cable (not included) to this input.
7. R-SPR: Connect the male RCA from the optional NetWorks+ Speaker to this female RCA
output, adjust the Balance control to the center detent position, and place the Mono/Stereo
switch in the Stereo position. Bend the NetWorks+ Speaker connecting cable so the NetWorks+
radio sits flush.
11 – ENGLISH
12VDC
ETHERNET
1000mA R-SPR
SUB OUT REC OUT MIX IN AUX IN
1
7
3
2
