ARNOLD BR 103 Kurzanleitung

HN2563/S, HN2564/S, HN2565/S, HN2566/S
2
3
Manufactured by:
Hornby Hobbies Ltd
Westwood, Margate, Kent, CT9 4JX, UK
EU Authorised Representative:
Hornby Italia SRL
Viale dei Caduti, 52/A6, Castel Mella (BS), Italy, 25030
www.hornbyinternational.com
1
3
2
4
8
10
5
6
7

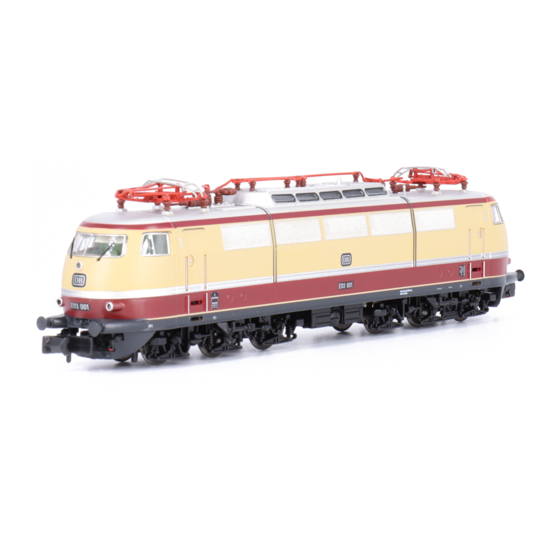

Elektrolokomotive BR 103

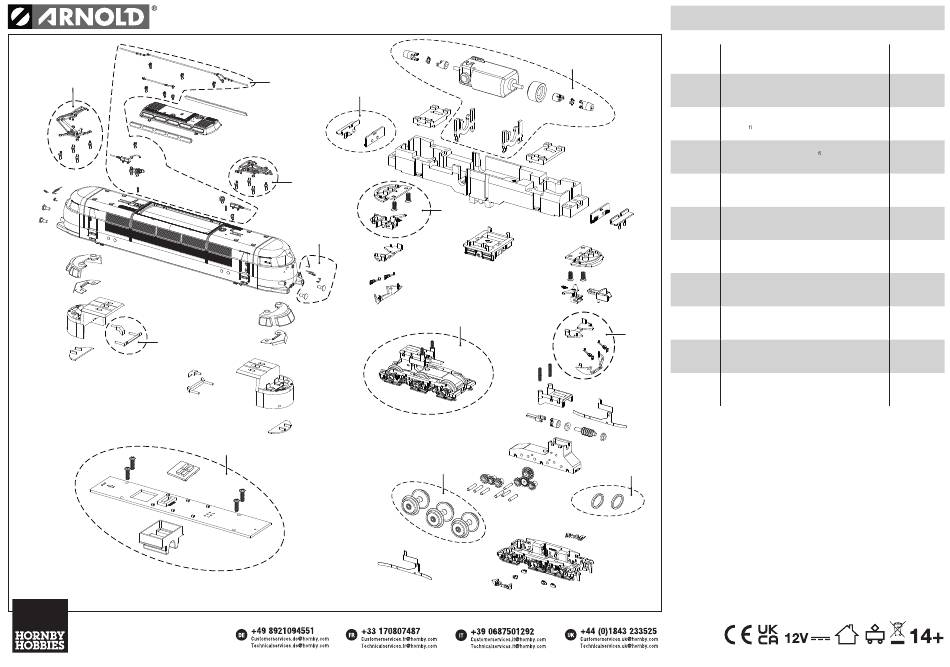

ERSATZTEILLISTE / PIECES DE RECHANGE / LISTA RICAMBI / LIST OF SPARES
Nummer Bezeichnung
Nombre Description
Numero Descrizione
Number Description
Dachausrüstung
Sachet de détaillage de toiture
1
Particolari tetto
Roof accessories
Stromabnehmer
Pantographes
2
Pantogra
Pantographs
Platine mit LEDs, Lichtleiter
Carte de circuit imprimé èclairage, bre optiques
3
Circuito stampato luci, guida luminosa
Light PCB, light diffusers
Zubehörteile für Lokomotivfront
Sachet de détaillage frontal et chassis
4
Particolari frontale e telaio
Front side and chassis accessories
Kupplungsmechanik
Mécanisme d'attelage
5
Timoni di accoppiamento
Coupler mechanism
Drehgestell, komplett
Bogie, complet
6
Carrello, completo
Bogie, complete
Radsätze
Jeu d'essieux
7
Set ruote
Wheels set
Hauptplatine
Circuit imprimé principal
8
Circuito stampato principale
4
Main PCB
Haftreifen
Bandages d'adhérence
9
Anelli di aderenza
Traction tyres
Motor-Satz
Pack moteur
10
Motore
Motor pack
9
Service Sheet HNBS-476u
Issued Nov 2022 rls
Ersatzteil-Nr.
Réf. rechange
Codice ricambio
Spare part ref.
HN2563 HN2563/01
HN2564 HN2563/01
HN2565 HN2563/01
HN2566 HN2566/01
HN2563 HN2563/02
HN2564 HN2563/02
HN2565 HN2563/02
HN2566 HN2566/02
HN2563/03
HN2563 HN2563/04
HN2564 HN2563/04
HN2565 HN2565/04
HN2566 HN2566/04
HN2563/05
HN2563 HN2563/06
HN2564 HN2564/06
HN2565 HN2565/06
HN2566 HN2564/06
HN2563/07
HN2563/08
HN2563/09
HN2563/10
