Flex 25 W Solar Panel
Art.no 36-5150 Model SY-M25WF
Please read the entire instruction manual before using the product
and save it for future reference. We reserve the right for any
errors in text or images and any necessary changes made to
technical data. If you have any questions regarding technical
problems please contact our Customer Services.
Assembly
Note:
As soon as the solar panel is exposed to artificial light or sunlight,
the leads will become live. This is especially important to
remember when connecting several solar panels together.
To avoid short circuits when assembling and connecting solar
panels, turn them away from light sources or cover them so
that they do not produce electricity during the actual
connection procedure.
• The solar panel is designed especially to mount flat onto
most any surface such as boat decks, caravan roofs, etc.
They can be tread upon lightly, but one should still exercise
care when doing so to avoid possible damage.
• The solar panels can also be bent slightly to fit surfaces
which are not perfectly flat.
• Mount the solar panel by using outdoor screws/plugs for
fastening into the mounting holes at the corners of the
solar panel and onto the mounting surface. Avoid drilling
additional holes into the solar panel's frame.
• Never attempt to divide or disassemble the panel.
• Do not place heavy or sharp objects on the solar panel as
these can scratch and damage the product.
• If the solar panel is shaded its power output will be
significantly diminished. Choose a location for the panel with
as little shade as possible.
Connecting
The solar panel has two connecting wires, red and black.
The red wire is + (positive) and the black wire is – (negative).
The red wire is labelled with a (+) symbol. The solar panel
should be connected to a battery system via a charge regulator.
GREAT BRITAIN • customer service tel: 08545 300 9799 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.com/uk

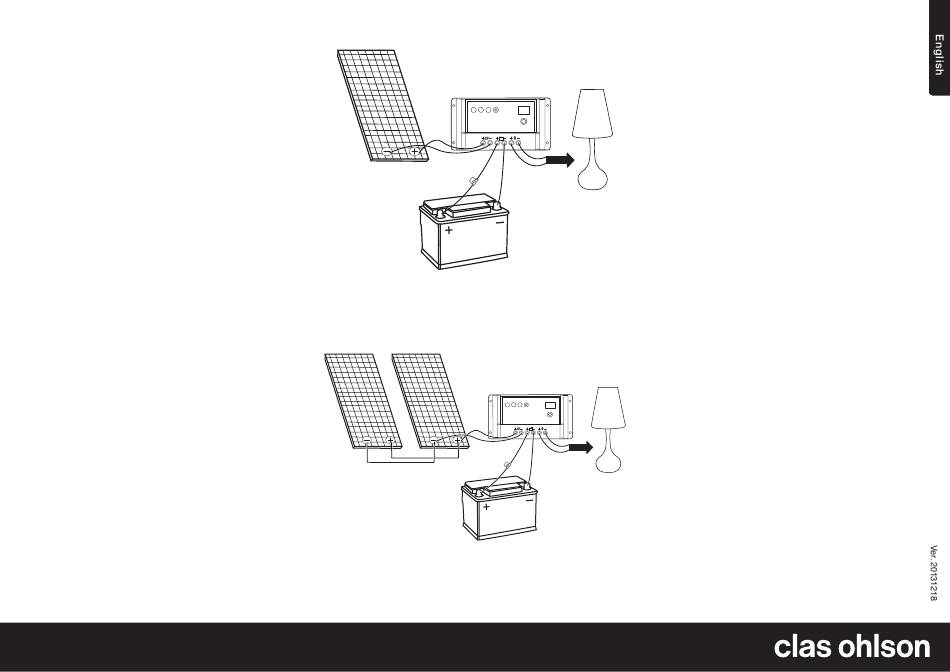

Single solar panel connected to a charge regulator.
Dual parallel connected solar panels connected to
a charge regulator.
Disposal
This product should be disposed of in accordance with local
regulations. If you are unsure how to proceed, contact your
local authority.
Specifications
Output voltage 17.2 V
Max charge power 25 W
1.46 A
Max current
Connection lead 3 m
Size 665 × 355 × 2 mm
Hermetically sealed high-efficiency polycrystalline cells.
Anodized aluminium base plate.
