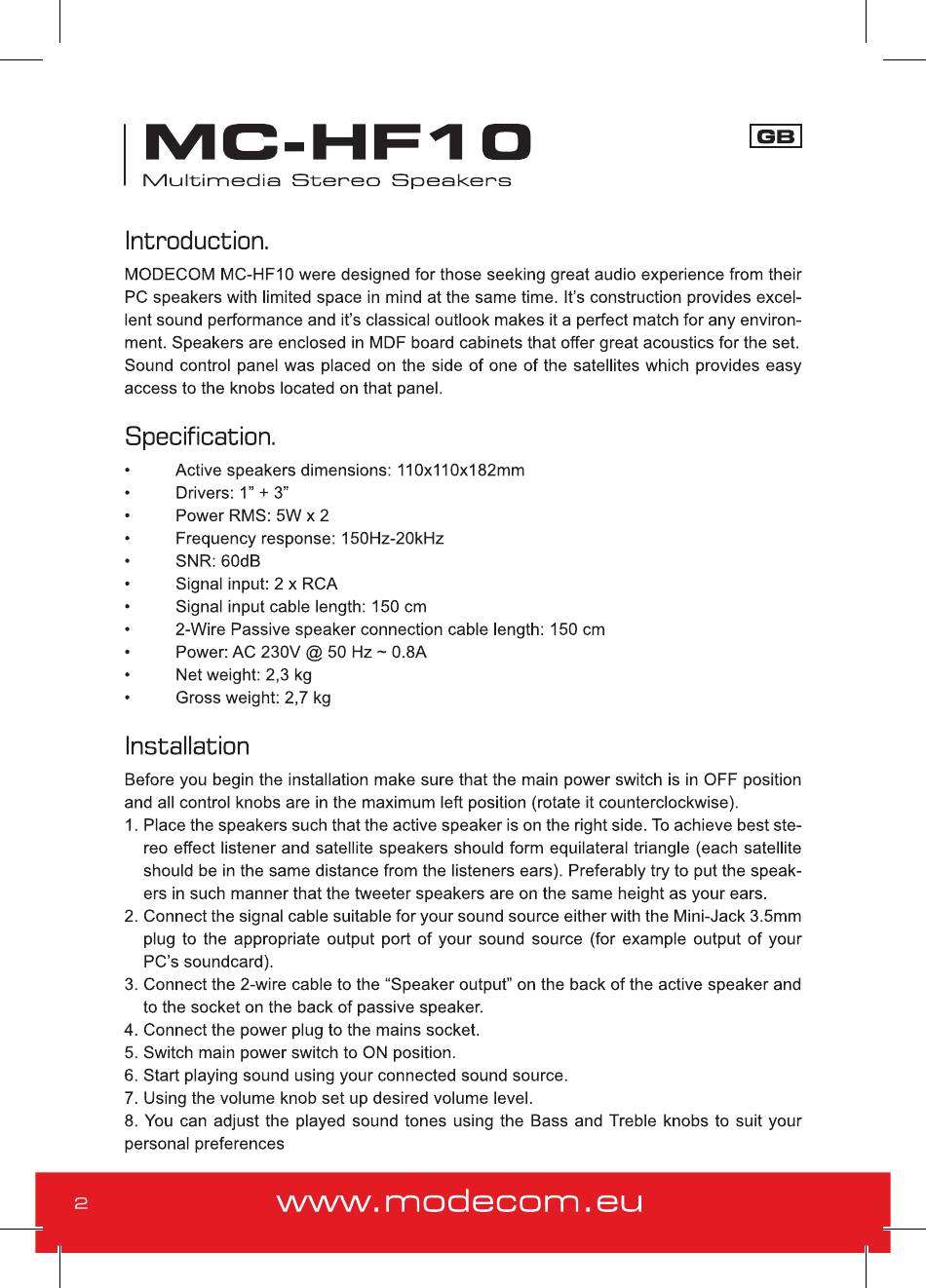

MC-HFI
rvlultirnedia
Stereo
Introduction.
MODECOM MC-HFIO were designed for those seeking great audio experience from their
PC speakers with limited space in mind at the same time. It's construction provides excel
lent sound performance and it's classical outlook makes it a perfect match for any environ-
ment. Speakers are enclosed in MDF board cabinets that offer great acoustics for the set.
Sound control panel was placed on the side of one of the satellites which provides easy
access to the knobs located on that panel.
Specification.
Active speakers dimensions:
Drivers:
1" + 3"
Power
RMS:
5W
Frequency response: 150Hz-20kHz
SNR:
60dB
Signal input: 2 x RCA
Signal input cable length: 150 cm
2-Wire Passive speaker connection cable length: 150 cm
Power: AC 230V @ 50 Hz - O.8A
Net weight: 2,3 kg
Gross weight: 2,7 kg
Installation
Before you begin the installation make sure that the main power switch is in OFF position
and all control knobs are in the maximum left position (rotate it counterclockwise).
. Place the speakers such that the active speaker is on the right side. To achieve best ste-
reo effect listener and satellite speakers should form equilateral triangle (each satellite
should be in the same distance from the listeners ears). Preferably try to put the speak
ers in such manner that the tweeter speakers are on the same height as your ears.
2. Connect the signal cable suitable for your sound source either with the Mini-Jack 3.5mm
plug to the appropriate
PC's soundcard).
3. Connect the 2-wire cable to the "Speaker output" on the back of the active speaker and
to the socket on the back of passive speaker.
4. Connect the power plug to the mains socket.
5. Switch main power switch to ON position.
6. Start playing sound using your connected sound source.
7. Using the volume knob set up desired volume level.
8.
You can adjust the played sound tones using the Bass and Treble knobs to suit your
personal preferences
www.
O
Speakers
110x110x182mm
x 2
output port of your sound source (for example output of your
modecom
. eu
