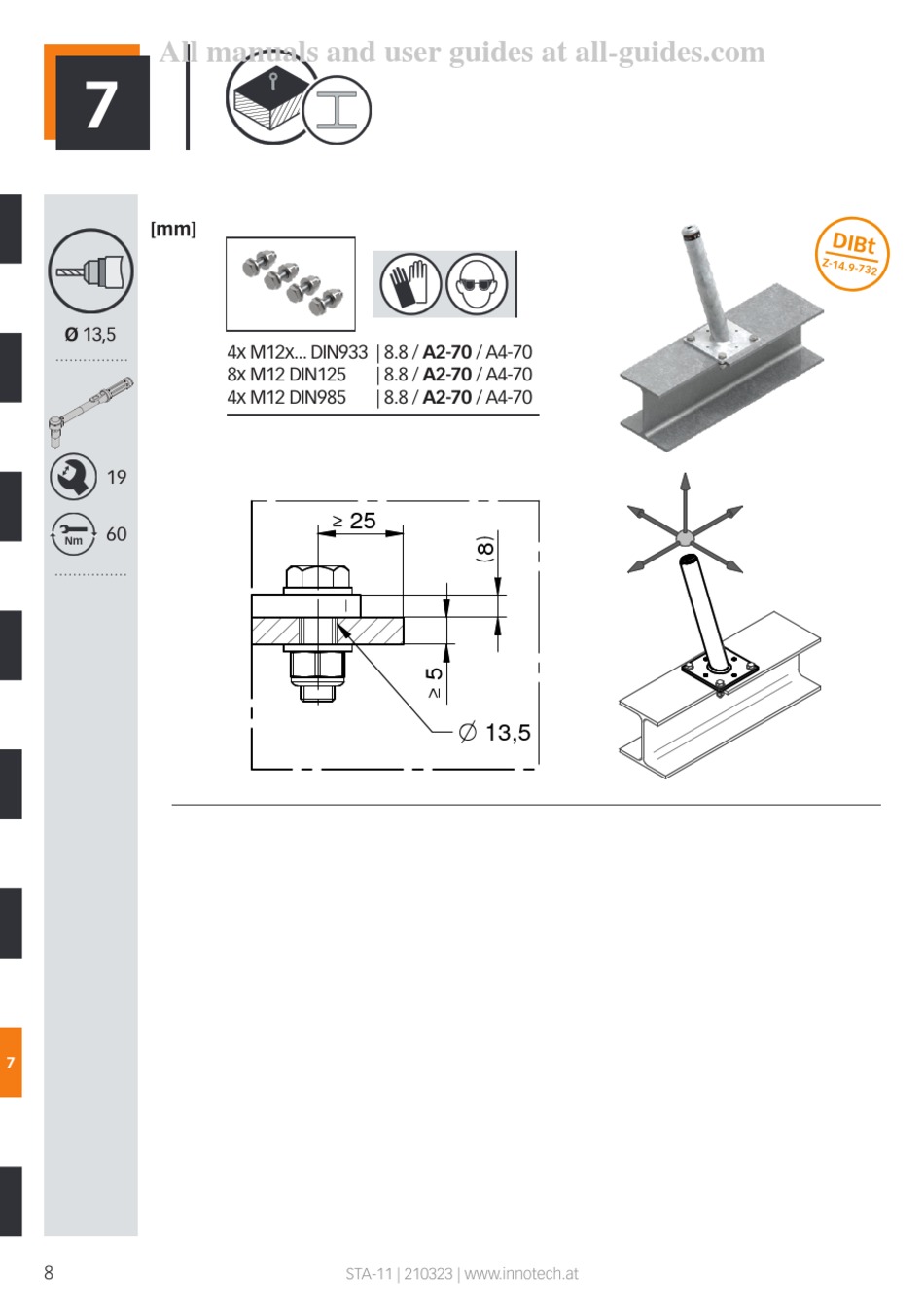

Innotech STA-11 Montageanleitung Seite 8

All manuals and user guides at all-guides.com
7
[mm]
Ø 13,5
19
60
Nm
7
8
4x M12x... DIN933 | 8.8 / A2-70 / A4-70
8x M12 DIN125 | 8.8 / A2-70 / A4-70
4x M12 DIN985 | 8.8 / A2-70 / A4-70
≥
25
STA-11 | 210323 | www.innotech.at
O
13,5
