Xylem Rule 35A Bedienungsanleitung
Schwimmerschalter
Quicklinks
Features
• Patent pending snap switch design
• Snap switch tested to over 1,000,000 cycles @ 12V
• Highly abrasion resistant marine grade blocked wire
• Exclusive moisture tight seals
• Environmentally friendly mercury free design.
Models
Model
Description
35A
Rule-a-Matic
35FA
Rule-a-Matic with fuse holder
37A
Super Switch
37FA
Super Switch with fuse holder
40A
Rule-a-Matic covered switch
40FA
Rule-a-Matic covered switch
with fuse holder
Installation Instructions
The Rule-a-Matic, Super Switch, and Rule-a-Matic Plus
float switches are suitable for any submersible bilge
pump with an operating current rating as listed below.
Maximum Current Rating
Voltage
Rule-a-Matic
12V
14A
24V
7A
32V
n/a
All switches will turn the pump on when the water level
reaches 2" (51mm) and will turn the pump off when
water level falls to 3/4" (19mm). They can also be used
to operate high water alarm systems.
This product must be fused with the correct
recommended fuse size for the pump to which it is
connected. Do NOT use these switches in applications
where the pump is operating above the maximum
current in the table above.
Specifications
Model
Voltage
35A
12/24/32 VDC
37A
12/24/32 VDC
40A
12/24/32 VDC
Max. Current
@ 12V DC
14A
14A
20A
20A
20A
20A
Super Switch /
Rule-a-Matic Plus
20A
10A
6.5A
Wire Size
Wire Length
16 Gauge (1.29mm)
28" (712 mm)
14 Gauge (1.63mm)
28" (712 mm)
14 Gauge (1.63mm)
28" (712 mm)
The Next Generation
Models 35A, 35FA, 37A, 37FA, 40A, 40FA

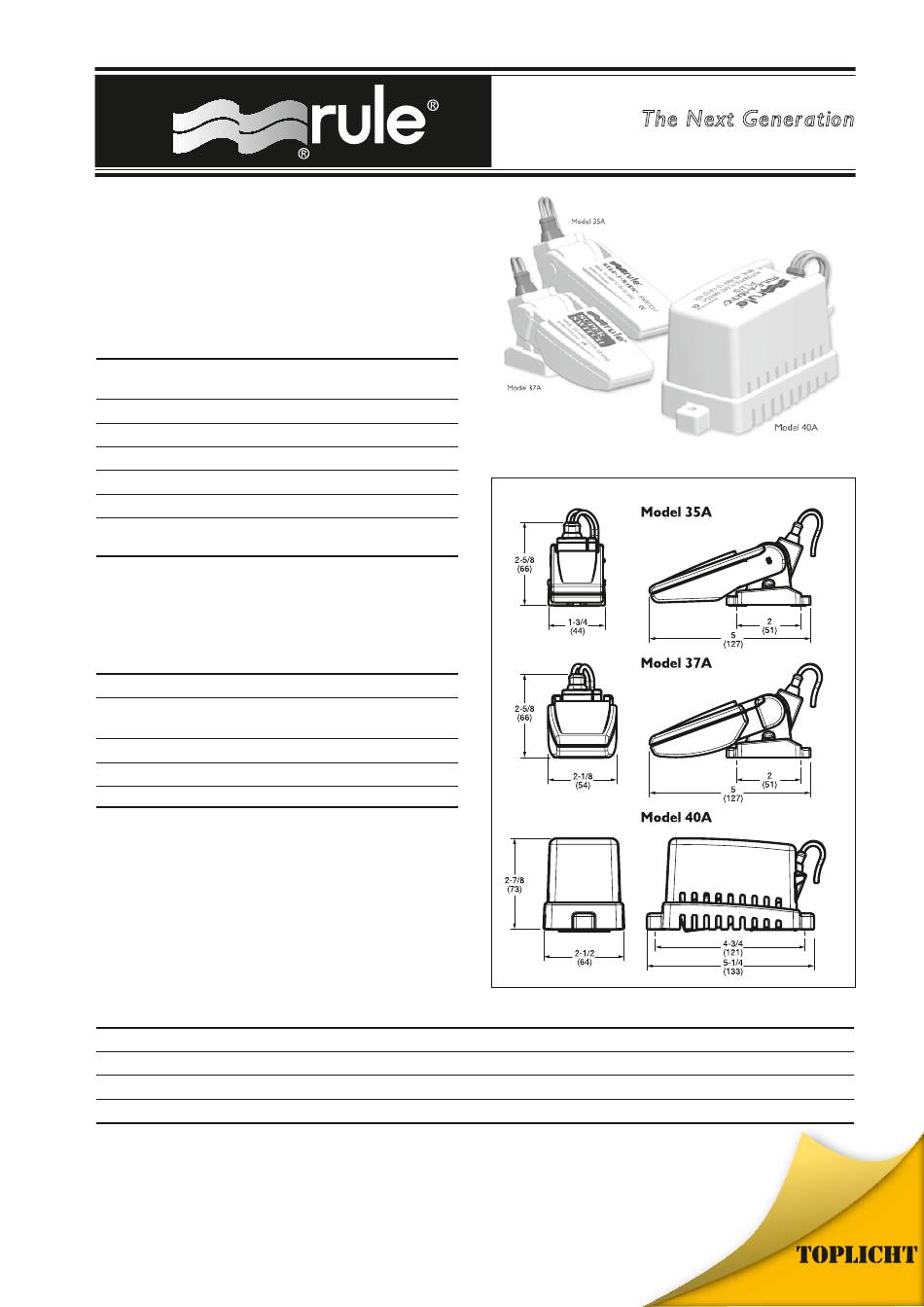

Dimensional Drawings
Dimensions in Inches (millimeters)
Max. Amps
14
20
20
Float Switches
Guard
Warranty
No
2 Years
No
5 Years
Yes
2 Years
Schiffsausrüster
Tel.: +49 ( 0 ) 40 - 88 90 100
www.toplicht.de
Inhaltszusammenfassung für Xylem Rule 35A
- Seite 1 Float Switches The Next Generation Models 35A, 35FA, 37A, 37FA, 40A, 40FA Features • Patent pending snap switch design • Snap switch tested to over 1,000,000 cycles @ 12V • Highly abrasion resistant marine grade blocked wire • Exclusive moisture tight seals •...
- Seite 2 100 Cummings Center, Ste 535-N Bingley Road, Hoddesdon Beverly, MA 01915 Hertfordshire EN11 OBU Tel: 978-281-0440 Tel: +44 (0) 1992 450145 Fax: 978-283-2619 Fax: +44 (0) 1992 467132 © 2011 Xylem Inc Printed in U.S.A. All Rights Reserved Form: 950-0290 Rev. C 11/2012...
- Seite 3 Float Switch Instruction Manual Manuel d’utilisation d’interrupteur à flotteur Bedienungsanleitung für den Schwimmerschalter Manuale delle istruzioni per l’interruttore galleggiante Handleiding vlotterschakelaar Användarhandledning för flottörkontakt Manual de instrucciones del interruptor de flotador...
- Seite 4 This unit is designed for use with fresh water and WARNING salt water ONLY. Use with any other hazardous, caustic, corrosive material could result in damage to the pump and the surrounding environment, possible exposure to hazardous substances and injury. Cette unité...
- Seite 5 L’unità deve essere usata SOLAMENTE con AVVERTENZA acqua dolce o salata. L’uso con altro materiale pericoloso, caustico o corrosivo può danneggiare le pompa e l’ambiente circostante e causare l’esposizione a sostanze pericolose e infortuni alla persona. Deze unit is ontworpen voor gebruik met WAARSCHUWING UITSLUITEND zoetwater en zoutwater.
- Seite 6 STOP...
- Seite 11 Dimensions in Inches (Millimeters) Model 35A 2-5/8 (66) 1-3/4 (51) (44) (127) Model 37A 2-5/8 (66) 2-1/8 (51) (54) (127) Model 40A 2-7/8 (73) 4-3/4 2-1/2 (121) 5-1/4 (54) (133)
- Seite 12 All mounting holes must be sealed with a marine grade sealant to prevent water intrusion. Tous les trous de fixation doivent être rendus étanches à l’aide d’unmastic marine pour éviter toute pénétration d’eau. Alle Montagebohrungen müssen mit einem für Marineanwendungen geeigneten Dichtmittel abgedichtet werden, um das Eindringen von Wasser zu verhindern.
- Seite 13 Testing the Float Switch Tester l’interrupteur à flotteur Prüfen des Schwimmerschalters Prova dell’interruttore galleggiante De vlotterschakelaar testen Testa flottörkontakten Prueba del interruptor de flotador...
- Seite 15 – –...
- Seite 16 Always install proper fuse size to prevent damage to product should a short occur. Failure to install proper fuse could increase risk of pump malfunction potentially resulting in personal injury and/or fire hazard. Toujours installer la taille de fusible appropriée pour éviter d’endommager le produit en cas de court-circuit, faute de quoi la pompe pourrait mal fonctionner et entraîner des blessures et/ou des dangers d’incendie.
- Seite 17 Model Voltage Wire Length Guard Wire Size Max. Amps Warranty (years) Modèle Tension Longueur de fil Taille de fil Amp. max. Plaque de protection Garantie (années) Modell Spannung Kabellänge Schutz Kabelstärke Max. Stromaufnahme Garantie (Jahre) Modello Tensione Lunghezza del filo Riparo Dimensione del filo Amp.
- Seite 19 Disconnect power from the system before working on the unit to avoid personal injury, damage to the surrounding environment and/or damage to the unit. Déconnecter la source d’alimentation électrique du système avant d’effectuer toute réparation ou entretien pour éviter les blessures et d’endommager l’environnement alentours et/ou l’unité.
- Seite 20 30°MAX 5°MAX 2" (5.1cm) 3/4" (2cm)
- Seite 22 Switch must be mounted equal to or above the pump base for positive shut-off. L’interrupteur doit être installé au même niveau ou au-dessus de la base de la pompe pour assurer un sectionnement positif. Zum sicheren Schließen muss der Schalter auf der gleichen Ebene oder oberhalb der Pumpenbasis angebracht werden.
- Seite 23 Keep all wire connections above the highest water level. Wires must be joined with butt connectors and a marine grade sealant to prevent wire corrosion. Maintenir tous les raccords électriques au-dessus du niveau d’eau le plus élevé. Les fils doivent être raccordés avec des connecteurs bout à...
- Seite 24 For a copy of the warranty, visit us online at www.rule-industries.com © Copyright 2012 Xylem Inc. 950-0520 Rev. C 4/2012...
